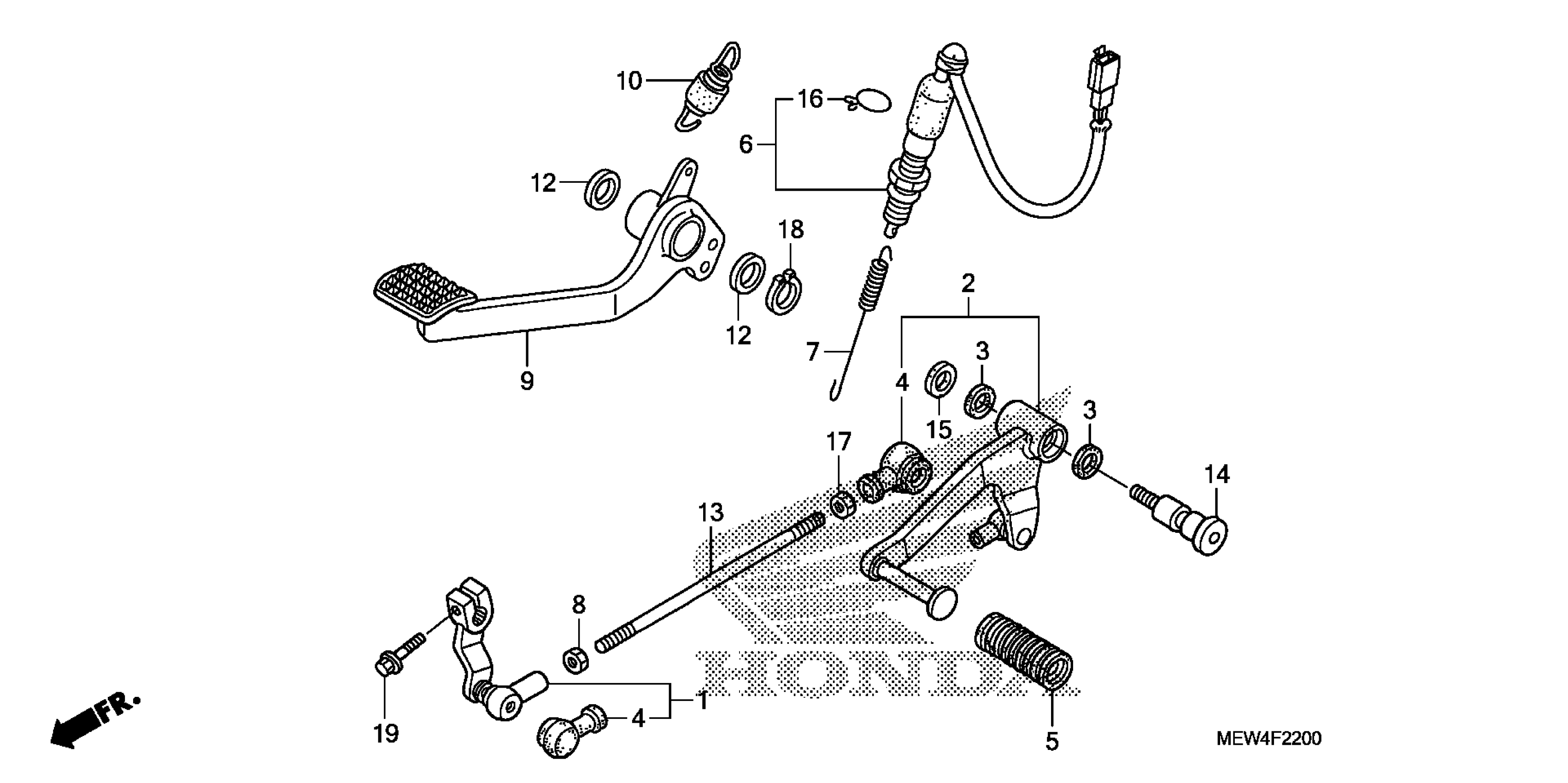

Honda NT700V4AC (10) NT700V, ITA, VIN# ZDCRC591-AF000001 TO ZDCRC591-AF009999 PEDAL Diagram

ARM, GEARSHIFT

24702-MEW-920

$81.62

PEDAL, GEARSHIFT (COO)

24705-MBL-305

$61.21

RUBBER, DUST SEAL

24706-MK3-770

$4.28

COVER, DUST

24724-422-000

$6.37

RUBBER, GEARSHIFT

24781-449-000

$3.31

SWITCH ASSY., RR. STOP This part replaces 35350-MEW-D40.

35350-MEW-D41

$20.76

SWITCH ASSY., RR. STOP

35350-MEW-D41

$20.76

SPRING, STOP SWITCH

35357-KN6-960

$1.49

NUT, HEX. (6MM) (LEFT HAND THREAD)

45423-KA4-700

$1.50

PEDAL, RR. BRAKE (COO)

46500-MEW-305

$55.87

SPRING ASSY., RR. BRAKE RETURN

46511-KZ4-J00

$7.13

PLATE, PILLION STEP SIDE

50715-KE8-000

$4.01

BOLT, TIE ROD

90065-MEW-920

$3.12

BOLT, CHANGE PIVOT

90115-KAF-000

$18.13

WASHER (8.5X20)

90526-GB0-930

$1.90

CLIP, SWITCH COVER

90601-KAF-003

$2.47

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.31

NUT, HEX. (6MM)

94001-06200-0S

$1.31

CIRCLIP (OUTER) (19MM)

94511-19000

$0.87

BOLT, FLANGE (6X22)

96300-06022-00

$1.29
