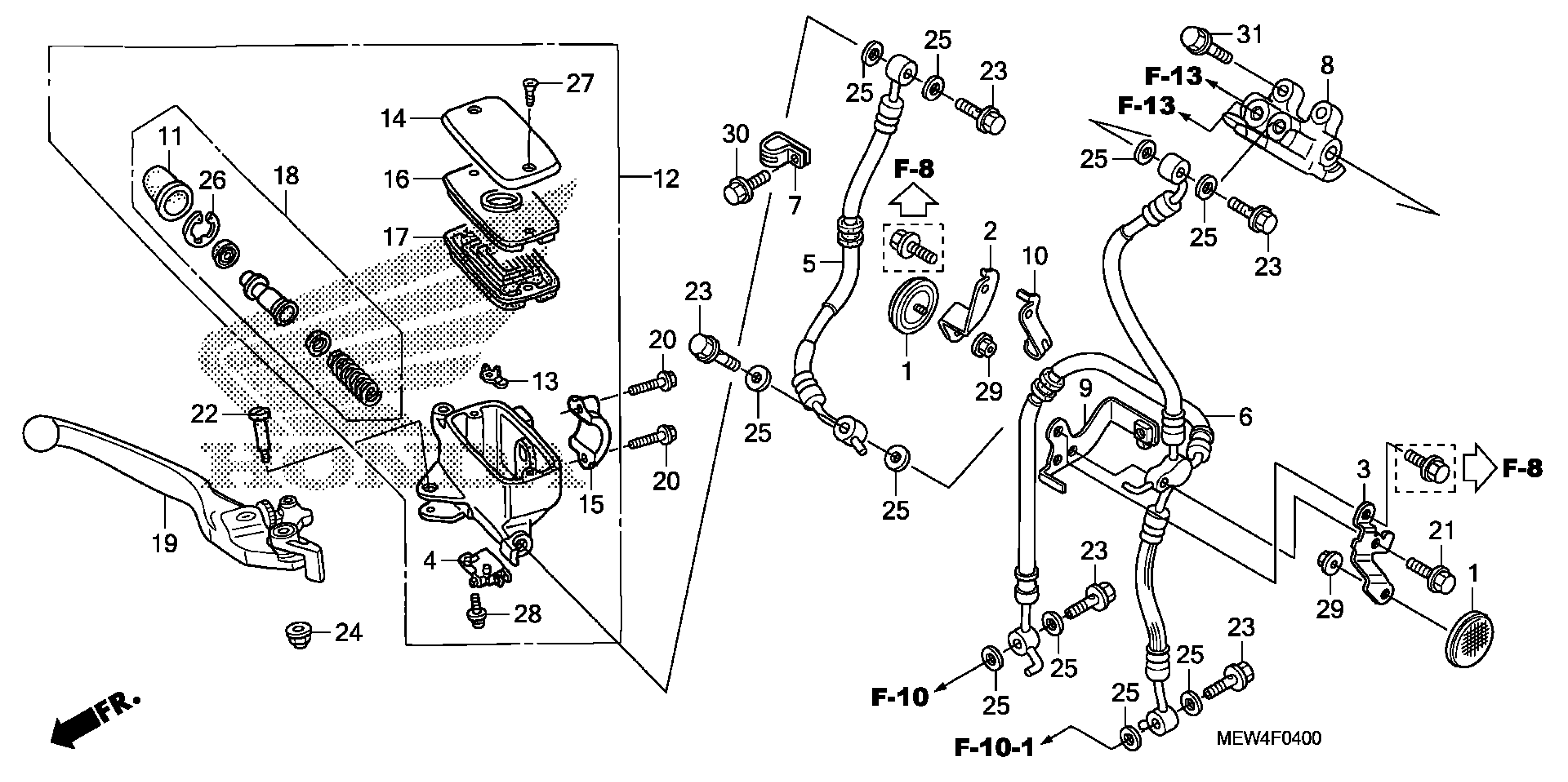

Honda NT700V4AC (10) NT700V, ITA, VIN# ZDCRC591-AF000001 TO ZDCRC591-AF009999 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX (AMBER)

33741-KAK-971

$8.46

2

STAY, R. FR. REFLECTOR

33742-MEW-L00

$8.09

3

STAY, L. FR. REFLECTOR

33743-MEW-L00

$8.40

4

SWITCH ASSY., FR. STOP

35340-MM5-600

$19.72

5

HOSE A, FR. BRAKE MAIN

45124-MEW-921

$22.85

6

HOSE C, FR. BRAKE MAIN

45128-MEW-921

$65.71

7

CLAMP, FR. BRAKE HOSE

45156-MEW-920

Unavailable

8

JOINT, BRAKE HOSE

45157-MEW-921

$46.57

9

STAY, L. FR. BRAKE HOSE

45158-MEW-920

$6.19

10

CLAMP, R. FR. BRAKE HOSE

45159-MEW-920

$4.72

11

BOOT

45504-410-003

$11.17

12

MASTER CYLINDER SUB-ASSY., FR. (COO)

45510-MEW-305

$288.28

13

PROTECTOR

45512-MA6-006

$4.09

14

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$20.57

15

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

16

PLATE, DIAPHRAGM

45518-MM5-006

$9.79

17

DIAPHRAGM

45520-MM5-006

$13.87

18

MASTER CYLINDER SET

45530-471-831

$36.42

19

LEVER ASSY., R. HANDLE (COO)

53170-MEW-305

$51.24

20

BOLT, FLANGE (6X22)

90101-MBZ-G00

$1.32

21

BOLT, FLANGE (6X24) (SH)

90119-MEW-930

$3.00

22

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

Unavailable

23

BOLT, OIL (10X22)

90145-MS9-612

$6.99

24

NUT, CAP (6MM)

90201-415-000

Unavailable

25

WASHER, OIL BOLT

90545-300-000

$5.79

26

CIRCLIP

90651-MA5-671

$2.38

27

SCREW, FLAT (4X12)

93600-04012-0G

$0.90

27

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.90

28

SCREW-WASHER (4X12)

93893-04012-07

$1.32

28

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

29

NUT, U (6MM)

90301-MG3-000

$6.60

30

BOLT, FLANGE (6X12)

96001-06012-07

$1.79

31

BOLT, FLANGE (6X32)

96001-06032-00

$1.29
