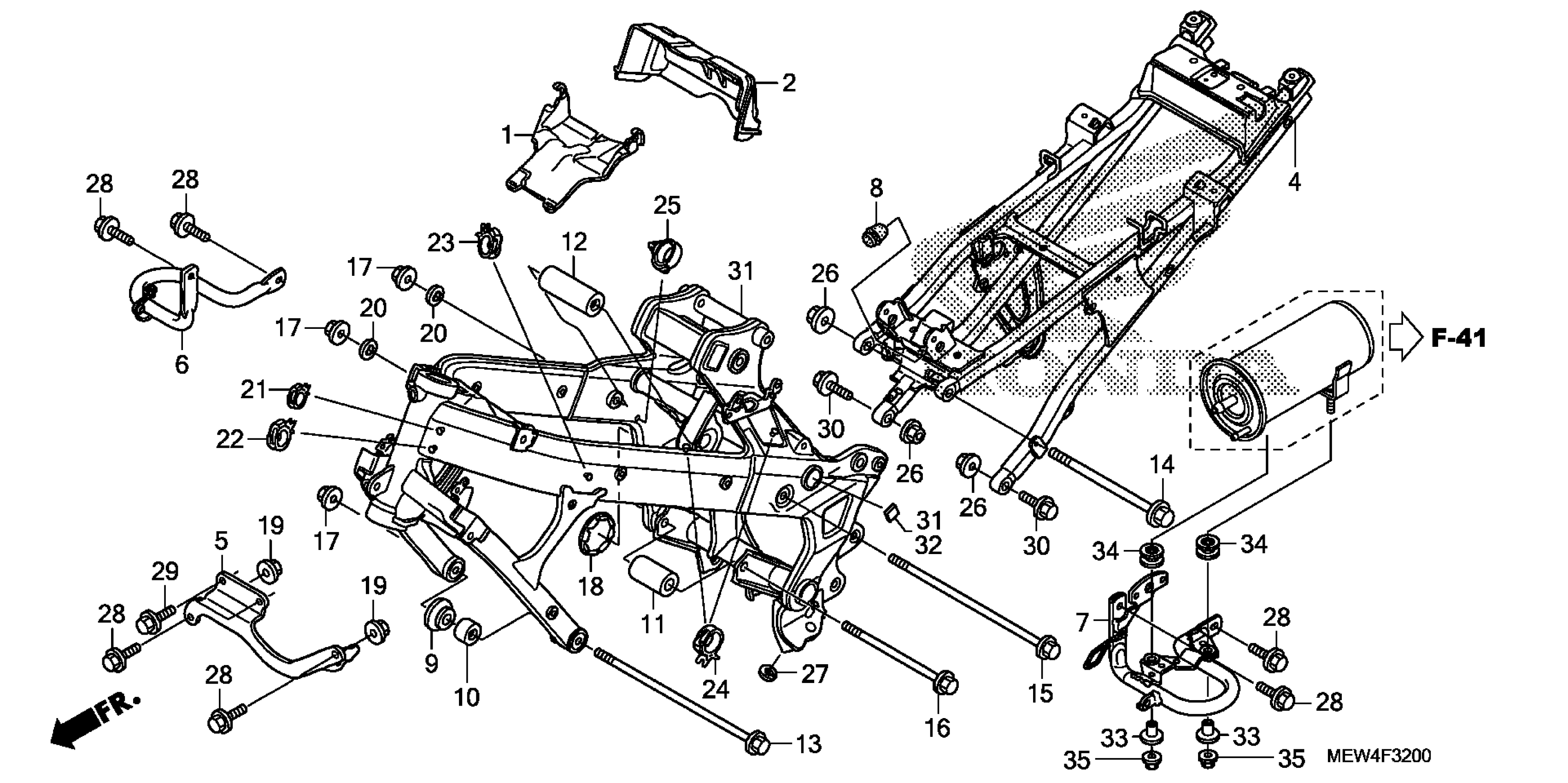

Honda NT700V4AC (10) NT700V, ITA, VIN# ZDCRC591-AF000001 TO ZDCRC591-AF009999 FRAME Diagram

#

Description
Price

1

PLATE, FR. HEAT GUARD

19130-MEW-920

$11.87

2

GUARD, RR. HEAT

19131-MEW-920

$22.46

4

RAIL, SEAT

50200-MEW-920

$423.60

5

PLATE, FR. CROSS

50260-MEW-920

$31.63

6

GUARD, R. ENGINE

50270-MEW-920

$79.26

7

GUARD, L. ENGINE

50280-MEW-L01

$91.13

8

RUBBER, STOPPER

50353-HA7-670

$2.80

9

COLLAR, R. FR. ENGINE HANGER

50353-MBL-610

$6.74

10

COLLAR A, L. ENGINE HANGER

50355-MEW-920

$5.40

11

COLLAR D, ENGINE HANGER

50358-MEW-920

$6.12

12

COLLAR C, L. ENGINE HANGER (24X65)

50359-MEW-920

$7.25

13

BOLT, ENGINE HANGER (10X270)

90102-MN8-000

$18.88

14

BOLT, FLANGE (12X205)

90110-MEW-920

$12.37

15

BOLT, FLANGE (10X265)

90112-MEW-920

$11.49

16

BOLT, FLANGE (10X185)

90118-MEW-920

$11.34

17

NUT, FLANGE (10MM) This part replaces 90204-634-000.

94050-10000

$1.66

17

NUT, FLANGE (10MM) This part replaces 94030-10000-07.

94050-10000

$1.66

17

NUT, FLANGE (10MM)

94050-10000

$1.66

18

CAP, PIVOT

90302-MZ8-G20

$6.84

19

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.19

20

WASHER (10.5X25)

90405-MEW-920

$3.47

21

CLIP, CABLE (15MM)

90690-GHB-651

$2.01

22

CLIP, CABLE (20MM)

90690-GHB-661

$2.01

23

CLIP, CABLE (25MM)

90690-GHB-671

$2.01

24

CLIP, CABLE (30MM)

90690-GHB-681

$2.80

25

CLIP, WIRE HARNESS (BLACK)

91558-SD5-003

Unavailable

26

NUT, FLANGE (12MM)

94050-12000

$0.96

27

E-RING (6MM)

94540-06018

$3.05

28

BOLT, FLANGE (8X20)

96300-08020-00

$1.46

29

BOLT, FLANGE (8X55)

96300-08055-00

$2.21

30

BOLT, FLANGE (12X70) (DR)

96400-12070-00

$2.85

31

FRAME SET

50010-MEW-D40

$1,345.57

32

FASTENER B, DUAL LOCK (20X20)

64243-MEW-920

$2.83

33

COLLAR, SETTING

61104-422-000

$6.60

34

RUBBER B, SIDE SHELTER

64122-KV0-000

$4.31

35

NUT, FLANGE (6MM)

94050-06070

$1.44
