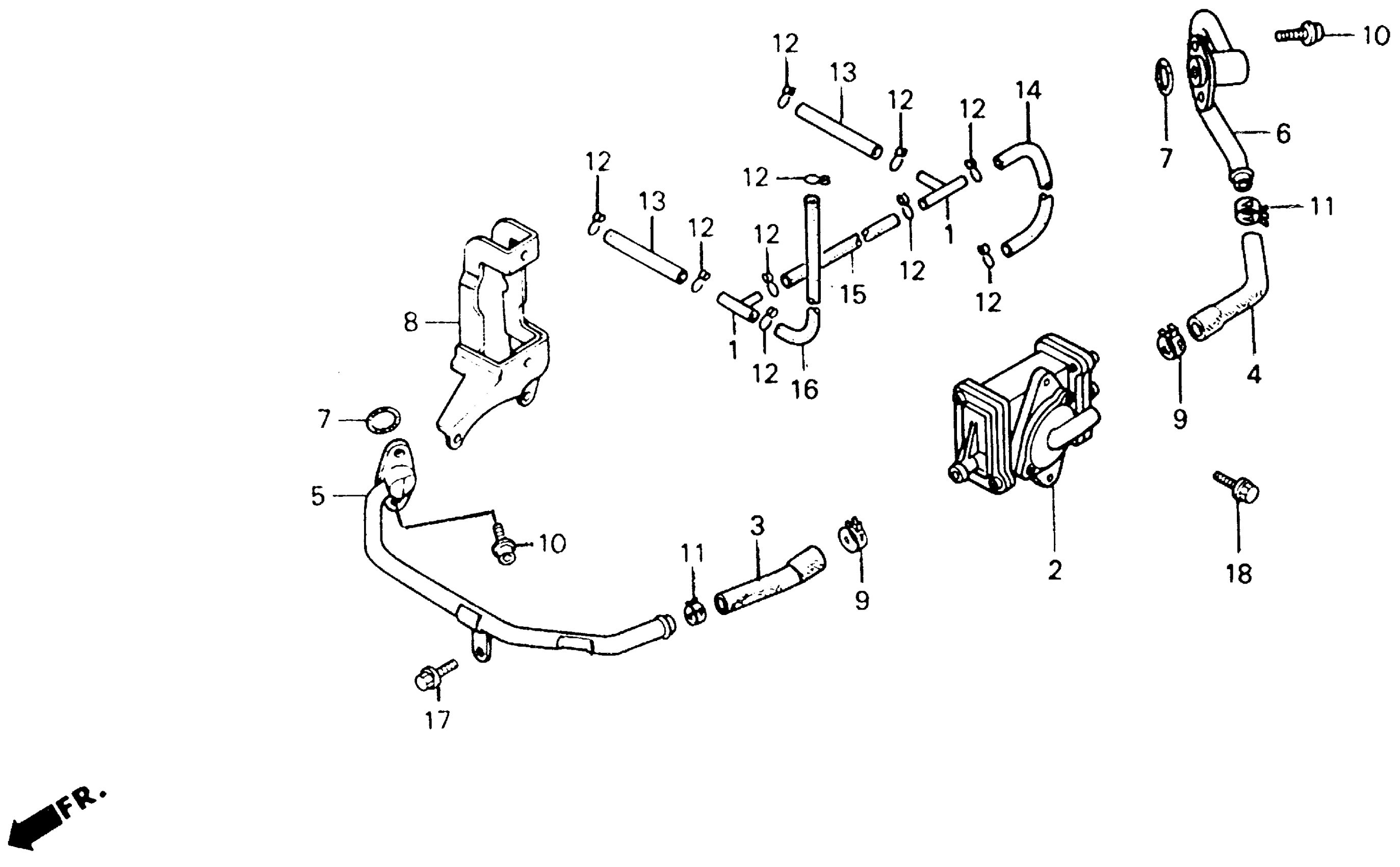

Honda NT650AC (89) MOTORCYCLE, JPN, VIN# JH2RC311-KM100019 AIR SUCTION VALVE Diagram

#

Description
Price

1

JOINT, VACUUM TUBE (A)

17201-MG9-000

$15.94

2

VALVE ASSY., AIR SUCTION (NOT AVAILABLE)

18600-MN8-752

Unavailable

3

TUBE, FR. AIR (NOT AVAILABLE)

18615-MN8-750

Unavailable

4

TUBE, RR. AIR (NOT AVAILABLE)

18616-MN8-750

Unavailable

5

PIPE, FR. AIR PATH (NOT AVAILABLE)

18617-MN8-750

Unavailable

6

PIPE, RR. AIR PATH (SOURCE: VINTAGE PARTS INC.)

18618-MN8-750

Unavailable

7

GASKET, AIR PATH PIPE This part replaces 18621-MF5-860.

18621-MS6-930

$4.08

7

GASKET, AIR PATH PIPE

18621-MS6-930

$4.08

8

BRACKET, AIR SUCTION VALVE (NOT AVAILABLE)

18626-MN8-750

Unavailable

9

CLAMP, MASTER CYLINDER OIL HOSE

43514-445-771

$12.27

10

BOLT, FLANGE SOCKET (6X18) (SOURCE: VINTAGE PARTS INC.)

90072-MF5-860

Unavailable

11

CLAMP, TUBE (D17)

91405-MF5-860

$3.31

12

CLIP, TUBE (B7) CLIP, TUBE (B6.5)

95002-02070

$1.80

13

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

14

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

15

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

16

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

17

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

18

BOLT, FLANGE (6X18)

96001-06018-00

$1.80
