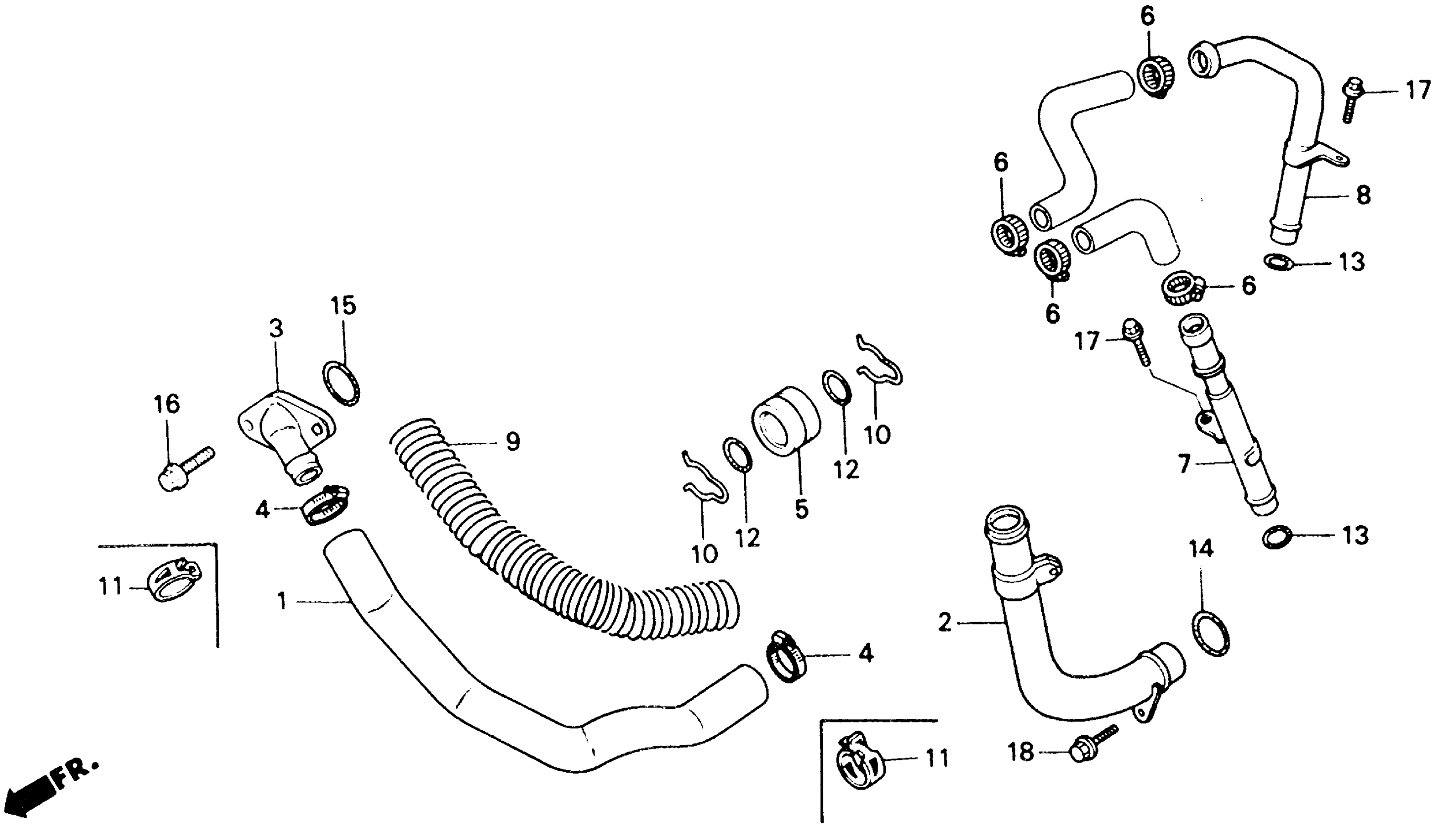

Honda NT650A (90) MOTORCYCLE, JPN, VIN# JH2RC310-LM200001 WATER PIPE Diagram

#

Description

Price

1

HOSE, MAIN WATER

19501-MN8-000

$31.41

2

PIPE, WATER INLET (NOT AVAILABLE)

19502-MN8-000

Unavailable

3

JOINT, WATER HOSE

19503-MR1-000

$44.18

5

JOINT, WATER

19505-MR1-000

Unavailable

6

CLAMP B, WATER HOSE

19506-KS6-700

$7.50

7

PIPE, FR. OUTLET WATER

19511-MN8-740

$19.77

8

PIPE, RR. OUTLET WATER (NOT AVAILABLE)

19512-MN8-740

Unavailable

10

CLIP, RING (18MM)

90601-MR1-000

$3.84

12

O-RING (18X2.6) (ARAI)

91306-KK4-003

$2.92

13

SEAL, WATER PIPE (16MM)

91315-MN8-000

$4.31

14

SEAL, WATER PIPE (28MM) (NOT AVAILABLE)

91316-MN8-000

Unavailable

15

O-RING

91356-169-003

$2.92

16

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55

17

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

18

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
