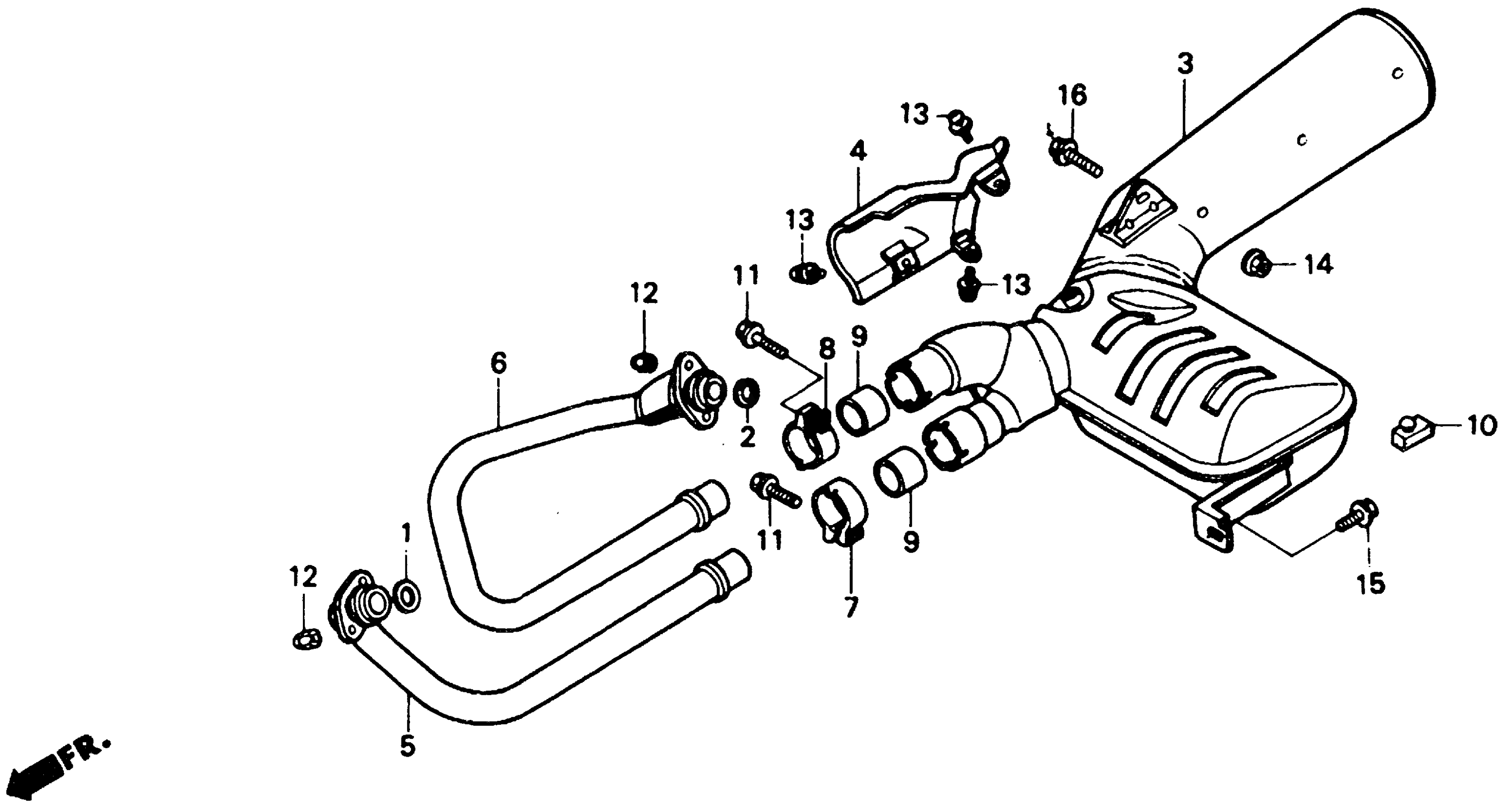

Honda NT650A (90) MOTORCYCLE, JPN, VIN# JH2RC310-LM200001 EXHAUST MUFFLER Diagram

GASKET, EX. PIPE

18291-MM5-860

$5.17

GASKET, EX. PIPE

18291-MN4-920

$5.31

CHAMBER, EX. (NOT AVAILABLE)

18300-MN8-740

Unavailable

COVER, CHAMBER (NOT AVAILABLE)

18315-MN8-700

Unavailable

PIPE, FR. EX. (SOURCE: VINTAGE PARTS INC.)

18320-MN8-003

Unavailable

PIPE, RR. EX. (NOT AVAILABLE)

18370-MN8-003

Unavailable

BAND, L. MUFFLER This part replaces 18373-MG7-701.

18374-KE8-000

$29.26

BAND, L. MUFFLER

18374-KE8-000

$29.26

BAND, R. MUFFLER

18373-KE8-000

$28.64

BAND, R. MUFFLER This part replaces 18374-MG7-701.

18373-KE8-000

$28.64

GASKET, MUFFLER

18392-MK4-000

$13.66

RUBBER, STAND STOPPER

50524-MN8-000

$6.18

BOLT, FLANGE (8X35)

90161-ML7-000

$3.67

NUT, FLANGE CAP (8MM)

90208-438-000

$2.98

SCREW-WASHER (6X10)

93891-06010-00

$1.49

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

BOLT, FLANGE (8X20)

95701-08020-08

$1.62
