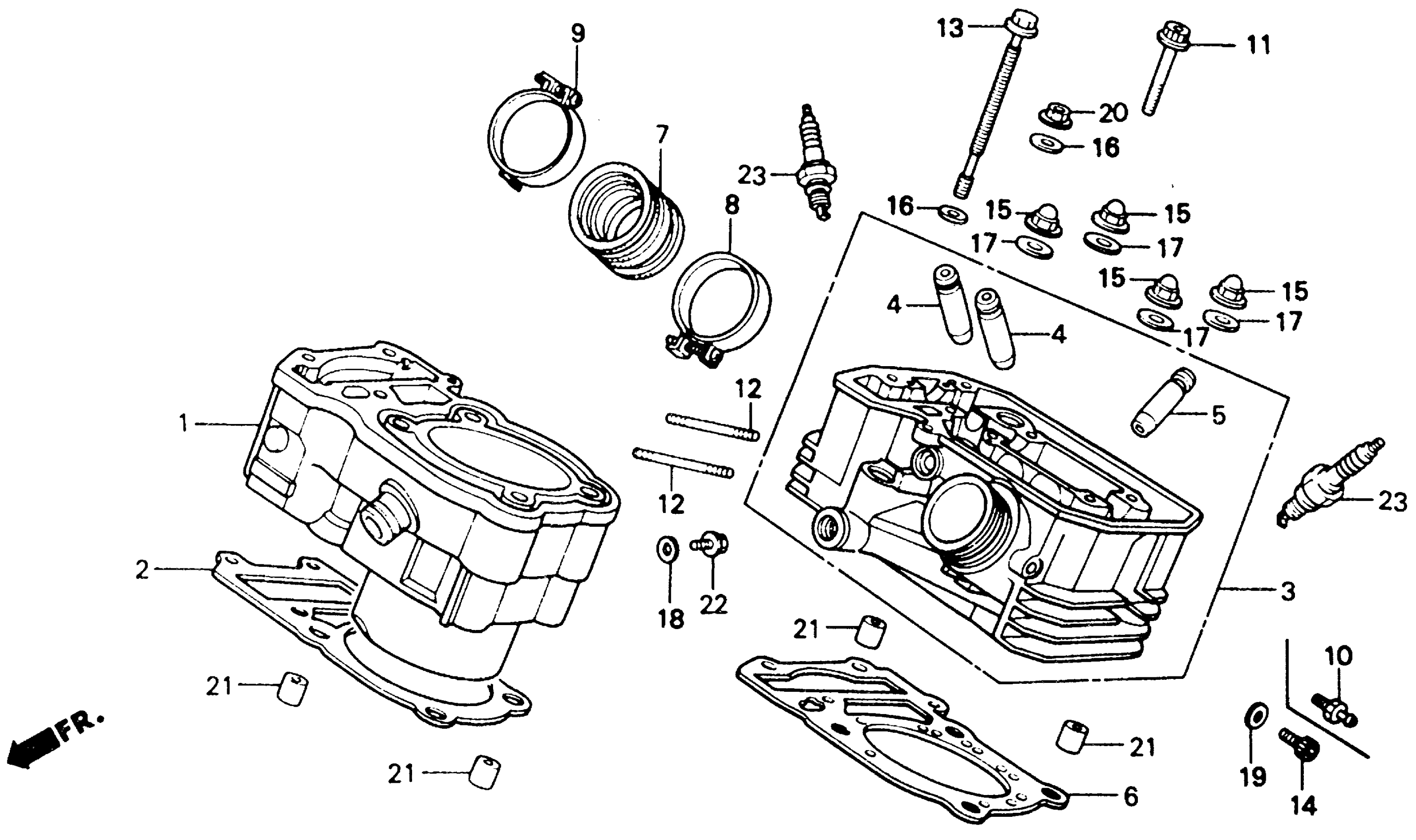

Honda NT650A (90) MOTORCYCLE, JPN, VIN# JH2RC310-LM200001 CYLINDER (RR.) Diagram

CYLINDER, RR. (NOT AVAILABLE) This part replaces 12110-MN8-000.

12110-MN8-010

Unavailable

GASKET, CYLINDER (NOT AVAILABLE)

12191-MN8-003

$15.95

CYLINDER HEAD, RR. (NOT AVAILABLE)

12220-MN8-000

Unavailable

GUIDE, IN. VALVE (OVER SIZE)

12231-MF5-305

$22.36

GUIDE, EX. VALVE (OVER SIZE)

12241-MF5-315

$20.56

GASKET, CYLINDER HEAD This part replaces 12251-MN8-003.

12251-MN8-911

$36.47

GASKET, CYLINDER HEAD

12251-MN8-911

$36.47

INSULATOR, CARBURETOR

16211-MN8-750

$19.12

BAND A, INSULATOR

16218-MN8-750

$9.68

BAND B, INSULATOR (NOT AVAILABLE)

16219-MN8-750

Unavailable

BOLT, SOCKET (6X70) (NOT AVAILABLE) This part replaces 90094-MK4-600.

90012-KN8-730

Unavailable

BOLT, STUD (8X22) (NOT AVAILABLE)

90015-MN8-000

Unavailable

BOLT, CYLINDER (8X187) This part replaces 90081-MM9-003.

90081-MZ8-H01

$10.31

BOLT, CYLINDER (8X187)

90081-MZ8-H01

$10.31

BOLT, SOCKET (5X8) (NOT AVAILABLE)

90089-MN8-000

Unavailable

NUT, FLANGE CAP (10MM)

90202-329-000

$3.67

WASHER (8MM) This part replaces 90401-MR1-000.

90401-MZ8-H00

$2.51

WASHER (8MM)

90401-MZ8-H00

$2.51

WASHER (10MM)

90410-HC4-000

$3.81

WASHER, SEALING (6MM)

90441-706-000

$1.49

WASHER, SEALING (5MM)

90452-323-000

$1.59

NUT, FLANGE (8MM)

94050-08080

$1.49

PIN A, DOWEL (14X20)

94301-14200

$2.28

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.49

SPARK PLUG (DPR7EA-9) (NGK) | (Optional).

98069-57916

$2.62

SPARK PLUG (X22EPR-U9) (DENSO) | (Optional).

98069-57926

$2.54

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.54

SPARK PLUG (DPR9EA-9) (NGK) | (Optional).

98069-59916

$2.62

SPARK PLUG (X27EPR-U9) (DENSO) | (Optional).

98069-59926

$2.54
