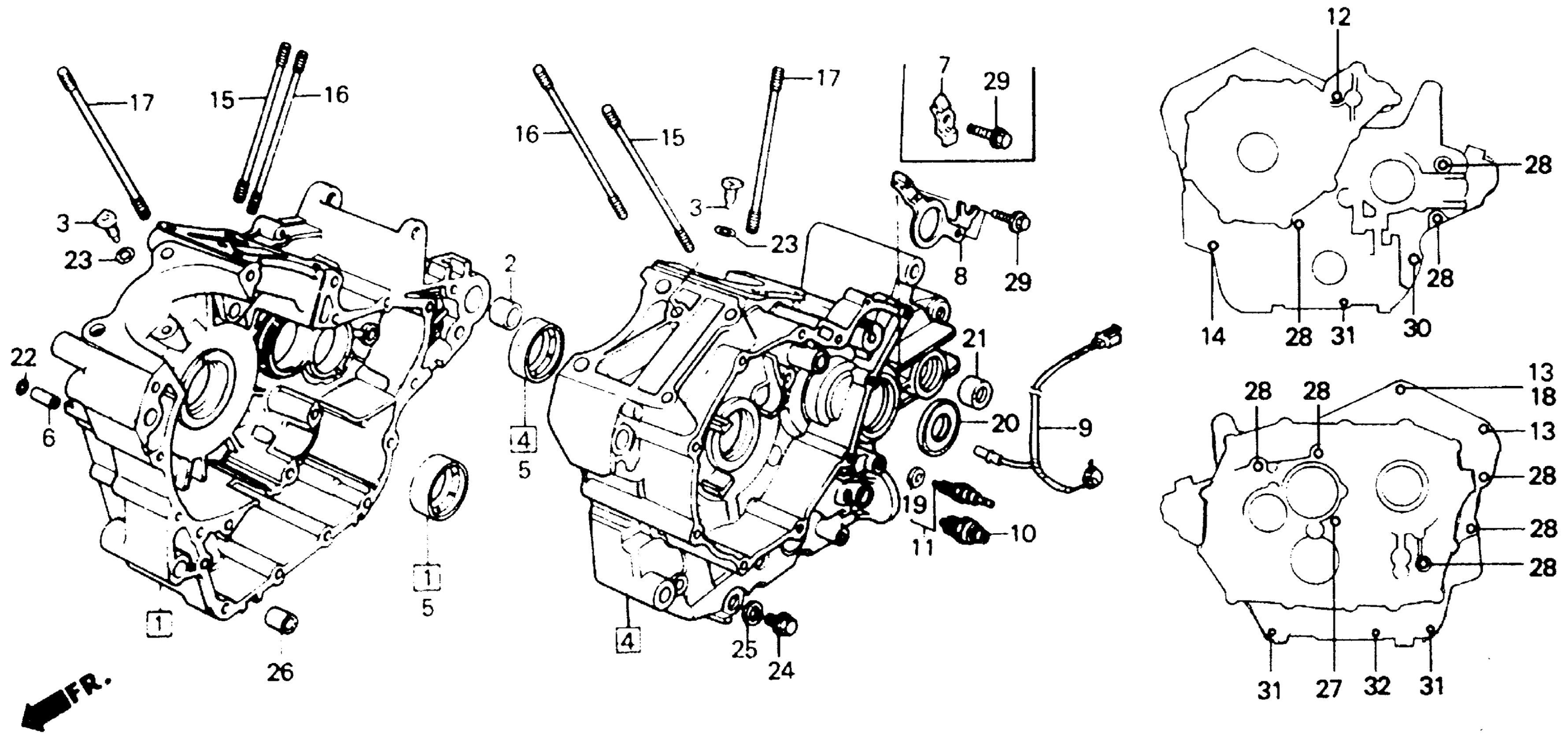

Honda NT650A (90) MOTORCYCLE, JPN, VIN# JH2RC310-LM200001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R. (NOT AVAILABLE)

11100-MN8-020

Unavailable

2

COLLAR (23X20)

11105-MM9-000

$9.11

3

JET, OIL (NOT AVAILABLE)

11146-MN8-000

Unavailable

4

CRANKCASE, L. (NOT AVAILABLE)

11200-MN8-740

Unavailable

5

BEARING A, MAIN (BLUE)

13325-MM9-315

Unavailable

5

BEARING B, MAIN (BLACK)

13326-MM9-315

Unavailable

5

BEARING C, MAIN (BROWN)

13327-MM9-315

Unavailable

6

ORIFICE (1.6) (NOT AVAILABLE)

15515-MM9-000

Unavailable

8

PLATE, OIL SEAL SETTING This part replaces 23531-MR1-770.

23531-MV1-000

$10.10

8

PLATE, OIL SEAL SETTING

23531-MV1-000

$10.10

9

SUB-HARNESS A (NOT AVAILABLE)

32101-MN8-000

Unavailable

10

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ4-014.

35500-MJ4-024

$42.43

10

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

11

SWITCH ASSY., NEUTRAL (TEC)

35600-MAW-601

$23.73

11

SWITCH ASSY., NEUTRAL (TEC) This part replaces 35600-MS9-600.

35600-MAW-601

$23.73

12

BOLT, SOCKET (8X125) (NOT AVAILABLE)

90001-MM9-000

Unavailable

13

BOLT, FLANGE (8X140)

90002-MM9-000

$5.66

14

BOLT, FLANGE (8X70) This part replaces 90008-KE9-000.

95801-08070-00

$1.89

14

BOLT, FLANGE (8X70)

95801-08070-00

$1.89

15

BOLT, STUD (8X197) (NOT AVAILABLE)

90011-MM9-000

Unavailable

16

BOLT, STUD (10X193.5) (SOURCE: VINTAGE PARTS INC.)

90012-MR1-000

Unavailable

17

BOLT, STUD (10X197) (NOT AVAILABLE)

90013-MR1-000

Unavailable

18

WASHER, SEALING (8MM)

90441-ME9-000

$2.61

19

WASHER, NEUTRAL SWITCH

90443-KR0-000

$1.49

20

OIL SEAL (25X45X7) (NOT AVAILABLE)

91201-MM9-003

Unavailable

21

OIL SEAL (12.5X25X8) (ARAI)

91204-425-003

$6.61

22

O-RING (7.7X2.5)

91303-428-003

$1.90

23

O-RING (5X1.7) (ARAI)

91305-MG7-003

$2.92

24

BOLT, DRAIN PLUG (14MM)

92800-14000

$3.67

25

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

26

PIN A, DOWEL (14X20)

94301-14200

$2.28

27

BOLT, FLANGE (8X65)

95701-08065-00

$1.72

28

BOLT, FLANGE (8X80)

95701-08080-00

$1.64

30

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

31

BOLT, FLANGE (6X50) BOLT, FLANGE (6X55)

96001-06050-00

$2.16

32

BOLT, FLANGE (6X80) BOLT, FLANGE (6X50)

96001-06080-00

$2.21
