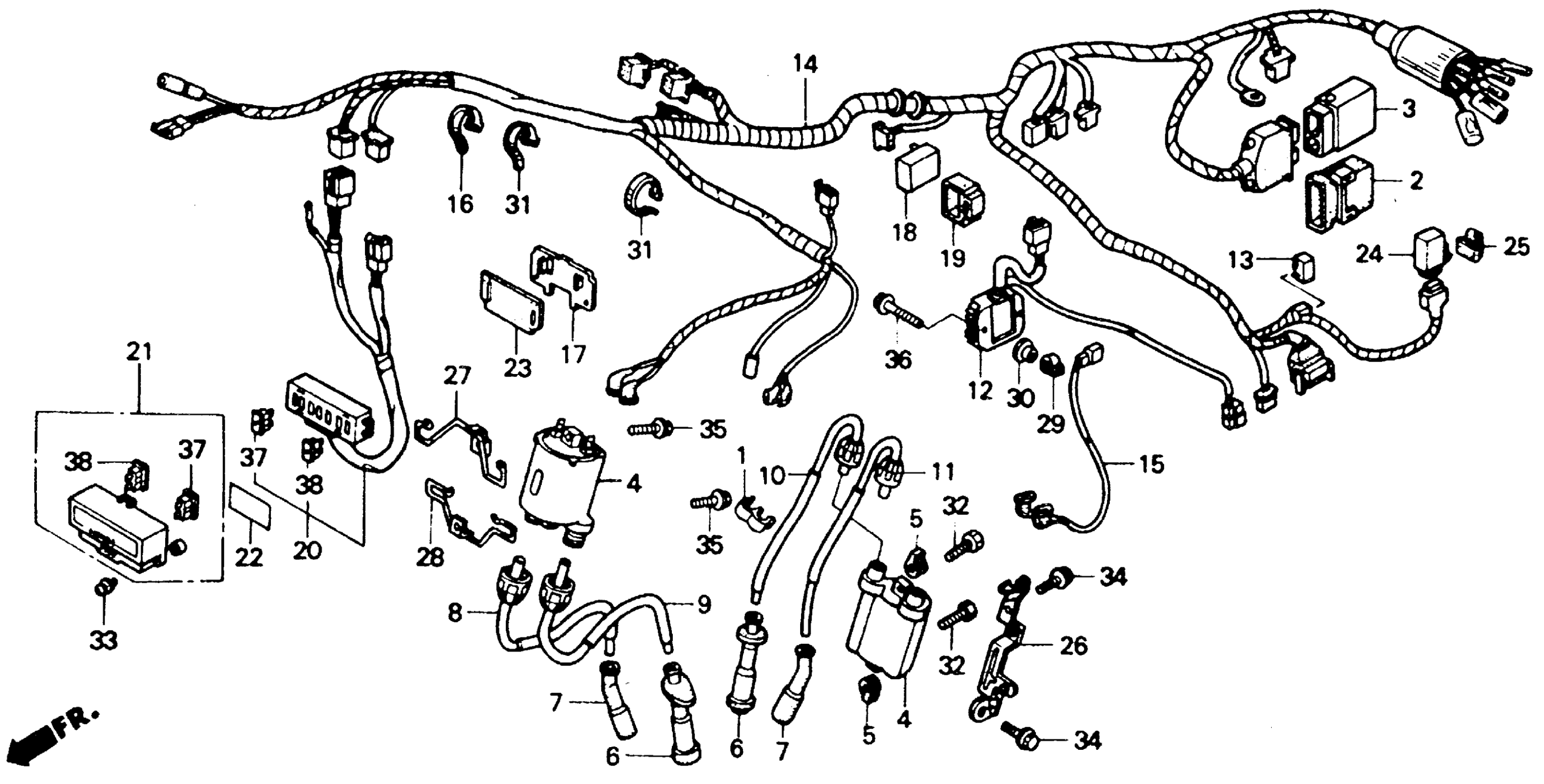

Honda NT650A (89) MOTORCYCLE, JPN, VIN# JH2RC310-KM100011 WIRE HARNESS Diagram

#

Description
Price

1

CLAMP, TUBE (7.5X2)

17205-PC6-000

$8.64

2

SUSPENSION, SPARK UNIT (SOURCE: VINTAGE PARTS INC.) CUSHION, SPARK UNIT

30405-MN4-000

Unavailable

3

MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)

30410-MN8-671

Unavailable

4

COIL, IGNITION (TEC)

30510-MM8-003

$112.08

5

SPACER, IGNITION COIL

30520-ML7-000

$3.77

6

CAP ASSY., NOISE SUPPRESSOR

30701-MF5-000

$36.46

7

CAP ASSY,NOISE(SU This part replaces 30701-MN8-000.

30701-MN8-003

$24.38

7

CAP ASSY,NOISE(SU This part replaces 30701-MN8-010.

30701-MN8-003

$24.38

8

WIRE 1, IGNITION (NOT AVAILABLE)

30751-MN8-740

Unavailable

9

CORD,HIGH/T This part replaces 30752-MN8-670.

30734-MW0-505

Unavailable

10

WIRE 3, IGNITION (NOT AVAILABLE)

30753-MN8-670

Unavailable

11

CORD COMP.H/T This part replaces 30754-MN8-670.

30750-MR1-P00

Unavailable

12

RECTIFIER ASSY., REGULATE (NOT AVAILABLE)

31600-MN8-028

Unavailable

13

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

14

WIRE HARNESS (NOT AVAILABLE)

32100-MN8-740

Unavailable

15

SUB-HARNESS, RR. IGNITION (NOT AVAILABLE)

32110-MN8-000

Unavailable

16

BAND B1, CABLE BAND A1, CABLE

32161-404-000

$2.23

17

BASE, FUSE BOX (NOT AVAILABLE)

32454-MN8-000

Unavailable

18

RELAY, FUEL CUT (SHINDENGEN)

36100-MN4-008

$95.46

19

SUSPENSION, FUEL CUT RELAY

36101-MB1-000

$6.54

20

PLATE ASSY., FUSE (NOT AVAILABLE)

38200-MN8-671

Unavailable

21

COVER, FUSE (NOT AVAILABLE)

38210-MN8-005

Unavailable

22

LABEL, FUSE (NOT AVAILABLE)

38215-MN8-300

Unavailable

23

COVER B, FUSE BOX (SOURCE: VINTAGE PARTS INC.)

38220-MN8-005

Unavailable

24

RELAY, TURN SIGNAL (MITSUBA)

38301-KK9-952

$67.94

25

SUSPENSION, TURN SIGNAL RELAY

38306-GE7-000

$4.74

26

STAY, RR. IGNITION COIL (NOT AVAILABLE)

50331-MN8-000

Unavailable

28

GUIDE, THROTTLE CABLE (NOT AVAILABLE)

50732-MN8-700

Unavailable

29

NUT, CLIP (6MM) (SOURCE: VINTAGE PARTS INC.)

64527-KT8-710

Unavailable

30

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

31

BAND, WIRE HARNESS

90651-MA6-720

$3.73

32

BOLT, HEX. (6X20)

92101-06020-4J

$1.49

33

SCREW-WASHER (5X14)

93891-05014-07

$1.49

34

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

35

BOLT, FLANGE (6X20)

95701-06020-08

$1.49

36

BOLT, FLANGE (6X30)

95701-06030-07

$1.89

37

FUSE, BLADE (10A)

98200-31000

$1.49

38

FUSE, BLADE (15A)

98200-31500

$1.49
