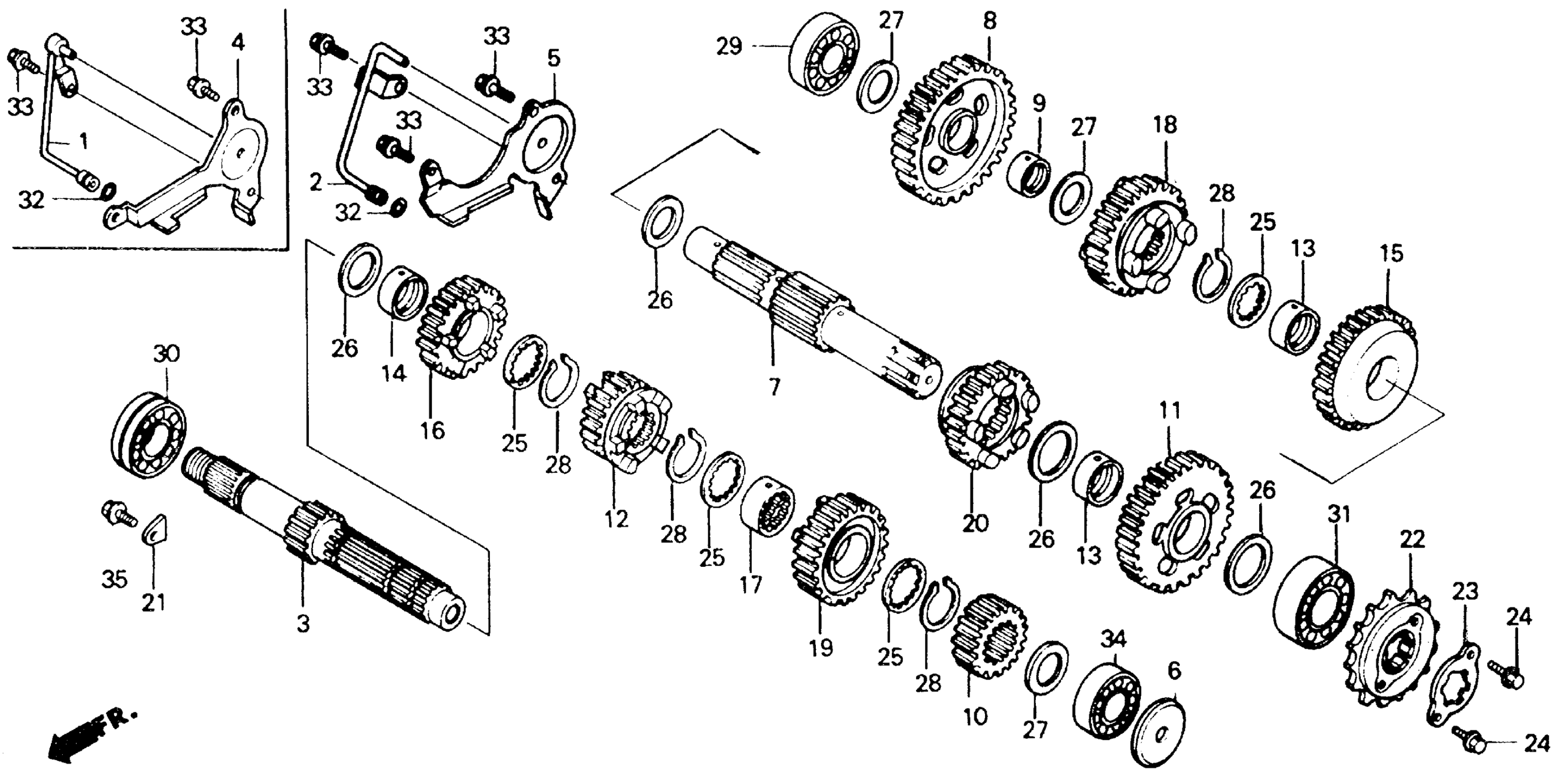

Honda NT650A (89) MOTORCYCLE, JPN, VIN# JH2RC310-KM100011 TRANSMISSION Diagram

#

Description
Price

1

PIPE, TRANSMISSION FEED OIL (NOT AVAILABLE)

15520-MM9-000

Unavailable

3

MAINSHAFT (NOT AVAILABLE)

23210-MN8-670

Unavailable

4

PLATE, BEARING SETTING (SOURCE: VINTAGE PARTS INC.)

23212-MS9-000

Unavailable

6

PLATE, OIL GUIDE

23219-MF5-000

$4.87

7

COUNTERSHAFT (NOT AVAILABLE)

23220-MN8-000

Unavailable

8

GEAR, COUNTERSHAFT LOW (36T) (NOT AVAILABLE)

23421-MS8-000

Unavailable

9

COLLAR (20X11.8)

23422-MB0-010

Unavailable

10

GEAR, MAINSHAFT SECOND (17T) (NOT AVAILABLE)

23431-MN8-000

Unavailable

11

GEAR, COUNTERSHAFT SECOND (32T) (NOT AVAILABLE)

23441-MN8-000

Unavailable

12

GEAR, MAINSHAFT THIRD (20T) (NOT AVAILABLE)

23451-MS8-000

Unavailable

13

BUSH, COUNTERSHAFT THIRD (NOT AVAILABLE)

23455-HA7-670

Unavailable

14

BUSH (25X28X15)

23455-MM9-000

$23.02

15

GEAR, COUNTERSHAFT THIRD (29T) (NOT AVAILABLE)

23461-MS8-010

Unavailable

16

GEAR, MAINSHAFT FOURTH (23T) (NOT AVAILABLE)

23471-MS8-000

Unavailable

17

COLLAR, SPLINE (25X28X15)

23472-MR1-000

$23.28

18

GEAR, COUNTERSHAFT FOURTH (27T) (NOT AVAILABLE)

23481-MS8-000

Unavailable

19

GEAR, MAINSHAFT FIFTH (29T) (NOT AVAILABLE)

23491-MS8-000

Unavailable

20

GEAR, COUNTERSHAFT FIFTH (28T) (NOT AVAILABLE)

23501-MS8-000

Unavailable

21

PLATE, BEARING SETTING (NOT AVAILABLE)

23521-MM9-000

Unavailable

22

SPROCKET, DRIVE (16T)

23801-MN8-000

$63.26

23

PLATE, FIXING

23811-MN8-000

$11.75

24

BOLT, FLANGE (6X12)

90118-958-003

$3.24

25

WASHER, SPLINE (25X31X1.5)

90451-KY2-000

$3.81

26

WASHER, THRUST (25MM)

90456-MA6-000

$2.53

27

WASHER, THRUST (20X1.00)

90454-428-000

$2.53

27

WASHER, THRUST (20X1.00) This part replaces 90554-700-000.

90454-428-000

$2.53

28

CIRCLIP (25MM)

90601-107-000

$3.74

29

BEARING, RADIAL BALL (6204U) This part replaces 91003-MG2-791.

96140-62040-10

$21.84

29

BEARING, RADIAL BALL (6204U) This part replaces 91003-MG2-792.

96140-62040-10

$21.84

29

BEARING, RADIAL BALL (6204U) This part replaces 91003-MK2-680.

96140-62040-10

$21.84

29

BEARING, RADIAL BALL (6204U)

96140-62040-10

$21.84

30

BEARING, RADIAL BALL (63/22) (NOT AVAILABLE) This part replaces 91007-393-003.

91007-438-003

Unavailable

31

BEARING, RADIAL BALL (5205) (NTN)

91014-969-003

$139.89

32

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

33

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

34

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22

35

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62
