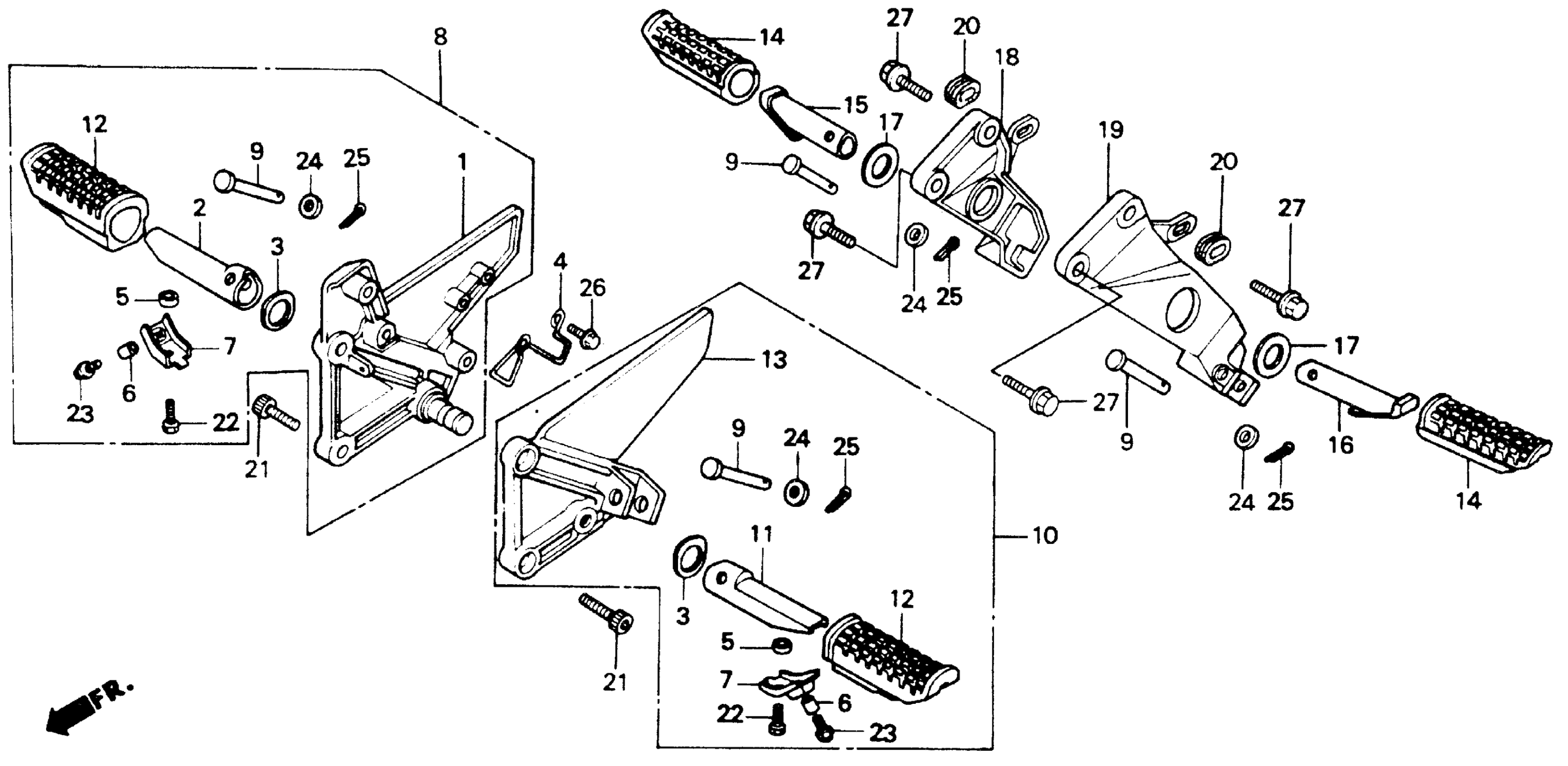

Honda NT650A (89) MOTORCYCLE, JPN, VIN# JH2RC310-KM100011 STEP Diagram

#

Description
Price

1

HOLDER, R. MAIN STEP (NOT AVAILABLE)

50600-MN8-670

Unavailable

2

BAR, R. MAIN STEP

50612-KM3-000

$19.56

3

PLATE, MAIN STEP SIDE

50614-KE8-000

$4.52

4

GUIDE, FOOT (NOT AVAILABLE)

50615-MN8-000

Unavailable

5

COLLAR (6.5X11X3)

50618-KE8-000

$2.75

6

COLLAR (8.3)

50618-MN8-000

$2.91

7

PLATE, MAIN STEP (LOWER) (NOT AVAILABLE)

50619-MJ6-000

Unavailable

8

BAR ASSY., R. MAIN STEP (NOT AVAILABLE)

50630-MN8-670

Unavailable

9

PIN, STEP BAR JOINT (SOURCE: VINTAGE PARTS INC.)

50639-MB2-000

Unavailable

10

BAR ASSY., L. MAIN STEP (NOT AVAILABLE)

50640-MN8-670

Unavailable

11

BAR, L. MAIN STEP

50643-KM3-000

$16.67

12

RUBBER, MAIN STEP

50661-MF2-000

$11.41

13

HOLDER, L. MAIN STEP (NOT AVAILABLE)

50700-MN8-670

Unavailable

14

RUBBER, PILLION STEP

50710-KE8-000

$12.96

15

BAR, R. PILLION STEP (NOT AVAILABLE)

50711-KN6-940

Unavailable

16

BAR, L. PILLION STEP (SOURCE: VINTAGE PARTS INC.)

50712-KN6-940

Unavailable

17

PLATE, PILLION STEP SIDE

50715-KE8-000

$4.32

18

HOLDER, R. PILLION STEP (NOT AVAILABLE)

50750-MN8-740

Unavailable

19

HOLDER, L. PILLION STEP (NOT AVAILABLE)

50760-MN8-740

Unavailable

20

GROMMET, SIDE COVER

83551-MA6-000

$3.35

21

BOLT, SOCKET (8X25)

90102-MN8-700

$3.89

22

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

22

BOLT, HEX. (6X12) This part replaces 92000-06012-0A.

92101-06012-0A

$1.49

22

BOLT, HEX. (6X12) This part replaces 92100-06012.

92101-06012-0A

$1.49

22

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

22

BOLT, HEX. (6X12) BOLT, FLANGE (6X12)

92101-06012-0A

$1.49

23

BOLT, CAP (8X18)

92501-08018-0A

$2.92

24

WASHER, PLAIN (8MM)

94102-08000

$1.49

25

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

25

PIN, COTTER (1.6X25)

94201-16250

$1.49

26

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

27

BOLT, FLANGE (8X28)

95701-08028-00

$1.49
