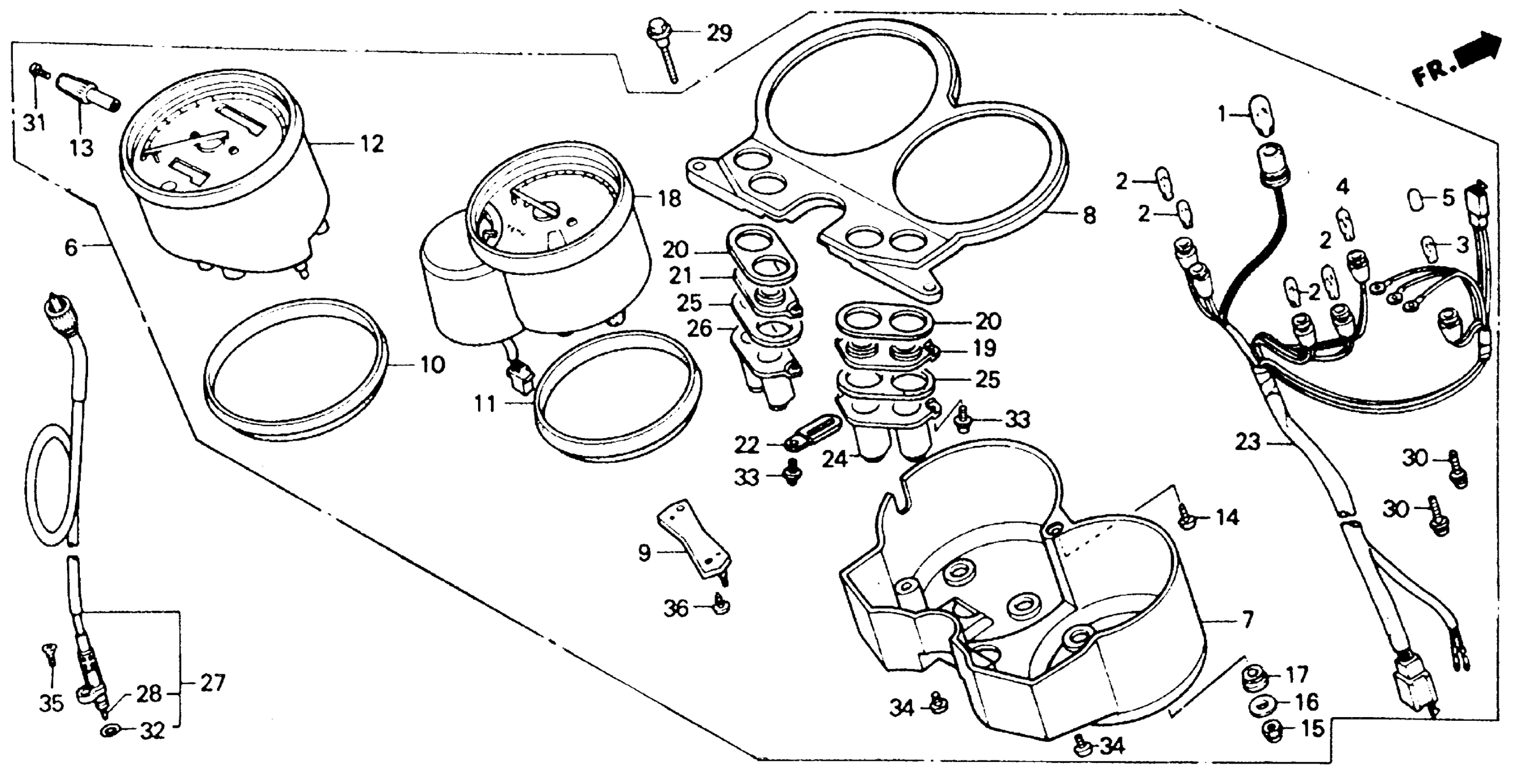

Honda NT650A (89) MOTORCYCLE, JPN, VIN# JH2RC310-KM100011 SPEEDOMETER Diagram

#

Description
Price

1

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) BULB (14V 3.4W) (DENSO)

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

2

BULB, WEDGE BASE (12V3W) (TOSHIBA)

34908-KM1-671

$7.08

3

BULB, WEDGE BASE (12V 1.7W) BULB, WEDGE BASE (12V1.4W)

34908-MG9-951

$2.33

4

BULB, WEDGE BASE (12V 1.7W) BULB, WEDGE BASE (12V1.4W)

34908-MG9-951

$2.33

5

CAP, BULB (T7 BLUE)

34909-MN5-008

$3.13

6

METER ASSY., COMBINATION (NOT AVAILABLE) This part replaces 37100-MN8-671.

37100-MN8-675

Unavailable

7

COVER (LOWER) (NOT AVAILABLE) This part replaces 37110-MN8-000.

37110-MN8-700

Unavailable

8

PANEL (NOT AVAILABLE)

37120-MN8-008

Unavailable

9

BRACKET ASSY. (NOT AVAILABLE) This part replaces 37125-MN8-008.

37125-MS9-611

Unavailable

10

RUBBER, SPEEDOMETER CUSHION

37130-MN8-008

Unavailable

11

RUBBER B, CUSHION (NOT AVAILABLE)

37140-MN8-008

Unavailable

12

SPEEDOMETER (NOT AVAILABLE)

37200-MN8-671

Unavailable

13

KNOB

37220-KR3-671

$11.09

14

SCREW, TRUSS (4X8) (NOT AVAILABLE)

37241-MN8-008

Unavailable

15

NUT, HEX. CAP (4MM)

37242-MN8-008

Unavailable

16

WASHER (SOURCE: VINTAGE PARTS INC.)

37243-MN8-008

Unavailable

17

RUBBER, CUSHION

37244-MN8-008

Unavailable

18

METER SET This part replaces 37250-MN8-008.

04301-MN8-000

Unavailable

19

CASE ASSY., R. PILOT BOX (UPPER) (NOT AVAILABLE) This part replaces 37600-MN8-000.

37600-MN8-008

Unavailable

20

GASKET (2) (SOURCE: VINTAGE PARTS INC.)

37601-MN8-008

Unavailable

21

CASE ASSY., L. PILOT BOX (UPPER) (NOT AVAILABLE) This part replaces 37605-MN8-000.

37605-MN8-008

Unavailable

23

SOCKET (NOT AVAILABLE) This part replaces 37619-MN8-671.

37619-MN8-672

Unavailable

24

CASE, R. PILOT BOX (LOWER) (NOT AVAILABLE) This part replaces 37650-MN8-000.

37650-MN8-008

Unavailable

25

GASKET (1) (NOT AVAILABLE)

37651-MN8-008

Unavailable

26

CASE, L. PILOT BOX (LOWER) (NOT AVAILABLE) This part replaces 37655-MN8-000.

37655-MN8-008

Unavailable

27

CABLE ASSY., SPEEDOMETER (NOT AVAILABLE)

44830-MN8-010

Unavailable

28

CABLE (INNER) (NOT AVAILABLE)

44831-MN8-300

Unavailable

29

BOLT, FLANGE (6X20) (NSHF)

90005-GHB-650

$4.59

29

BOLT, FLANGE (6X20) (NSHF) This part replaces 90051-KS7-700.

90005-GHB-650

$4.59

30

SCREW-WASHER (3X10)

90108-GN2-008

$2.41

31

SCREW, PAN (2X6)

90158-KM7-911

$1.92

32

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

32

O-RING (6.8X1.9) O-RING B (6.8X1.9)

91306-PJ4-000

$3.01

32

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

33

SCREW, PAN (4X10) SCREW, PAN (4X12)

93500-04010-0A

$1.49

33

SCREW, PAN (4X10) This part replaces 93500-04010-1A.

93500-04010-0A

$1.49

34

SCREW, PAN (4X16) This part replaces 93500-04016-1G.

93500-04016-0B

$1.01

35

SCREW, OVAL (5X20)

93700-05020-0G

$1.49

36

SCREW, TAPPING (4X16)

93901-24410

$1.49
