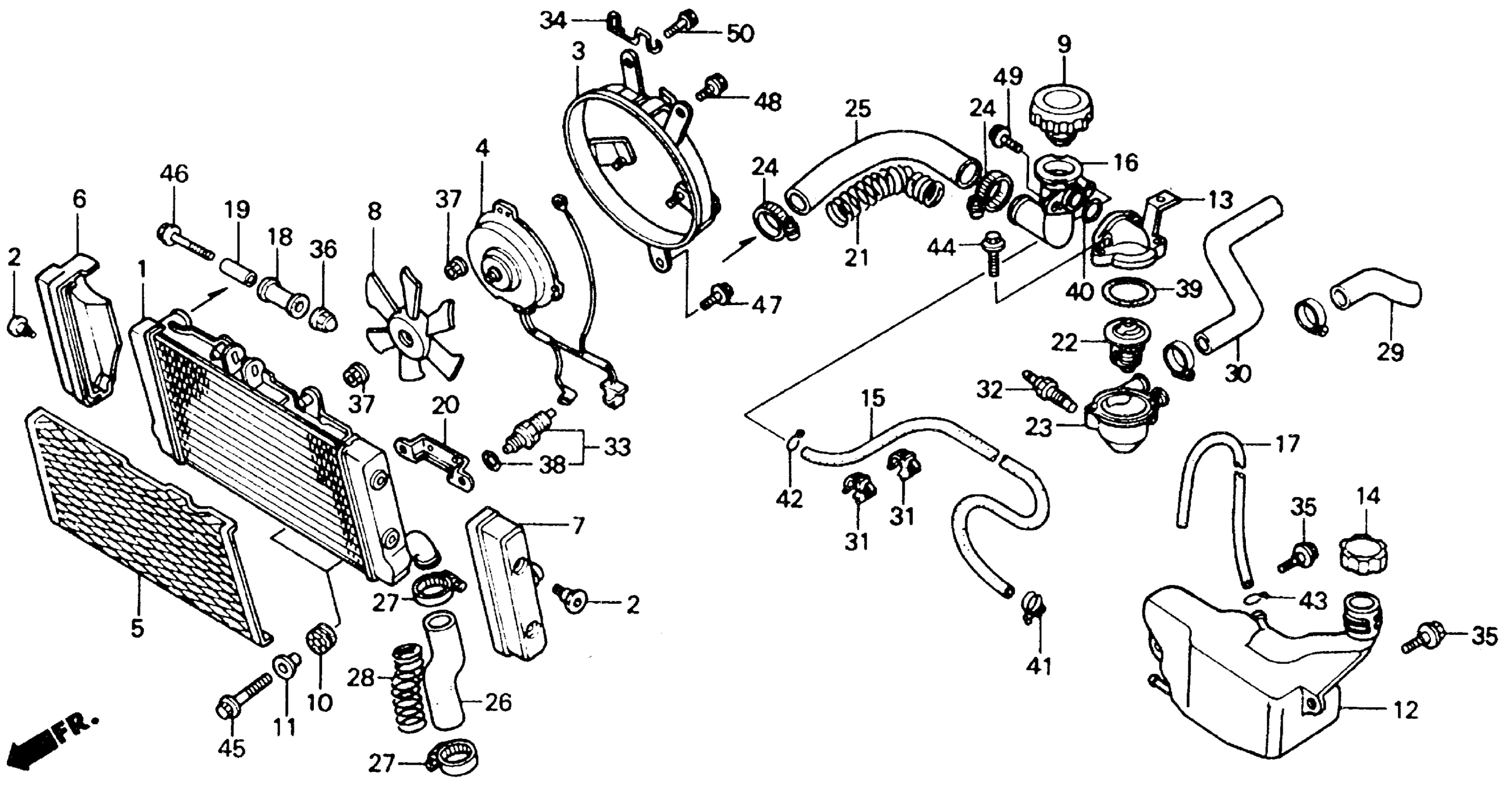

Honda NT650A (89) MOTORCYCLE, JPN, VIN# JH2RC310-KM100011 RADIATOR Diagram

#

Description
Price

1

RADIATOR (TOYO) (NOT AVAILABLE)

19010-MN8-003

Unavailable

2

BOLT, RADIATOR COVER (SOURCE: VINTAGE PARTS INC.)

19011-MN8-000

Unavailable

3

SHROUD (TOYO) (NOT AVAILABLE)

19015-MN8-003

Unavailable

4

MOTOR ASSY., FAN (NOT AVAILABLE) This part replaces 19030-MN8-000.

19030-MN8-010

Unavailable

5

GRILLE, RADIATOR (NOT AVAILABLE)

19032-MN8-000

Unavailable

6

COVER, R. RADIATOR (NOT AVAILABLE)

19033-MN8-000

Unavailable

7

COVER, L. RADIATOR (NOT AVAILABLE)

19035-MN8-000

Unavailable

8

FAN, COOLING (TOYO)

19040-MF5-751

$58.41

9

CAP, RADIATOR

19045-MY3-621

$37.14

9

CAP, RADIATOR This part replaces 19045-MR1-771.

19045-MY3-621

$37.14

10

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.16

11

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.29

11

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.29

12

TANK, RESERVE (NOT AVAILABLE)

19101-MN8-000

Unavailable

13

CAP, THERMOSTAT (NOT AVAILABLE)

19103-MN8-000

Unavailable

14

CAP, RESERVE TANK

19104-ME9-000

$14.16

15

TUBE, RADIATOR RESERVE TANK (NOT AVAILABLE)

19105-MN8-000

Unavailable

16

NECK, FILLER (NOT AVAILABLE)

19106-MN8-000

Unavailable

17

TUBE, OVERFLOW (NOT AVAILABLE)

19107-MN8-000

Unavailable

18

RUBBER, RADIATOR MOUNTING (NOT AVAILABLE)

19113-KM4-000

Unavailable

19

COLLAR, RADIATOR MOUNTING (NOT AVAILABLE)

19114-KM4-000

Unavailable

20

STAY, RADIATOR (LOWER) (NOT AVAILABLE)

19115-MN8-000

Unavailable

21

GUARD, RADIATOR HOSE (LOWER)

19120-MM8-000

Unavailable

22

THERMOSTAT ASSY.

19300-KE8-000

$56.87

23

CASE, THERMOSTAT This part replaces 19311-MN8-000.

19311-MZ6-730

Unavailable

24

CLAMP, HOSE (24-32MM) This part replaces 19503-ML0-003.

19516-ML7-691

$13.22

24

CLAMP, HOSE (24-32MM)

19516-ML7-691

$13.22

25

HOSE A, WATER (NOT AVAILABLE)

19505-MN8-000

Unavailable

26

HOSE, RADIATOR (LOWER) (NOT AVAILABLE)

19506-MN8-000

Unavailable

27

CLAMP, R. RADIATOR HOSE

19509-MM5-003

$12.46

28

PROTECTOR, RADIATOR HOSE (NOT AVAILABLE)

19515-MN8-000

Unavailable

29

HOSE A, OUTLET WATER (NOT AVAILABLE) | Use up to Frame SN KM101880. This part replaces 19521-MN8-000.

19521-MN8-740

Unavailable

29

HOSE A, OUTLET WATER (NOT AVAILABLE) | Use from Frame SN KM101881.

19521-MN8-740

Unavailable

30

HOSE B, OUTLET WATER (NOT AVAILABLE)

19522-MN8-000

Unavailable

31

CLIP B, HARNESS

32172-GJ1-003

$3.62

32

SENDING UNIT, WATER TEMPERATURE (DENSO)

37750-PC1-004

$74.92

33

SWITCH ASSY., THERMO

37760-MR1-003

$66.01

34

GUIDE, HARNESS (NOT AVAILABLE)

50733-MN8-700

Unavailable

35

BOLT, FLANGE (6MM)

90111-162-000

$2.66

36

NUT, CAP (L. SIDE ONLY)

90201-428-900

$2.06

37

NUT, SERRATE (5MM)

90315-MK3-003

$2.15

38

O-RING (13.5X1.4)

91307-PH7-660

$2.80

38

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.80

39

O-RING (47.5X2)

91311-KE8-000

$2.21

40

O-RING (23X2.4)

94608-30000

$1.10

41

CLIP, TUBE (A14) (NOT AVAILABLE)

95002-01140

Unavailable

42

CLIP, TUBE (B12)

95002-02120

$1.79

43

CLIP, TUBE (C11)

95002-70000

$1.51

44

BOLT, FLANGE (6X20)

95701-06020-07

$1.50

45

BOLT, FLANGE (6X28)

95701-06028-07

$1.04

46

BOLT, FLANGE (6X40)

95701-06040-07

$1.74

47

BOLT, FLANGE (6X10)

96001-06010-00

$1.50

49

BOLT, FLANGE (6X14)

96001-06014-00

$1.66
