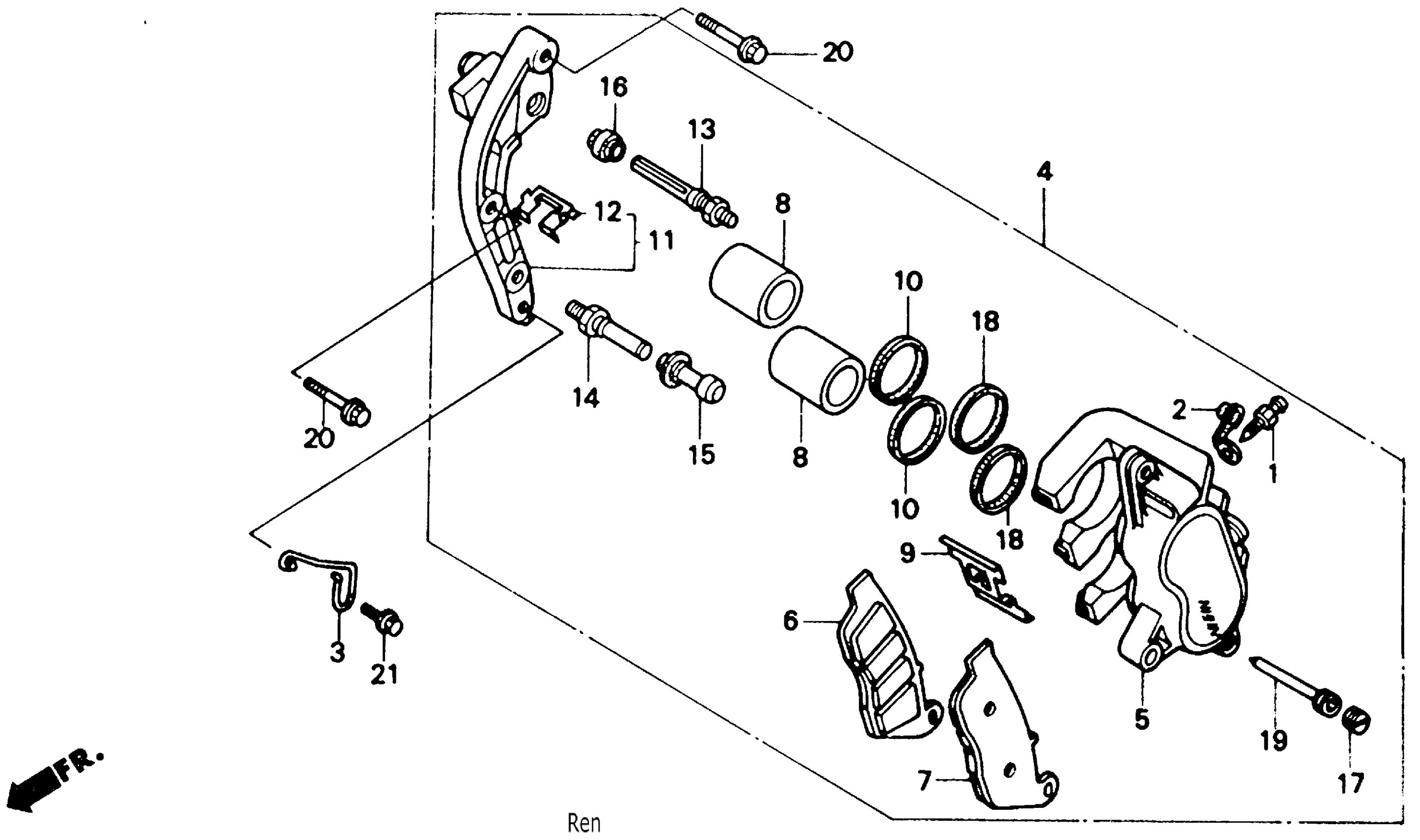

Honda NT650A (89) MOTORCYCLE, JPN, VIN# JH2RC310-KM100011 FRONT BRAKE CALIPER Diagram

#

Description
Price

NI

BRAKE PAD KIT (SOURCE: VINTAGE PARTS INC.)

451A0-MN8-670

Unavailable

1

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

2

CAP, BLEEDER

43353-461-771

$5.05

3

CLAMP, SPEEDOMETER CABLE

44832-ME2-000

$9.67

4

CALIPER ASSY., L. FR. (NISSIN) (NOT AVAILABLE) This part replaces 45100-MN8-671.

45100-MN8-672

Unavailable

5

BODY, L. FR. CALIPER (NISSIN) (NOT AVAILABLE)

45101-MN8-671

Unavailable

6

PAD A, A (NISSIN) (SEE KIT P/N--END OF BLOCK)

45105-MN8-671

Unavailable

7

PAD B, B (NISSIN) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45106-MN8-671

Unavailable

8

PISTON This part replaces 45107-ML7-691.

45107-ML7-692

Unavailable

9

SPRING, PAD (NISSIN) This part replaces 45108-ML7-921.

45108-ML7-922

$6.19

9

SPRING, PAD (NISSIN)

45108-ML7-922

$6.19

10

DUST SEAL

45109-166-006

$6.41

11

BRACKET, L. FR. (NISSIN) (NOT AVAILABLE)

45110-KY2-006

Unavailable

12

RETAINER

45112-ML7-921

$5.46

13

BOLT A, PIN (NISSIN)

45131-ML7-921

$15.44

14

BOLT, PIN

45131-166-016

$7.63

15

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

16

BOOT B

45133-MA3-006

$5.46

17

PLUG, PIN This part replaces 45203-MG3-006.

45203-MG3-016

$5.12

17

PLUG, PIN

45203-MG3-016

$5.12

18

SEAL, PISTON

45209-166-006

$8.64

19

PIN, HANGER This part replaces 45215-ML7-921.

45215-ML7-922

$10.67

19

PIN, HANGER (NISSIN)

45215-ML7-922

$10.67

20

BOLT, SPECIAL FLANGE (8X32)

90123-MR1-000

$4.87

21

BOLT, FLANGE (6X12)

90154-ML0-000

$2.56
