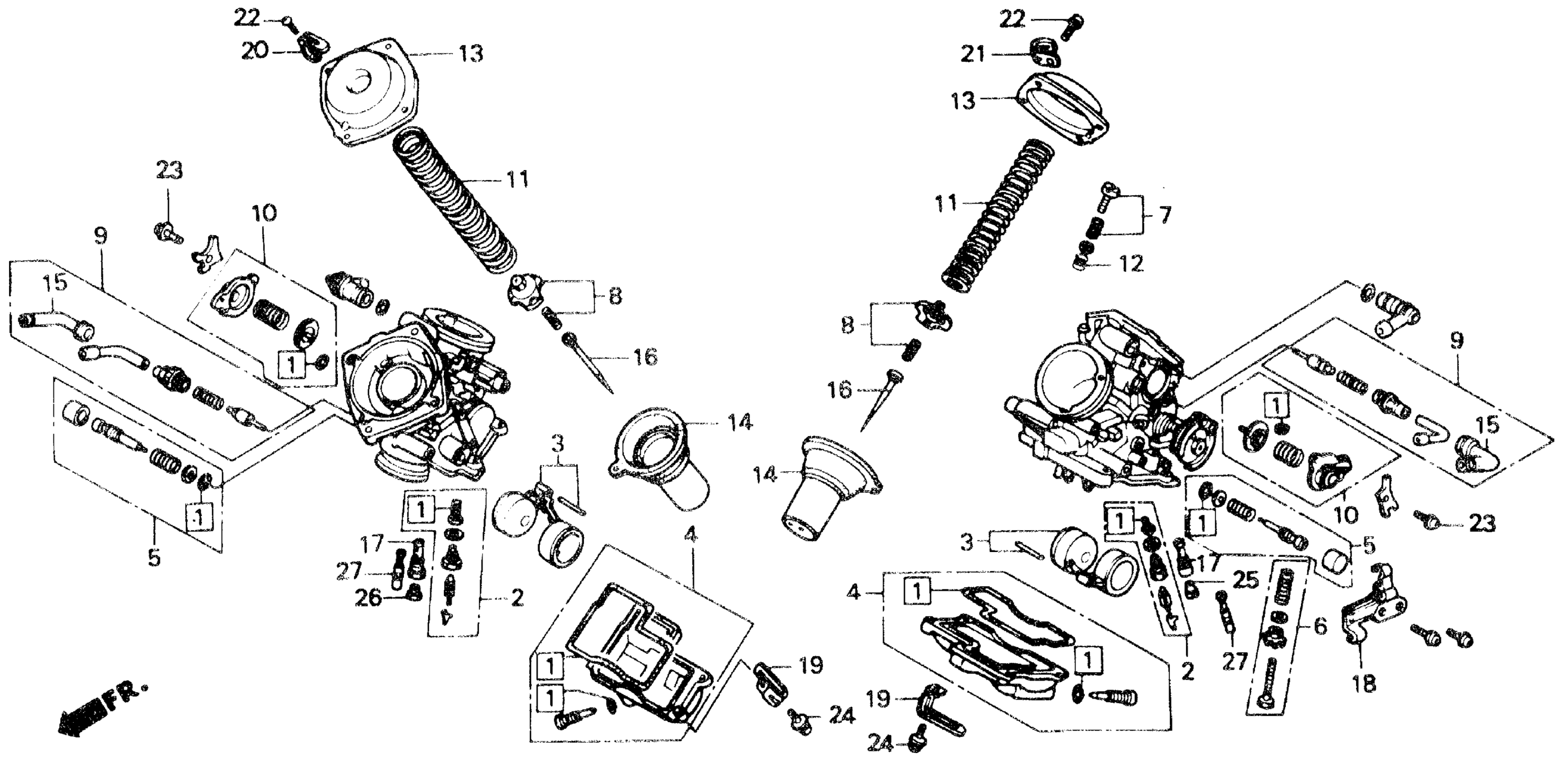

Honda NT650A (89) MOTORCYCLE, JPN, VIN# JH2RC310-KM100011 CARBURETOR (COMPONENTS) Diagram

#

Description
Price

1

GASKET SET | Use up to Engine SN VDGKA B. This part replaces 16010-MM9-621.

16010-MR1-691

$62.84

1

GASKET SET | Use from Engine SN VDGKA C. Use up to Engine SN VDGKA B.

16010-MR1-691

$62.84

2

VALVE SET, FLOAT

16011-MR6-671

$63.64

3

FLOAT SET

16013-MAH-000

$49.54

3

FLOAT SET This part replaces 16013-ML7-004.

16013-MAH-000

$49.54

4

CHAMBER SET, FLOAT | Use up to Engine SN VDGKA B. This part replaces 16015-MN8-004.

16015-MBL-731

Unavailable

4

CHAMBER SET, FLOAT | Use from Engine SN VDGKA C. Use up to Engine SN VDGKA B.

16015-MBL-731

Unavailable

4

CHAMBER SET, FLOAT | Use from Engine SN VDGKA C. Use up to Engine SN VDGKA B. This part replaces 16015-MN8-014.

16015-MBL-731

Unavailable

4

CHAMBER SET, FLOAT | Use from Engine SN VDGKA C. Use up to Engine SN VDGKA B. This part replaces 16015-MZ8-B40.

16015-MBL-731

Unavailable

5

SCREW SET (NOT AVAILABLE)

16016-MN8-671

Unavailable

6

SCREW SET B (NOT AVAILABLE)

16028-ML7-004

Unavailable

7

SCREW SET C

16029-KEJ-900

Unavailable

7

SCREW SET This part replaces 16029-KE8-004.

16029-KEJ-900

Unavailable

7

SCREW SET This part replaces 16029-MN4-003.

16029-KEJ-900

Unavailable

8

PLATE SET, VALVE

16037-MAK-000

$17.18

8

PLATE SET, VALVE This part replaces 16037-MN9-004.

16037-MAK-000

$17.18

8

PLATE SET, VALVE This part replaces 16037-MN8-004.

16037-MAK-000

$17.18

9

VALVE SET, STARTER This part replaces 16046-MN8-004.

16046-MZ6-730

$62.40

9

VALVE SET, STARTER

16046-MZ6-730

$62.40

10

VALVE SET, AIR CUT This part replaces 16048-MR1-004.

16048-MR1-305

Unavailable

11

SPRING, RR. VACUUM PISTON (NOT AVAILABLE)

16051-MB4-671

Unavailable

12

SPRING

16052-ME9-672

$5.67

13

TOP

16107-MM8-004

Unavailable

14

PISTON, VACUUM (NOT AVAILABLE)

16111-MN8-752

Unavailable

15

CAP, CABLE SEALING

16118-ME9-671

$14.18

16

NEEDLE, JET This part replaces 16151-MN8-751.

16151-MN8-671

Unavailable

17

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-MN8-671

Unavailable

18

STAY, WIRE

16169-MM9-621

Unavailable

19

CLIP, PLATE

16179-ME9-751

$10.15

20

CLIP, PLATE This part replaces 16179-ML4-651.

17191-MN5-740

Unavailable

20

CLIP, PLATE

17191-MN5-740

Unavailable

22

SCREW, PAN (4X10) SCREW, PAN (4X12)

93500-04010-0A

$1.49

23

SCREW-WASHER (4X12)

93892-04012-00

$1.49

24

SCREW-WASHER (4X16)

93892-04016-00

$1.49

25

JET, MAIN (#132) This part replaces 99101-GHB-1320.

99101-KAS-1320

$10.85

25

JET, MAIN (#132)

99101-KAS-1320

$10.85

25

JET, MAIN (#132) This part replaces 99101-393-1320.

99101-KAS-1320

$10.85

26

JET, MAIN (#138) This part replaces 99101-GHB-1380.

99101-KPE-1380

$12.72

26

JET, MAIN (#138)

99101-KPE-1380

$12.72

26

JET, MAIN (#138) This part replaces 99101-393-1380.

99101-KPE-1380

$12.72

27

JET, SLOW (#42)

99103-MV9-0420

$20.89

27

JET, SLOW (#42) This part replaces 99103-437-0420.

99103-MV9-0420

$20.89
