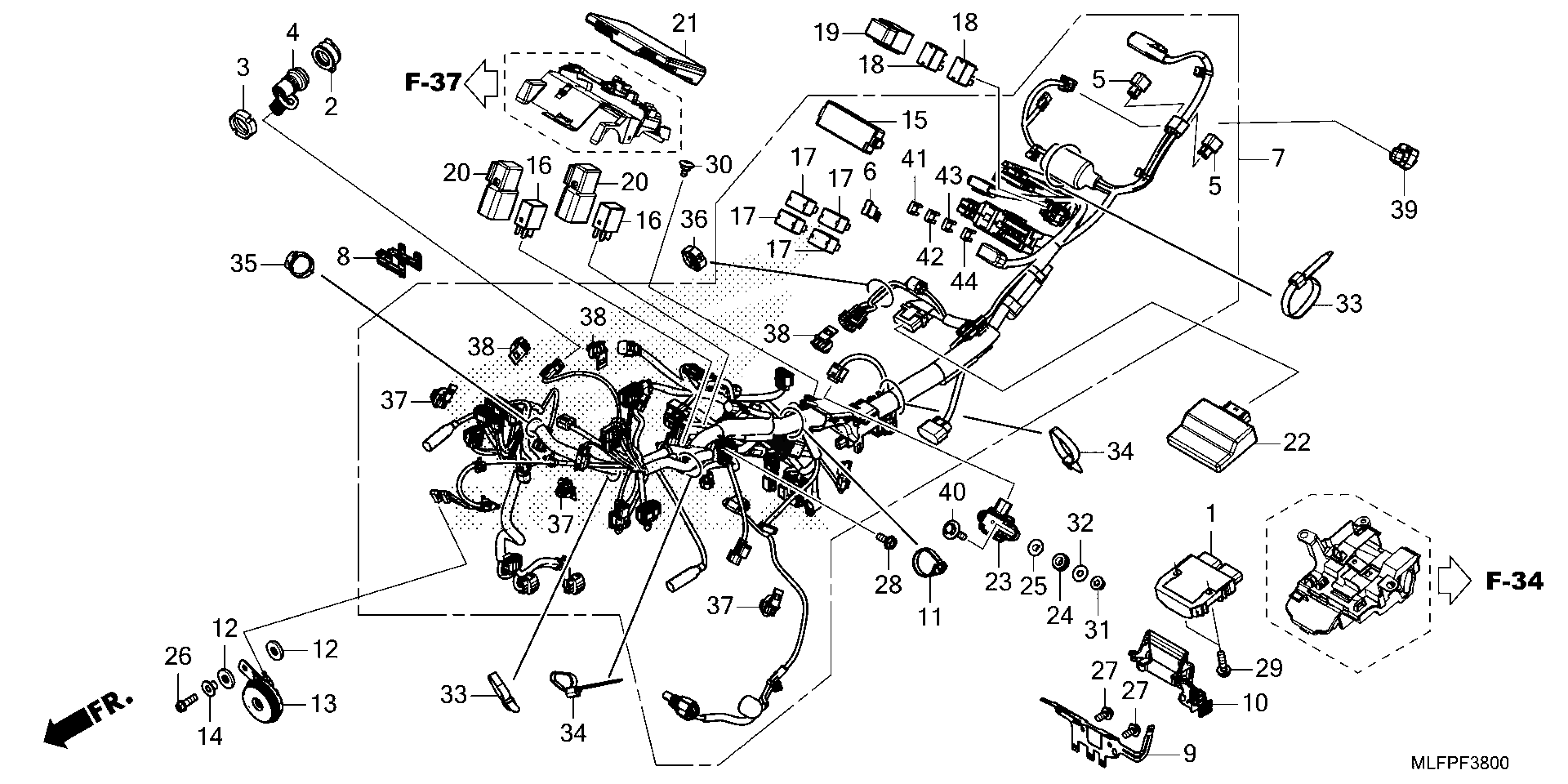

Honda NT1100PYB (25) MOTORCYCLE, JPN, VIN# JH2SC908-SK000001 TO JH2SC908-SK099999 WIRE HARNESS Diagram

#

Description
Price

1

RECTIFIER ASSY., REGULATOR

31600-MKN-D51

$173.16

2

CAP

31651-MKS-E21

$15.15

3

NUT, RING

31652-MGH-H21

$3.01

4

BODY, ACCESSORY

31653-MKS-E21

$51.69

5

RESISTOR

31700-MKZ-J31

$5.94

6

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.92

7

WIRE HARNESS

32100-MLF-Y10

$932.81

8

HOLDER, R. CONNECTOR HANDLE

32121-MKS-E01

$5.38

9

STAY, HARNESS CLIP

32155-MLN-E00

$12.24

10

COVER, CONNECTOR

32159-MJP-G50

$5.53

11

BAND, WIRE HARNESS

32161-GFL-J41

$1.71

12

RUBBER, TAILLIGHT BRACKET

33714-KL3-620

$2.32

13

HORN (HIGH)

38110-KCR-J01

$33.79

14

COLLAR, HORN SETTING

38117-KFE-701

$0.71

15

COVER (UPPER)

38255-MKS-E00

$12.60

16

RELAY, POWER (MICRO ISO 4P)

38501-MCS-G01

$9.88

17

RELAY (MICRO ISO 4P)

38501-MKP-DN1

$4.45

18

RELAY, POWER (MICRO ISO 4P)

38501-MKR-D11

$12.03

19

COVER, RELAY (2P)

38506-KZZ-900

$3.34

20

SUSPENSION, POWER RELAY

38506-MCS-G00

$5.68

21

PGM-FI UNIT (NOT AVAILABLE)

38770-MLF-A81

Unavailable

22

CONTROL UNIT, BODY

38950-MLF-C81

$254.93

23

SENSOR (3GYRO & 3G)

39960-MLF-E81

$284.72

24

RUBBER, SENSOR MOUNTING

39963-MKF-D41

$3.81

25

COLLAR, LOCK SETTING

83119-MG9-000

$5.64

26

BOLT, FLANGE (6X18)

90021-GHB-650

$2.09

27

BOLT, FLANGE (6X12)

90025-GHB-620

$2.06

28

BOLT, FLANGE (6X14)

90030-GHB-630

$2.06

29

BOLT, FLANGE (6X22)

90030-GHB-670

$2.01

30

SCREW, SPECIAL (5X14)

90102-MKA-D80

$2.68

31

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$3.89

32

WASHER (6MM)

90485-286-000

$1.50

33

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$3.56

34

BAND, WIRE (BLACK)

90652-KT1-771

$4.28

35

CLIP, WIRE HARNESS

90683-KJ2-003

$3.62

36

CLAMP, HARNESS

90690-MEF-800

$1.21

37

CLIP, CONNECTOR

90651-K2T-V01

$1.07

38

CLIP, WPC CONNECTOR

91565-K1F-V71

$1.04

39

CAP, DUMMY (6P) (RED)

91771-MKK-H11

$20.76

40

BOLT-WASHER (6X25)

93404-06025-08

$1.87

41

FUSE, MINI (10A)

98200-41000

$1.22

42

FUSE, MINI (15A) (Honda Code 4853438)

98200-41500

$1.12

43

FUSE, MINI (20A)

98200-42000

$1.12

44

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.62
