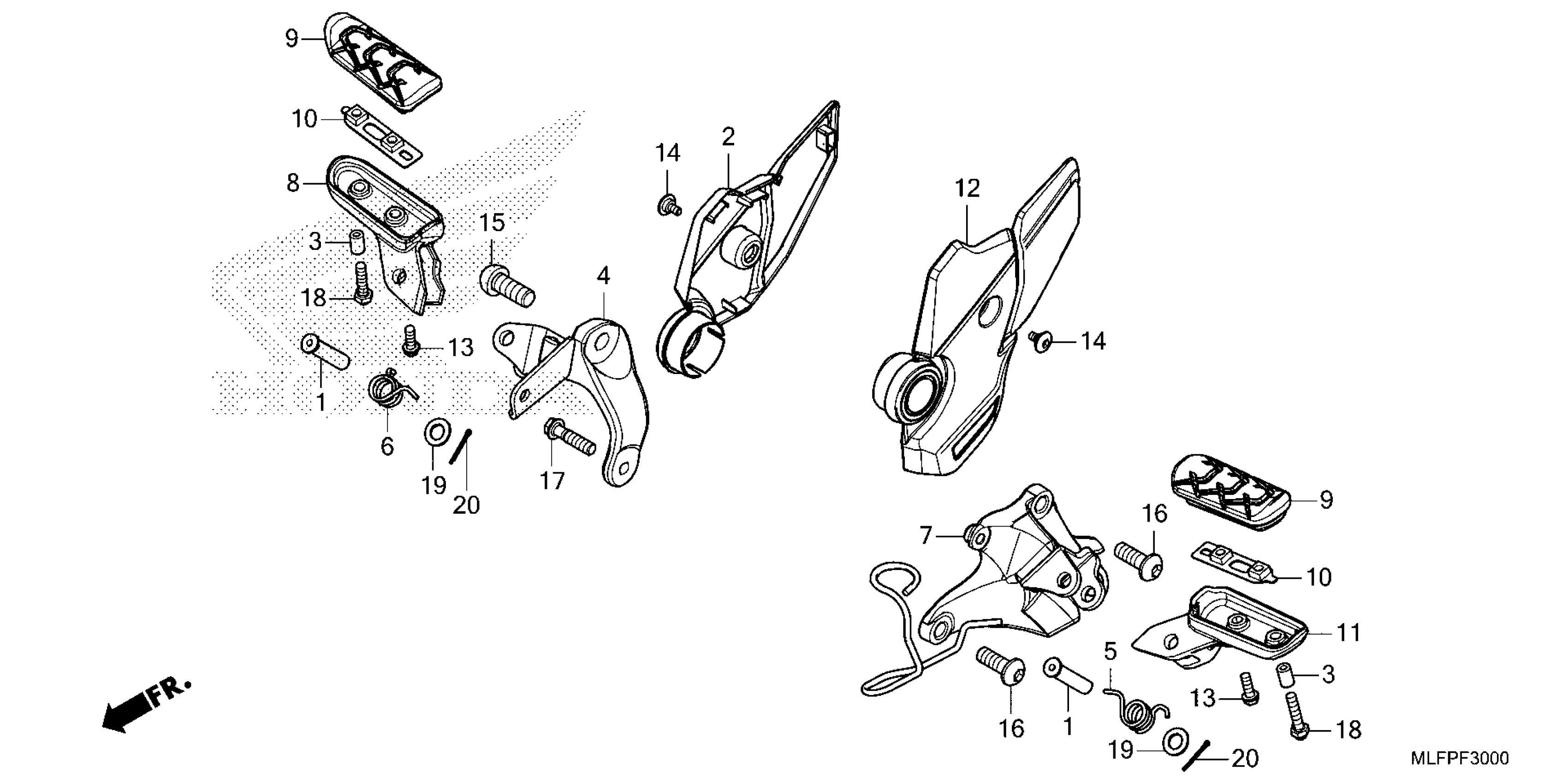

Honda NT1100PYB (25) MOTORCYCLE, JPN, VIN# JH2SC908-SK000001 TO JH2SC908-SK099999 STEP Diagram

#

Description
Price

1

PIN, STEP BAR JOIN This part replaces 50603-KA3-710.

50603-KL4-000

Unavailable

1

PIN, STEP BAR JOIN

50603-KL4-000

Unavailable

2

GUARD, R. HEEL *NH1* (BLACK)

50607-MKS-E00ZB

$19.16

3

COLLAR (6X15)

50611-MLB-D00

Unavailable

4

BRACKET, R. STEP *NHA86M* (MAT BALLISTIC BLACK)

50615-MKS-E00ZA

$82.57

5

SPRING, R. STEP RETURN

50617-KZ4-J40

$3.65

6

SPRING, L. STEP RETURN

50618-KZ4-J40

$3.65

7

BRACKET, L. STEP *NHA86M* (MAT BALLISTIC BLACK) (NOT AVAILABLE)

50625-MLF-E00ZA

$82.24

8

ARM, R. STEP (NOT AVAILABLE)

50660-MLF-E00

$35.26

9

RUBBER, MAIN STEP (NOT AVAILABLE)

50661-MLF-E00

$7.60

10

PLATE, STEP RUBBER SETTING (NOT AVAILABLE)

50662-MLF-E00

$2.43

11

ARM, L. STEP (NOT AVAILABLE)

50665-MLF-E00

$35.26

12

GUARD, L. HEEL *NH1* (BLACK)

50707-MKS-E00ZB

$15.27

13

BOLT, FLANGE (6X16) (SH)

90102-MEA-740

$1.34

14

SCREW, SPECIAL (5X12)

90106-MBY-000

$2.47

15

BOLT, SOCKET (12X28)

90112-MKS-E00

$4.93

16

BOLT, SOCKET (10X28)

90118-MJN-A00

$4.20

17

BOLT, FLANGE (8X32)

90124-MKS-E00

$2.80

18

BOLT, HEX. CAP (6X35) (NOT AVAILABLE)

92501-06035-0A

$1.40

19

WASHER, PLAIN (10MM)

94102-10000

$0.88

20

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.01

20

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.01

20

PIN, COTTER (2.0X22) PIN, COTTER (2.0X25)

94201-20220

$1.01

20

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.01

20

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.01

20

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.01

20

PIN, COTTER (2.0X35) PIN, COTTER (2.0X22)

94201-20350

$1.01

20

PIN, COTTER (2.0X22)

94201-29220

$1.01
