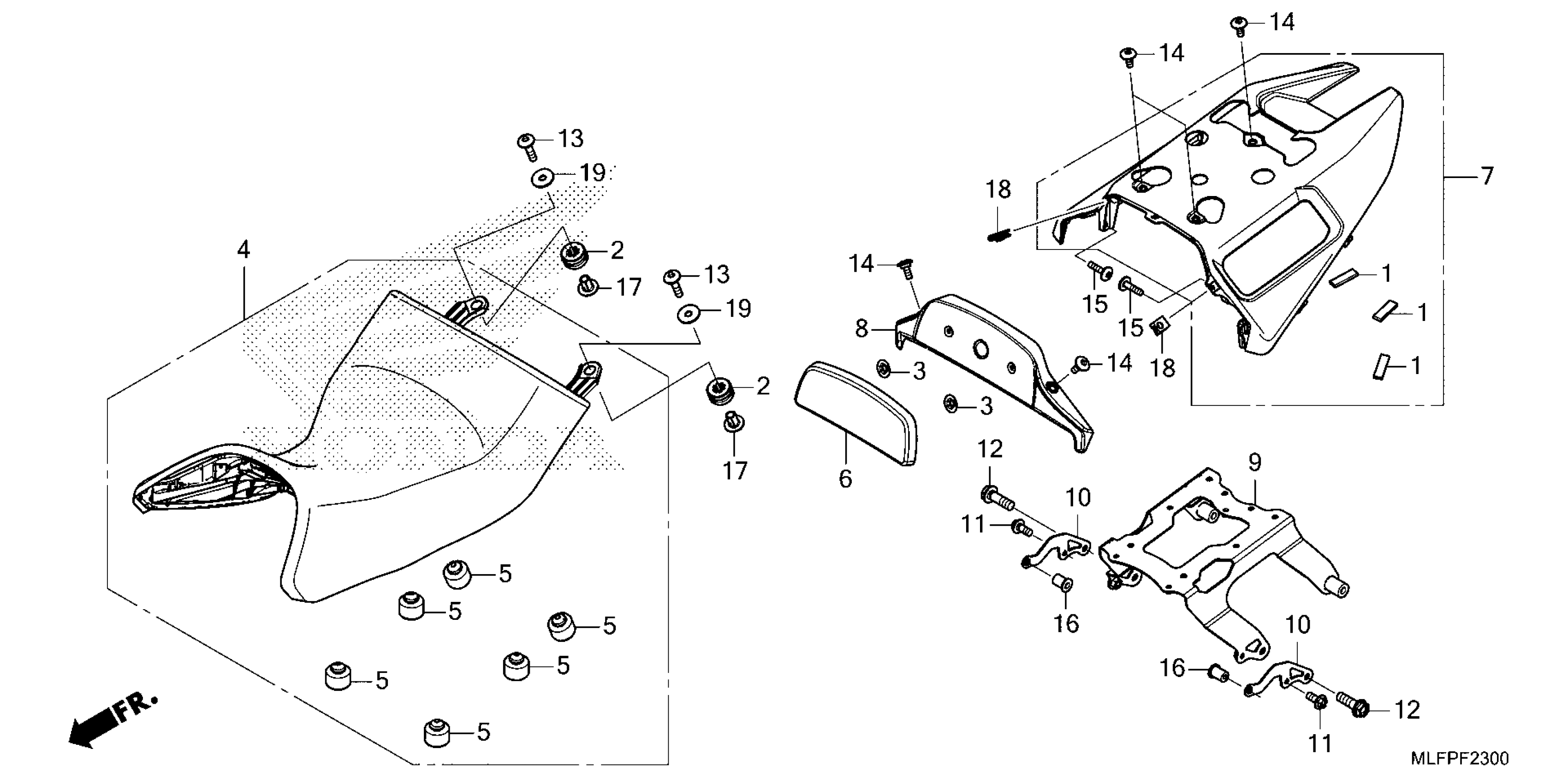

Honda NT1100PYB (25) MOTORCYCLE, JPN, VIN# JH2SC908-SK000001 TO JH2SC908-SK099999 SEAT@SEAT COWL Diagram

FASTENER, DUAL LOCK (8X25)

17541-MJP-G50

$2.06

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.22

NUT, SPEED (4MM)

64206-MJ0-000

$1.38

SEAT COMP (TYPE1)

77100-MLF-E02ZA

$184.87

RUBBER, SEAT SETTING

77206-GF0-000

$5.07

SEAT ASSY., BACK

77210-KV3-830

$27.55

COWL, SINGLE SEAT

77225-MLF-Y10

$175.46

COVER, SEAT CENTER

77226-MLF-Y00

$17.83

STAY, BRIEF BOX

81301-MLF-Y00

$276.51

STAY, SEAT COWL

81401-MLF-Y00

$18.64

BOLT, FLANGE (6X14)

90026-GHB-630

$2.03

BOLT, FLANGE (8X25)

90035-GHB-680

$2.12

BOLT, SPECIAL (6X25)

90085-MBW-000

$3.42

SCREW, SPECIAL (5X14)

90102-MKA-D80

$2.64

SCREW, PAN (5X20)

90103-MGH-H20

$2.12

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.20

COLLAR (6.2X12)

90501-MFA-D00

$2.93

NUT, CLIP (5MM)

90677-KAN-961

$3.79

WASHER, PLAIN (6MM)

94103-06800

$0.71
