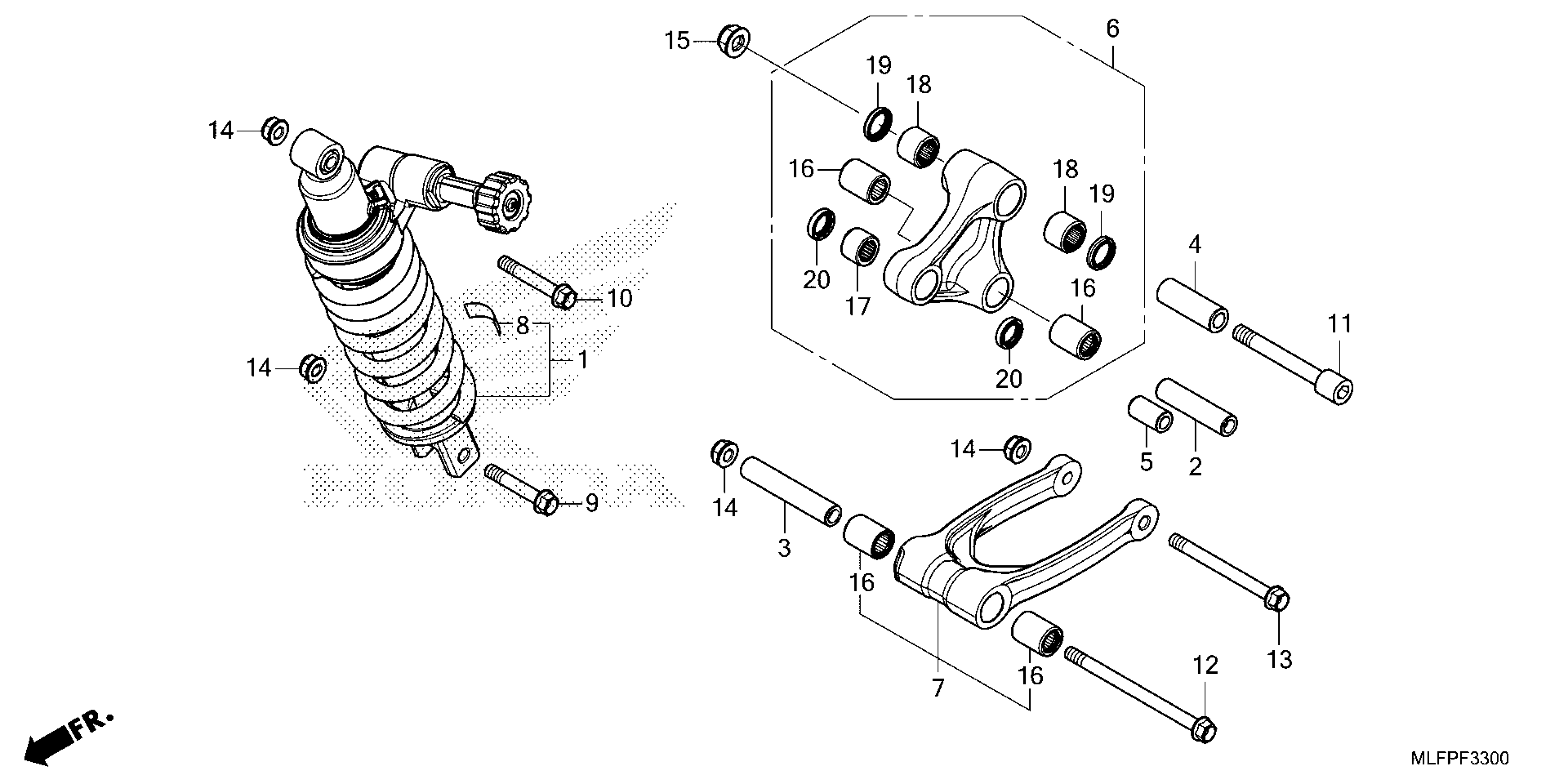

Honda NT1100PYB (25) MOTORCYCLE, JPN, VIN# JH2SC908-SK000001 TO JH2SC908-SK099999 REAR SHOCK ABSORBER Diagram

CUSHION ASSY., RR.

52400-MLF-Y11

$726.78

COLLAR B, CUSHION ARM

52462-MJP-G50

$10.34

COLLAR B, CUSHION ARM

52463-MGS-D10

$12.71

COLLAR C, CUSHION ARM

52463-MJP-G50

$10.71

COLLAR D, CUSHION ARM

52464-MJP-G50

$6.79

ARM SUB-ASSY., CUSHION

52465-MKK-D00

$318.50

ROD SUB-ASSY., CUSHION CONNECTING

52475-MJP-G50

$193.03

LABEL, RR. DAMPER

87516-MBL-610

$3.99

BOLT, FLANGE (10X57)

90126-MLG-E00

$4.75

BOLT, FLANGE (10X62)

90127-MLG-E00

$4.75

BOLT, SOCKET (12X91)

90128-MJP-G50

$13.28

BOLT, FLG (10X139)

90129-MLG-E00

$7.78

BOLT, FLG (10X106)

90130-MLG-E00

$6.22

NUT U, FLANGE (10MM)

90304-MCS-G01

$2.97

NUT, U FLANGE (12MM)

90306-KTZ-D01

$3.06

BEARING, NEEDLE (17X24X30)

91052-MGS-D31

$9.00

BEARING (17X24X17)

91071-K45-NL1

$12.22

BEARING, NEEDLE (20X26X20)

91071-KSP-901

$2.43

DUST SEAL (20X26X4.5) (ARAI)

91254-KS6-003

$8.47

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$5.91
