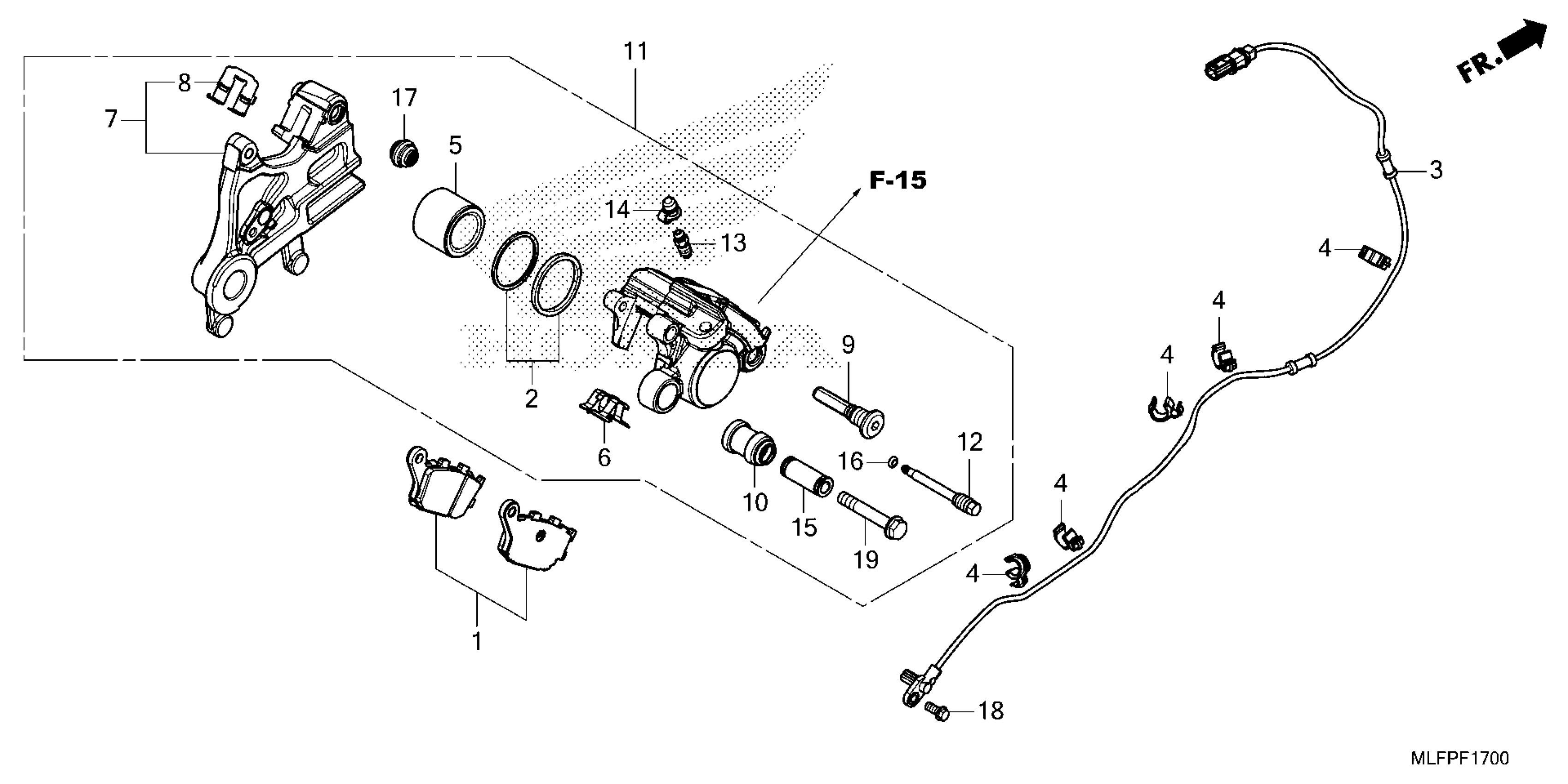

Honda NT1100PYB (25) MOTORCYCLE, JPN, VIN# JH2SC908-SK000001 TO JH2SC908-SK099999 REAR BRAKE CALIPER Diagram

Description

Price

PAD SET, RR.

06435-MEJ-026

$53.54

SEAL SET, PISTON

06451-443-405

$12.15

SENSOR, RR. WHEEL SPEED (NOT AVAILABLE)

38510-MLF-E01

$57.07

CLAMP, ABS WIRE (D12)

38517-MGE-003

$2.51

PISTON

43107-KT7-761

$34.77

SPRING, PAD

43108-MBB-006

$5.90

BRACKET, RR.

43110-MJP-G61

$140.09

RETAINER

43112-MV9-016

$9.79

BOLT, PIN

43131-KW3-006

$9.48

BOOT, SLEEVE

43132-KT7-761

$7.85

CALIPER SUB-ASSY., RR. (NISSIN) (MSDS)

43150-MJP-G61

$283.49

PIN, HANGER

43215-KZ4-J41

Unavailable

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

SLEEVE

45111-MA3-006

$12.28

RING, STOPPER

45111-MAJ-G41

$3.63

BOOT B

45133-MA3-006

$5.21

BOLT, FLANGE (6X14)

90117-MKS-E00

$2.13

BOLT, FLANGE (8X49)

90180-MN8-006

$5.80
