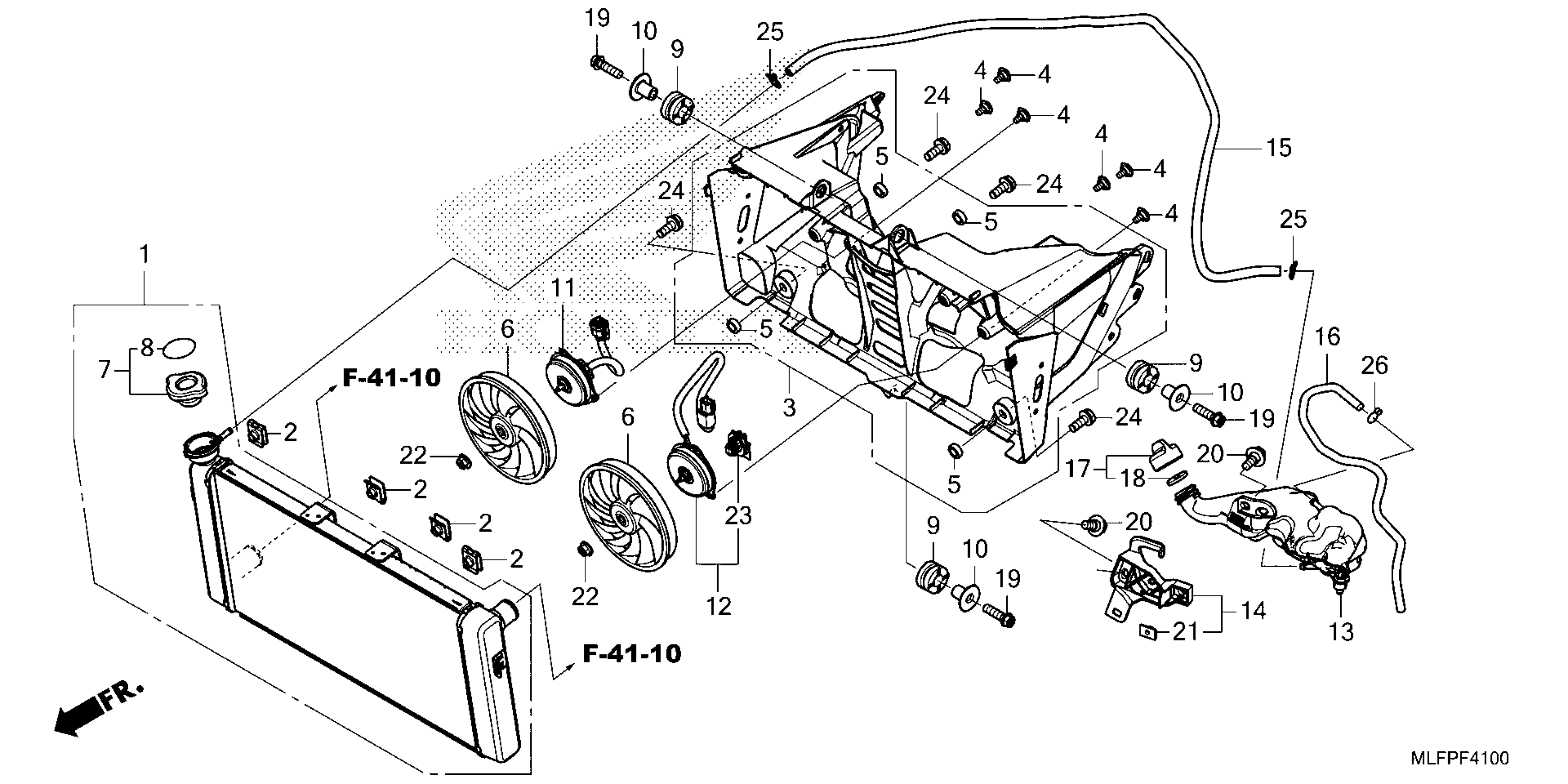

Honda NT1100PYB (25) MOTORCYCLE, JPN, VIN# JH2SC908-SK000001 TO JH2SC908-SK099999 RADIATOR@RESERVE TANK Diagram

RADIATOR

19010-MLF-J71

$653.74

NUT, SETTING (6MM)

19014-KEA-003

$3.10

SHROUD (NOT AVAILABLE)

19015-MLF-E00

$48.20

SCREW, PAN (4X8.5)

19016-KEA-003

$1.62

COLLAR, RAD SHROUD

19016-MLF-E00

$2.02

FAN, COOLING (TOYO)

19020-MGS-D31

$39.67

CAP, RADIATOR

19037-GEE-710

$30.28

LABEL, RADIATOR CAP

19046-PAA-A00

$2.92

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.48

MOTOR ASSY., R. FAN (NOT AVAILABLE)

19080-MLG-H31

$147.30

MOTOR ASSY., L. FAN (NOT AVAILABLE)

19090-MLG-H31

$147.30

TANK, RESERVE

19101-MKS-E00

$31.43

STAY, RESERVE TANK

19102-MJP-G50

$6.41

TUBE, RESERVE TANK

19103-MLF-Y00

$10.54

TUBE, RESERVE TANK OVERFLOW

19104-MJP-G50

$7.46

CAP ASSY., RESERVE TANK

19106-GET-000

$6.90

GASKET, RESERVE TANK

19107-GET-000

$3.74

BOLT, FLANGE (6X22)

90020-GHB-670

$2.33

BOLT, FLANGE (6MM)

90111-162-000

$2.89

NUT, SPECIAL (6X7)

90303-HA0-680

$3.85

NUT, FLANGE (3MM)

90315-MFL-003

$2.33

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$4.15

BOLT-WASHER (6X16)

93401-06016-08

$1.49

CLIP, TUBE (B10)

95002-02100

$1.90

CLIP, TUBE (C9)

95002-50000

$1.49
