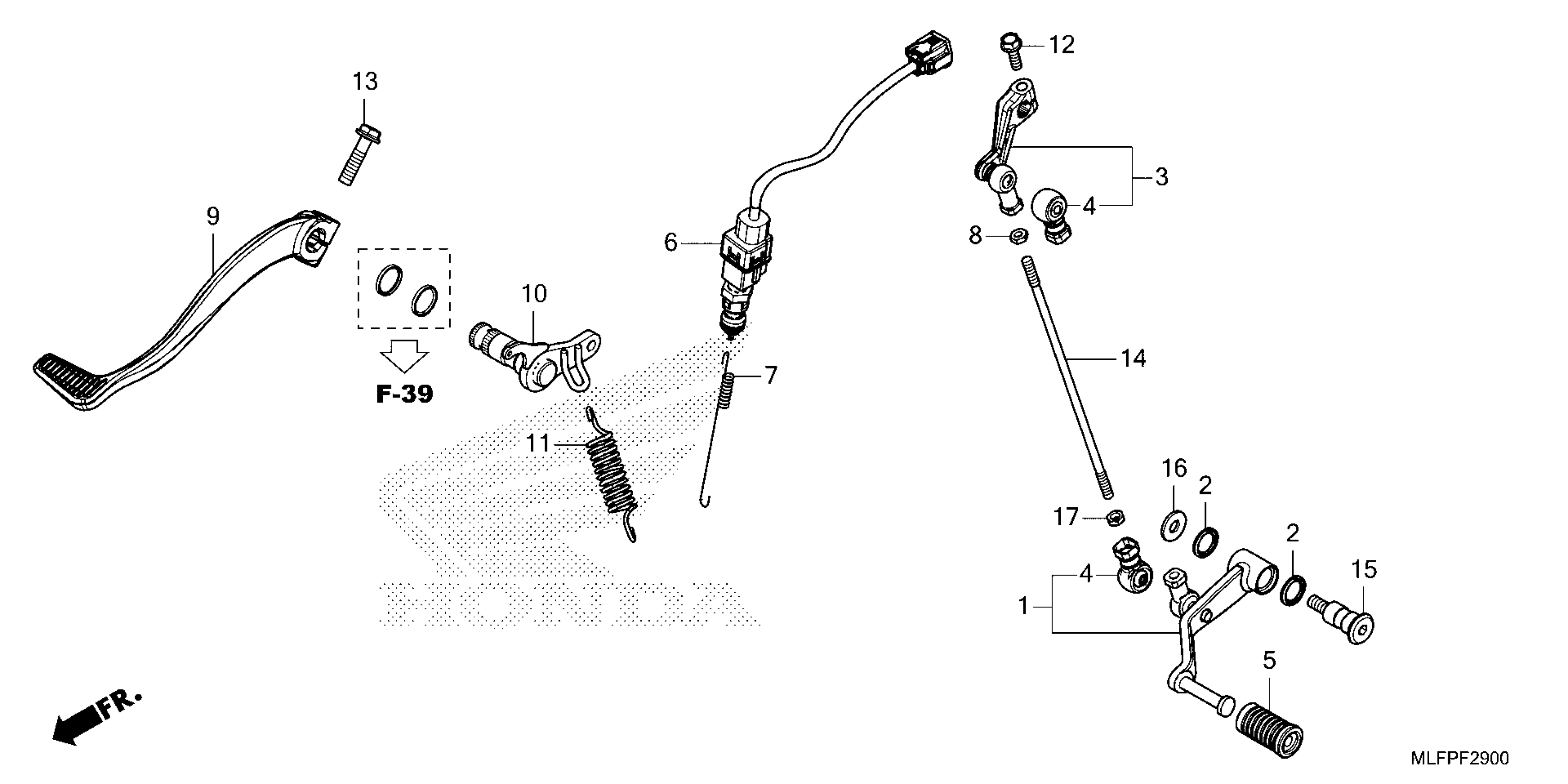

Honda NT1100PYB (25) MOTORCYCLE, JPN, VIN# JH2SC908-SK000001 TO JH2SC908-SK099999 PEDAL Diagram

PEDAL, GEARSHIFT (NOT AVAILABLE)

24705-MLF-E00

$57.38

RUBBER, DUST SEAL

24706-MK3-770

$4.48

ARM, GEARSHIFT

24710-MJP-G50

$81.59

COVER, DUST

24724-MBW-D21

$6.98

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.39

SWITCH ASSY., RR. STOP & CRUISE

35350-MKS-E01

$52.05

SPRING, STOP SWITCH

35357-MKS-E00

$3.64

NUT, HEX. (6MM) (LEFT HAND THREAD)

45423-KA4-700

$1.55

PEDAL, RR. BRAKE (NOT AVAILABLE)

46500-MLF-E00

$79.89

ARM, MIDDLE

46502-MKS-E00

$50.62

SPRING, BRAKE RETURN

46514-MCA-000

$6.00

BOLT, FLANGE (6X20)

90031-GHB-660

$2.18

BOLT, FLANGE (8X32)

90035-GHB-710

$2.44

BOLT, TIE ROD

90065-MFG-D00

$3.74

BOLT, CHANGE PIVOT

90115-KAF-000

$19.75

WASHER (8.5X20)

90526-GB0-930

$2.13

NUT, HEX. (6MM)

94002-06000-0S

$1.49
