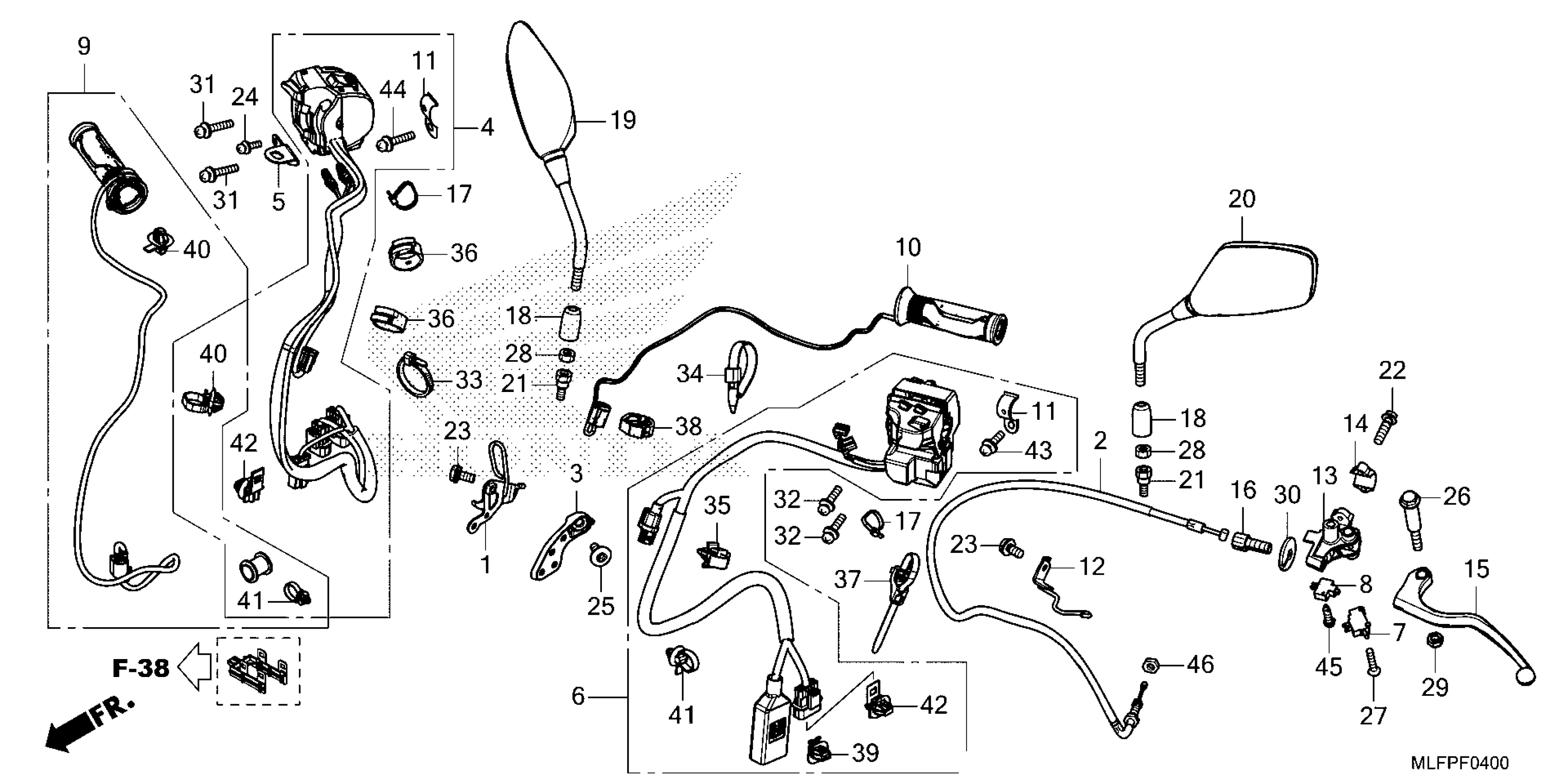

Honda NT1100PYB (25) MOTORCYCLE, JPN, VIN# JH2SC908-SK000001 TO JH2SC908-SK099999 HANDLE SWITCH@LEVER@CABLE@MIRROR Diagram

#

Description
Price

1

GUIDE, CABLE

17925-MKS-E00

$11.47

2

CABLE, CLUTCH (NOT AVAILABLE)

22870-MLF-E01

$17.22

3

STAY, CLIP

32151-MKK-D00

$7.90

4

SWITCH UNIT

35135-MLF-E81

$235.19

5

STAY, GRIP HEATER WIRE

35138-MKS-E20

$3.50

6

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE)

35200-MLF-A81

Unavailable

7

SWITCH ASSY., CLUTCH

35330-MCJ-751

$7.40

8

SWITCH ASSY., CLUTCH

35330-MK5-003

$16.31

9

HEATER UNIT, R. HANDLE

35511-MKS-E21

$93.00

10

HEATER ASSY., L. (NOT AVAILABLE)

35520-MLF-305

$91.99

11

PLATE A, SETTING

37971-MKS-E01

$3.87

12

GUIDE, CLUTCH CABLE

53112-MJP-G50

$9.99

13

BRACKET, L. HANDLE LEVER

53172-MKS-E00

$57.03

14

HOLDER, L. LEVER BRACKET

53174-KA3-730

$21.61

15

LEVER, L. HANDLEBAR

53178-MKS-E00

$34.78

16

BOLT, CABLE ADJUSTING

53192-MCJ-000

$7.81

17

BAND, NYLON

83645-GG0-000

$1.79

18

COVER, LOCK NUT

88130-MFG-D00

$1.59

19

MIRROR COMP R

88210-MLC-D00

$65.07

20

MIRROR COMP L

88220-MLC-D00

$65.07

21

BOLT, ADAPTER (10MM)

90003-MW3-620

$7.45

22

BOLT, FLANGE (6X22)

90021-GHB-670

$2.01

23

BOLT, FLANGE (6X12)

90030-GHB-620

$1.97

24

SCREW-WASHER (4X8)

90110-MKS-E20

$1.34

25

BOLT, SPECIAL (6X15)

90114-MGE-D00

$1.90

26

BOLT, L. HANDLE LEVER

90117-MJP-G50

$6.71

27

SCREW, FLAT (3X16)

90124-MCJ-752

$0.57

28

NUT, HEX. (10MM) (LEFT HAND THREAD)

90201-MW3-620

$4.20

29

NUT, U (6MM)

90301-782-000

$1.50

30

NUT, FIXING

90321-MCJ-000

$2.96

31

SCREW-WASHER (5X25)

90508-MGE-D00

$1.19

32

SCREW-WASHER (5X16)

90508-MGS-D30

$1.72

33

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$2.97

34

BAND, WIRE (BLACK)

90652-KT1-771

$4.28

35

STRAP, CABLE (118MM) (BLACK) (Honda Code 1170653)

90672-SA0-003

Unavailable

36

CLIP, WIRE HARNESS

90683-KJ2-003

$3.62

37

CLIP, HARNESS BAND (25MM)

90690-GHB-611

$2.01

38

CLAMP, HARNESS

90690-MEF-800

$1.21

39

CLIP, CONNECTOR (BLACK)

91533-MGS-D30

$1.24

40

CLIP, HARNESS BAND (157.7MM) (BLACK)

91540-S7S-003

$5.37

41

CLIP, HARNESS BAND (145MM) (BLACK)

91541-S0A-003

Unavailable

42

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.52

43

SCREW-WASHER (5X10)

93892-05010-08

$1.13

44

SCREW-WASHER (5X25)

93892-05025-08

$1.32

45

SCREW, TAPPING (3X12)

93901-32320

$0.90

46

NUT, HEX. (8MM)

94002-08070-0S

$1.31
