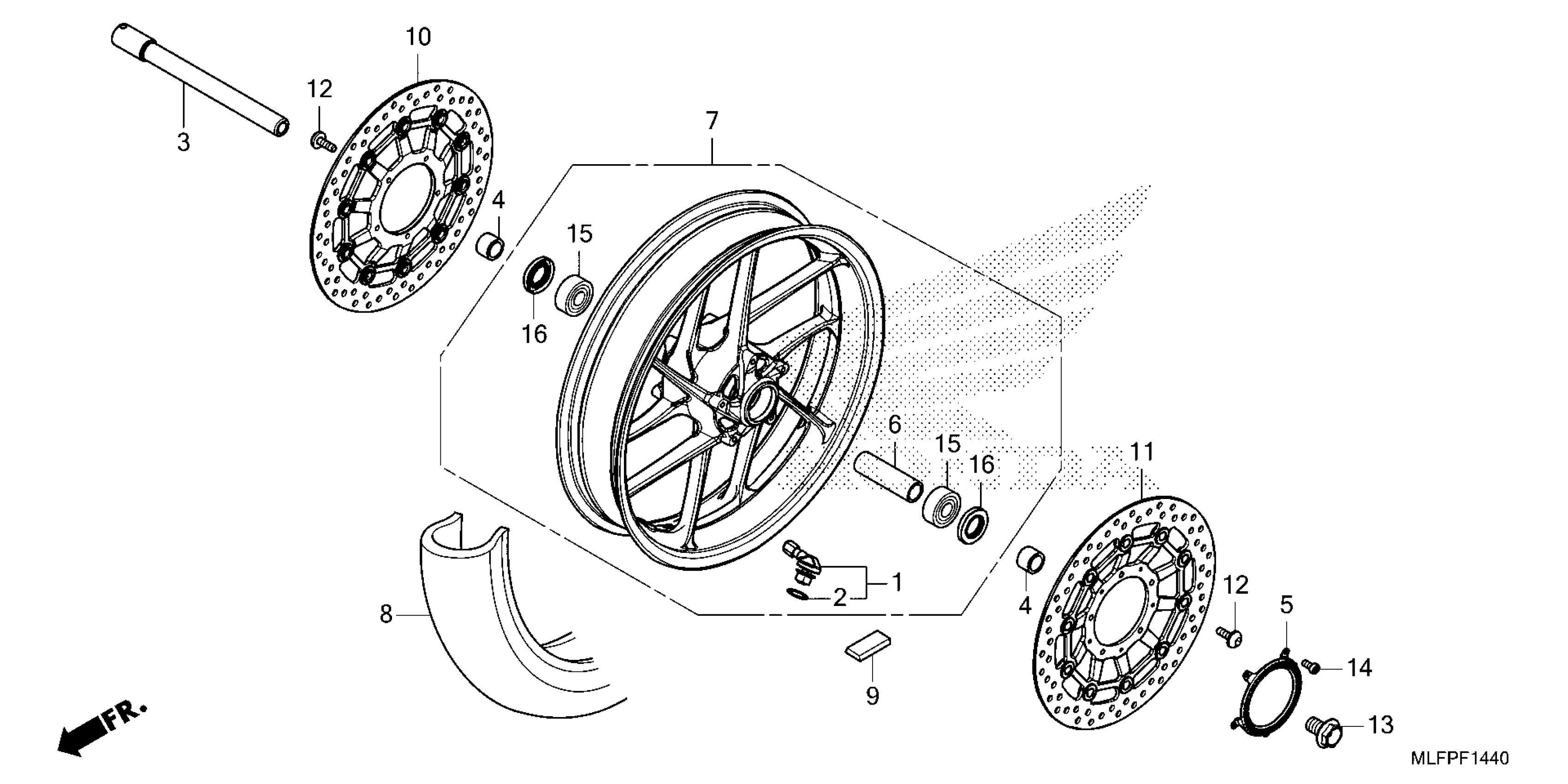

Honda NT1100PYB (25) MOTORCYCLE, JPN, VIN# JH2SC908-SK000001 TO JH2SC908-SK099999 FRONT WHEEL Diagram

VALVE ASSY., CLAMP IN

42755-MKA-D81

$16.58

O-RING

42758-MKA-D81

$1.52

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-MLF-E00

$35.23

COLLAR, L. FR. WHEEL SIDE (BOTH SIDES)

44312-MCE-950

$10.72

RING, FR. PULSER (TYPE2)

44515-MKF-D40ZB

$30.91

COLLAR, FR. AXLE DISTANCE

44620-MGC-N20

$14.92

WHEEL SUB-ASSY., FR. (TYPE1) (NOT AVAILABLE)

44650-MLF-E01ZB

$562.05

TIRE, FR. (120/70ZR17) (M/C 58W) (DUNLOP) (NOT AVAILABLE)

44711-MLF-E02

$136.74

TIRE, FR. (120/70ZR17) (M/C 58W) (METZELER) (NOT AVAILABLE)

44711-MLF-E03

$136.74

WEIGHT, BALANCE (10G)

44721-MLN-EQ1

Unavailable

WEIGHT, BALANCE (15G)

44722-MLN-EQ1

Unavailable

WEIGHT, BALANCE (20G)

44723-MLN-EQ1

$3.80

DISK, R. FR. BRAKE (YUTAKA) (NOT AVAILABLE)

45120-MLF-E01

$380.02

DISK, L. FR. BRAKE (YUTAKA) (NOT AVAILABLE)

45220-MLF-E01

$380.02

BOLT (6X17)

90103-MLC-D00

$2.10

BOLT, FR. AXLE

90112-MKN-D50

$2.74

BOLT, TORX (5X10)

90131-KFK-630

$3.03

BEARING, RADIAL BALL (6204UU) (NSK)

91053-MKY-D51

$15.62

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.98
