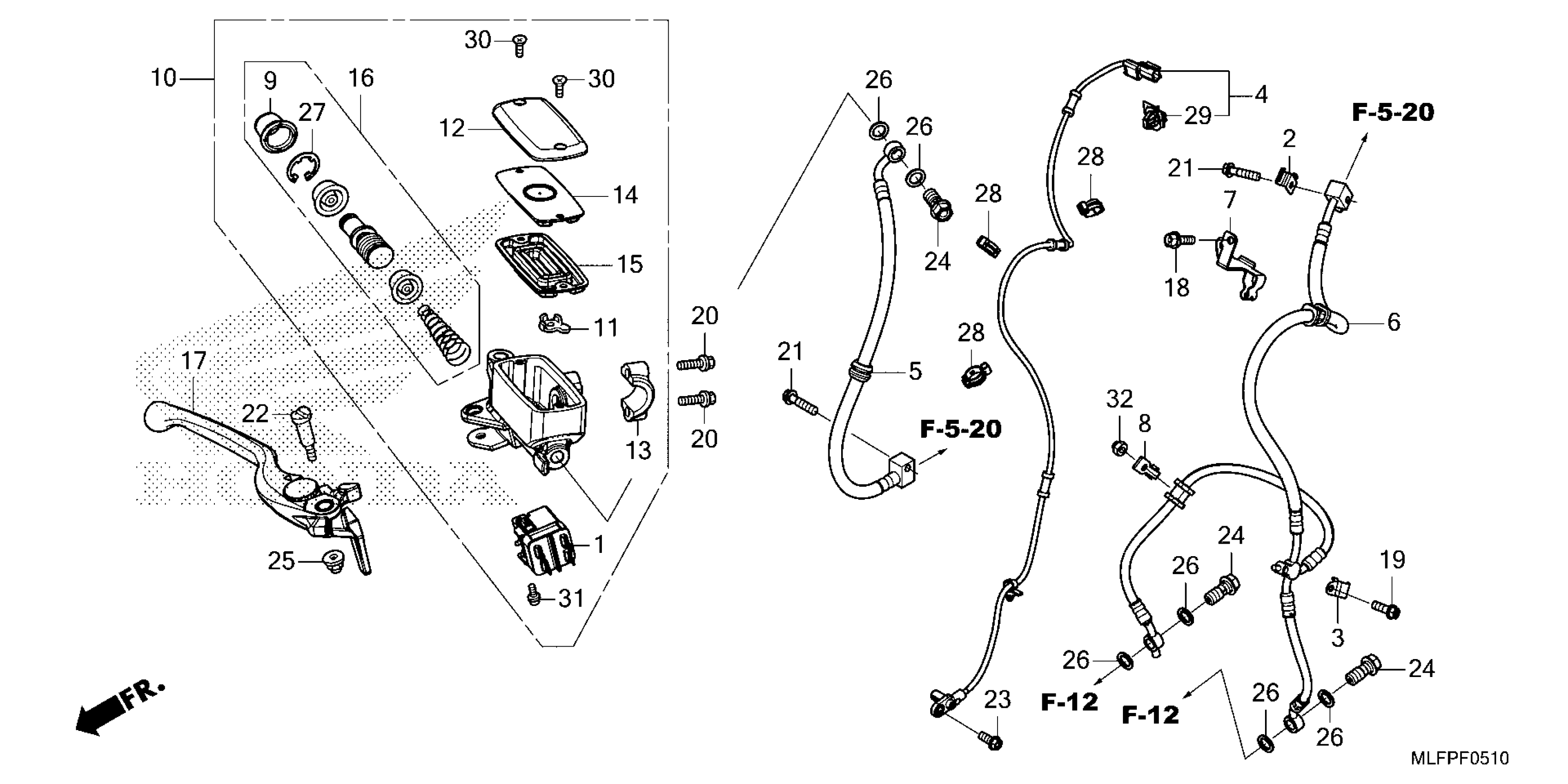

Honda NT1100PYB (25) MOTORCYCLE, JPN, VIN# JH2SC908-SK000001 TO JH2SC908-SK099999 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP & CRUISE

35340-MKS-E01

$53.75

2

CLAMP B, SENSOR WIRE

38514-MEJ-J00

$2.09

3

CLAMP B, SENSOR WIRE

38514-MKH-D00

$1.66

4

SENSOR, FR. WHEEL SPEED (NOT AVAILABLE)

38520-MLF-E01

$57.07

5

HOSE A, FR. BRAKE

45125-MLF-E81

$37.43

6

HOSE D, FR. BRAKE (NOT AVAILABLE)

45128-MLF-E01

$92.91

7

CLAMP, FR. BRAKE HOSE (NOT AVAILABLE)

45156-MLF-E00

$5.88

8

CLAMP A, FR. BRAKE HOSE

45158-MFL-D00

$3.37

9

BOOT

45504-410-003

$11.17

10

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN) (NOT AVAILABLE)

45510-MFP-JC1

$214.40

11

PROTECTOR

45512-MA6-006

$4.09

12

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$20.57

13

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

14

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$9.79

15

DIAPHRAGM (NISSIN)

45520-MM5-006

$13.87

16

PISTON SET, FR. MASTER CYLINDER

45530-MCA-006

$16.65

17

LEVER ASSY., R. HANDLE

53170-MKS-E01

$47.22

18

BOLT, FLANGE (6X14)

90021-GHB-630

$2.06

19

BOLT, FLANGE (6X18)

90021-GHB-650

$2.09

20

BOLT, FLANGE (6X22)

90021-GHB-670

$2.01

21

BOLT, FLANGE (6X25)

90021-GHB-680

$2.09

22

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

Unavailable

23

BOLT, FLANGE (6X14)

90117-MKS-E00

$2.13

24

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

25

NUT, CAP (6MM)

90201-415-000

Unavailable

26

WASHER, OIL BOLT

90545-300-000

$5.79

27

CIRCLIP

90651-MA5-671

$2.38

28

CLIP, CABLE (12MM)

90690-MGS-D81

$2.06

29

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.52

30

SCREW, FLAT (4X12)

93600-04012-0G

$0.90

30

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.90

31

SCREW-WASHER (4X12)

93893-04012-07

$1.32

31

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

32

NUT, CAP (6MM)

94021-06070-0S

$1.60
