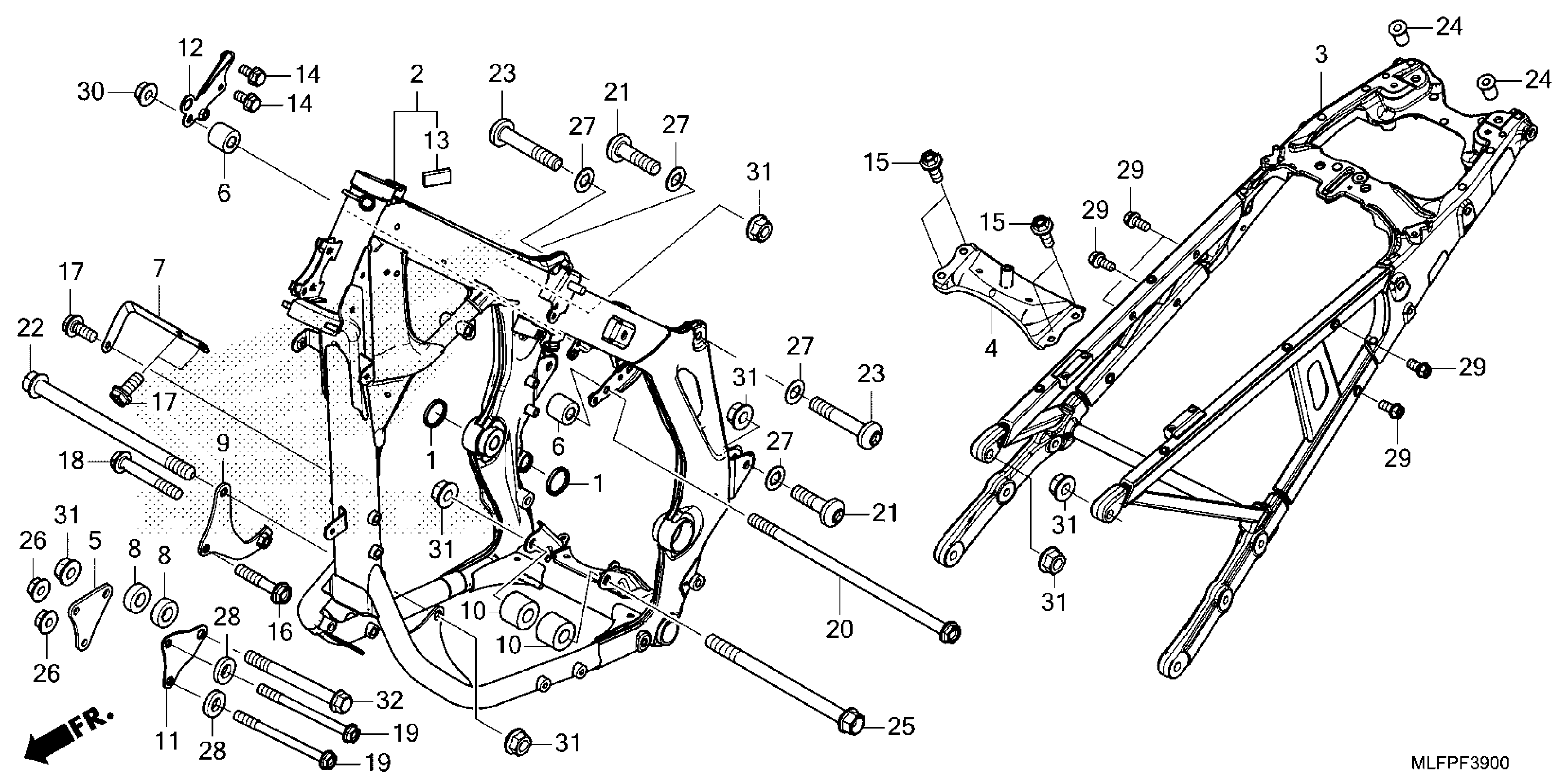

Honda NT1100PYB (25) MOTORCYCLE, JPN, VIN# JH2SC908-SK000001 TO JH2SC908-SK099999 FRAME Diagram

#

Description
Price

1

DUST SEAL (17X20X2.5)

46525-KK0-003

$4.83

2

FRAME SET *NHA86M*

50010-MLF-Y00ZA

$2,084.60

3

RAIL, SEAT *NHA86M*

50200-MLF-Y00ZA

$602.01

4

PLATE, FR. CROSS

50230-MLF-E80

$14.71

5

PLATE, R. FR. ENGINE HANGER (NOT AVAILABLE)

50351-MLF-E00

$10.41

6

COLLAR C, ENGINE HANGER

50352-MKS-E00

$4.41

7

PLATE, FR. HEAD ENGINE HANGER

50353-MKS-E00

$7.57

8

COLLAR A, ENGINE HANGER

50354-MKS-E00

$3.69

9

PLATE R, FR. ENGINE HANGER (LOWER)

50355-MKS-E00

$26.22

10

COLLAR D, ENGINE HANGER

50356-MKS-E00

$6.79

11

PLATE, L. FR. ENGINE HANGER

50358-MKS-E00

$13.14

12

PLATE, R. RR. ENGINE HANGER (UPPER)

50361-MKS-E00

$18.49

13

RUBBER, RR. FENDER

80102-MJS-J70

$1.46

14

BOLT, FLANGE (6X12)

90025-GHB-620

$2.06

15

BOLT, FLANGE (6X14)

90025-GHB-630

$2.07

16

BOLT, FLANGE (8X40)

90035-GHB-740

$2.34

17

BOLT, FLANGE (8X18)

90036-GHB-650

$1.96

18

BOLT, FLANGE (8X55)

90036-GHB-770

$2.82

19

BOLT, FLANGE (8X95)

90036-GHB-850

$3.99

20

BOLT, FLANGE (8X195)

90102-MKS-E00

$6.96

21

BOLT, SPECIAL (10X35)

90103-MKS-E00

$2.93

22

BOLT, FLANGE (10X153)

90103-MY1-000

$13.23

23

BOLT, SPECIAL (10X54)

90104-MKS-E00

$4.06

24

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.31

25

BOLT, FLANGE (10X138)

90116-KW3-000

$12.71

26

NUT, FLANGE (8MM)

90305-MKS-E00

Unavailable

27

WASHER (10.2MM)

90401-430-000

$1.59

28

WASHER, PLAIN (8MM)

90501-399-880

$2.38

29

BOLT-WASHER (6X16)

93401-06016-08

$1.34

30

NUT, FLANGE (8MM)

94050-08080

$0.87

31

NUT, FLANGE (10MM)

94050-10080

$3.00

32

BOLT, FLANGE (10X95)

96400-10095-08

$2.03
