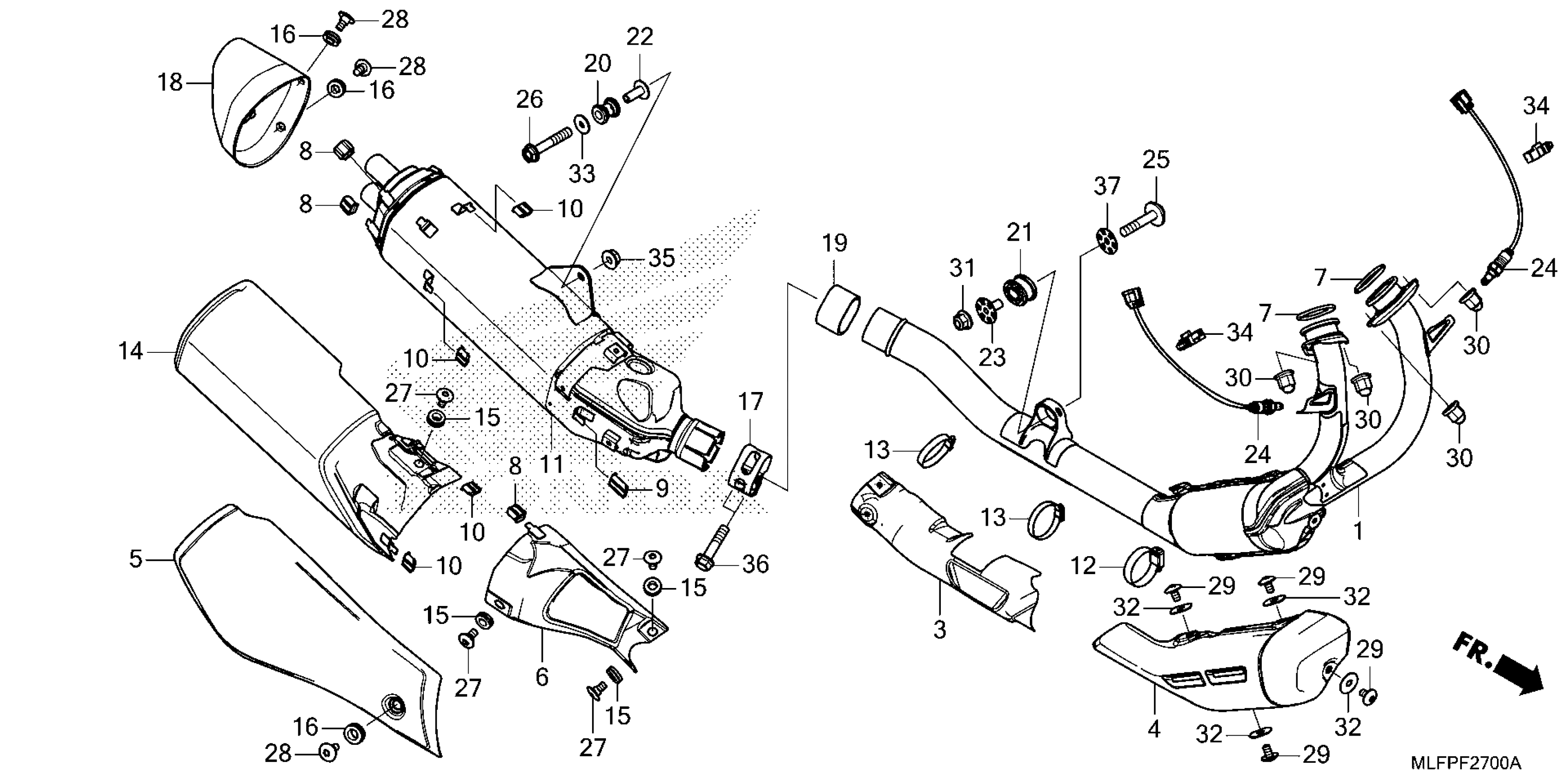

Honda NT1100PYB (25) MOTORCYCLE, JPN, VIN# JH2SC908-SK000001 TO JH2SC908-SK099999 EXHAUST MUFFLER Diagram

PIPE, EX.

18100-MLF-A80

$1.00

WASHER, EX. PIPE

18155-MLN-E00

$12.78

COVER A, EX. PIPE (NOT AVAILABLE)

18180-MLF-E00

$67.11

COVER, R. CATALYST (NOT AVAILABLE)

18182-MLF-E00

$112.22

COVER, EX. (OUTER) (NOT AVAILABLE)

18186-MLF-E00

$21.49

COVER C, EX. PIPE (NOT AVAILABLE)

18190-MLF-E00

$24.12

GASKET, EX. PIPE

18291-MM8-880

$7.16

RUBBER, PROTECTOR GASKET

18293-MCA-A20

$2.05

RUBBER, PROTECTOR GASKET

18293-MJP-G50

$3.80

RUBBER, PROTECTOR

18293-MN0-000

$2.13

MUFFLER

18310-MLF-E80

$786.45

BAND, EX. PROTECTOR

18329-MKS-E00

$16.93

BAND, EX. PROTECTOR

18329-MKS-E20

$16.21

COVER, MUFFLER (NOT AVAILABLE)

18340-MLF-E10

$129.00

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$2.18

RUBBER, PROTECTOR MOUNTING

18345-MKS-E20

$2.93

BAND, MUFFLER

18371-MKS-E20

$26.62

COVER, TAIL CAP (NOT AVAILABLE)

18380-MLF-E00

$102.23

GASKET, MUFFLER

18391-ML0-003

$29.28

RUBBER, MUFFLER MOUNTING

18421-MA6-000

$7.04

RUBBER, EX. PIPE MOUNTING

18422-MFJ-D10

$18.48

COLLAR, MUFFLER MOUNTING

18422-MGC-N20

$8.23

COLLAR, EX. PIPE MOUNTING

18423-MGC-N20

$6.38

SENSOR, L. AIR FUEL RATIO

36538-MLA-D51

$219.44

BOLT, FLANGE (8X45)

90036-GHB-750

$2.84

BOLT, FLANGE (8X45)

90037-GHB-750

$2.93

SCREW, PAN (6X12)

90114-MKS-E20

$2.03

SCREW, PAN (6X14)

90115-MKS-E20

$2.20

SCREW, PAN (6X10)

90190-MLG-E00

$2.25

NUT, CAP (8MM)

90304-ME1-670

$5.94

NUT, FLANGE (8MM)

90305-MKS-E00

$2.25

WASHER, PLAIN (6MM)

90502-MKS-E00

$3.13

WASHER (8.5X26)

90504-ME4-000

$3.26

CLIP

90652-MGS-D31

$3.20

NUT, FLANGE (8MM)

94050-08040

$1.49

BOLT, FLANGE (8X35)

96400-08035-04

$1.49

WASHER (8.5X38)

90501-MGC-N20

$3.25
