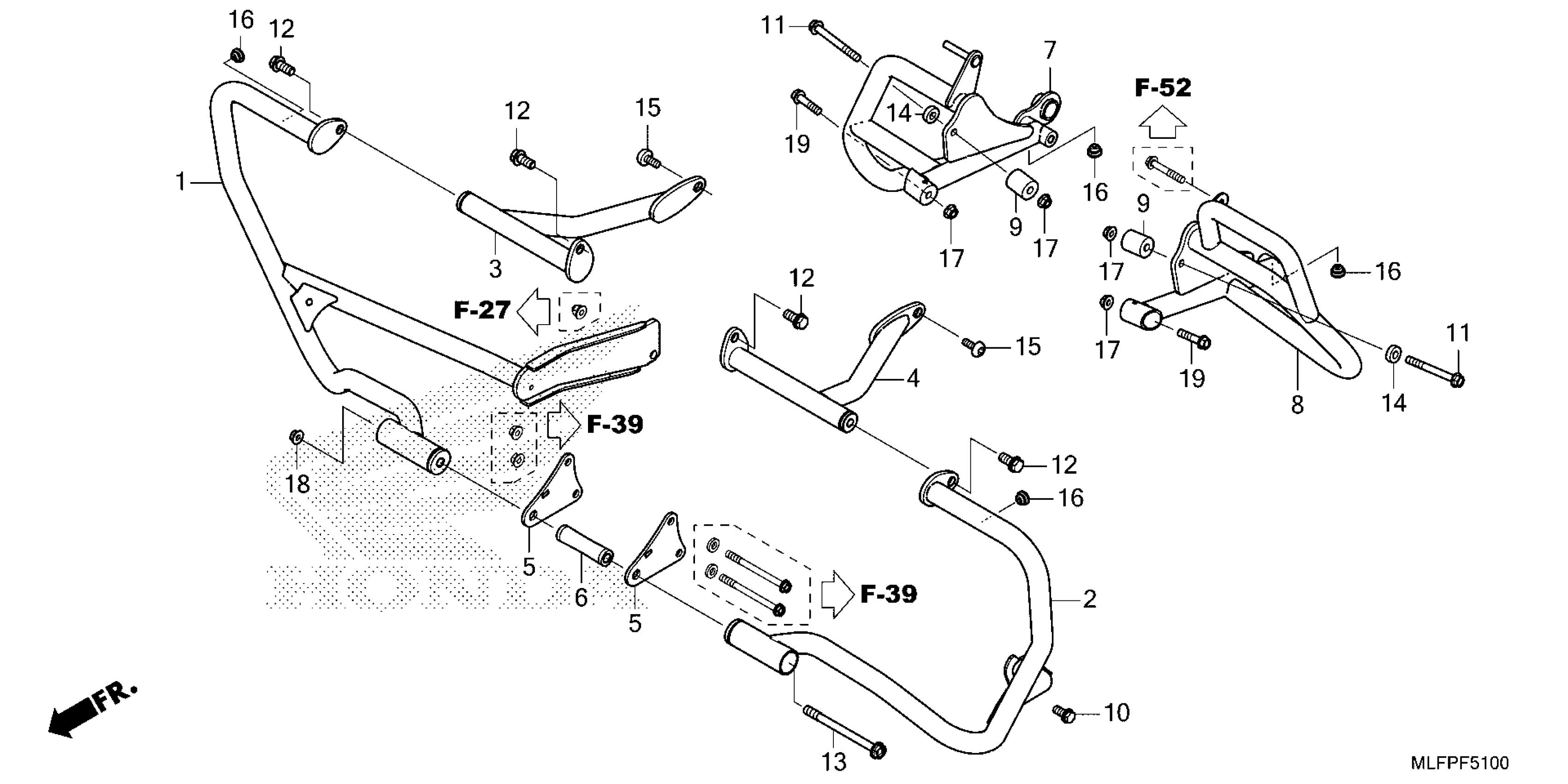

Honda NT1100PYB (25) MOTORCYCLE, JPN, VIN# JH2SC908-SK000001 TO JH2SC908-SK099999 ENGINE GUARD Diagram

#

Description
Price

1

GUARD, R. ENGINE

62501-MLF-Y00

$382.54

2

GUARD, L. ENGINE

62502-MLF-Y00

$382.54

3

PIPE, R. MIDDLE

62503-MLF-Y00

$283.25

4

PIPE, L. MIDDLE

62504-MLF-Y00

$283.25

5

BRKT, ENGINE GUARD

62505-MLF-Y00

$16.04

6

COLLAR, ENGINE GUARD

62506-MLF-Y00

$8.25

7

BUMPER, R. SIDE

87451-MLF-Y00

$320.93

8

BUMPER, L. SIDE

87452-MLF-Y00

$239.09

9

COLLAR B, RR. BUMPER

87456-MLF-Y00

$9.46

10

BOLT, FLANGE (8X18)

90101-MLF-Y00

$2.88

11

BOLT, FLANGE (8X75)

90102-MLF-Y00

$3.48

12

BOLT, FLANGE (10X22)

90103-MJH-Y20

$3.55

13

BOLT, FLG (10X125)

90107-MFP-600

$5.88

14

WASHER (9X20X6)

90114-MY6-700

$3.07

15

BOLT, SOCKET (10X20)

90116-MFV-000

$4.23

16

PLUG, HOLE

90852-446-630

$2.33

17

NUT, FLANGE (8MM)

94050-08070

$1.36

18

NUT, FLANGE (10MM)

94050-10000

$1.41

19

BOLT, FLANGE (8X35)

95701-08035-07

$1.28
