Description

Price

1

CRANKCASE SET

11000-MLA-A00

$2,773.61

2

COLLAR, ENGINE HANGER

11104-MJP-G50

$11.26

3

JET, OIL

11140-MLN-E00

$20.62

4

ORIFICE

11206-MJP-G50

$6.48

5

ORIFICE (1.2MM)

11207-MKS-E00

$3.52

6

COVER, REDUCTION GEAR

11520-MJP-G50

$24.25

7

FILTER SET, OIL | (Optional).

15010-MKR-305

$20.30

8

FILTER, OIL (WAKO FILTER)

15410-MFJ-D02

$15.84

9

ORIFICE (0.8MM)

15516-MGS-D30

$6.08

10

RECEIVER, CLUTCH CABLE

22821-MJP-G50

$9.28

11

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MEH-661

$48.89

12

SWITCH ASSY., NEUTRAL

35600-MKF-D41

$21.64

13

SENSOR ASSY., SPEED (TDK-EPC)

37700-MJE-D01

$26.44

14

SENSOR ASSY., ANGLE (350DEGREE)

38800-MJP-G81

$187.49

15

COVER, ANGLE SENSOR

38805-MJP-G80

$9.26

16

BOLT-WASHER (4X8) (DENSO)

90002-PA6-003

$5.85

17

BOLT, KNOCK (6MM)

90011-MGE-D00

$2.89

18

BOLT, FLANGE (10X110)

90015-MJP-G50

$8.02

19

BOLT, FLANGE (10X130)

90015-MKS-E00

$5.87

20

BOLT, FLANGE (10X145)

90016-MJP-G50

$10.11

21

BOSS, OIL FILTER (Honda Code 1243435)

90019-MB0-000

$8.61

22

BOLT, FLANGE (6X25)

90026-GHB-680

$2.18

23

BOLT, FLANGE (6X35)

90030-GHB-720

$2.28

24

BOLT, FLANGE (6X60)

90030-GHB-780

$2.59

25

BOLT, FLANGE (6X16)

90031-GHB-640

$2.26

26

BOLT, FLANGE (8X40)

90035-GHB-740

$2.52

27

BOLT, FLANGE (8X55)

90035-GHB-770

$2.92

28

BOLT, FLANGE (8X95)

90035-GHB-850

$4.07

29

BOLT, FLANGE (10X75)

90040-GHB-810

$5.10

30

BOLT, SPECIAL (10X12)

90044-MKC-A00

$4.46

31

BOLT, SEALING (18MM)

90046-MKK-D00

$7.88

32

BOLT, SEALING (22MM)

90048-MFL-000

$9.51

33

BOLT, SEALING (8MM)

90119-SD9-000

$5.57

34

WASHER, SEALING (8MM)

90442-028-000

$1.77

35

WASHER, SEALING (10.2MM)

90443-MB0-000

$2.92

36

WASHER, NEUTRAL

90443-MJ6-000

$1.92

37

WASHER, SEALING (6MM)

90488-425-000

$2.28

38

PIN, DOWEL (10X16) (Honda Code 3906971)

90701-MV9-670

$4.30

39

BEARING, NEEDLE (12X16X10)

91021-MKS-E01

$9.70

40

BEARING, SEAL NEEDLE (12X18X14)

91022-MKS-E01

$10.66

41

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.69

42

O-RING (3.2X1.1)

91305-MCJ-751

$2.16

43

O-RING (16.5X2.5)

91310-MGE-D01

$4.80

44

NUT, FLANGE (4MM)

94050-04000

$1.49

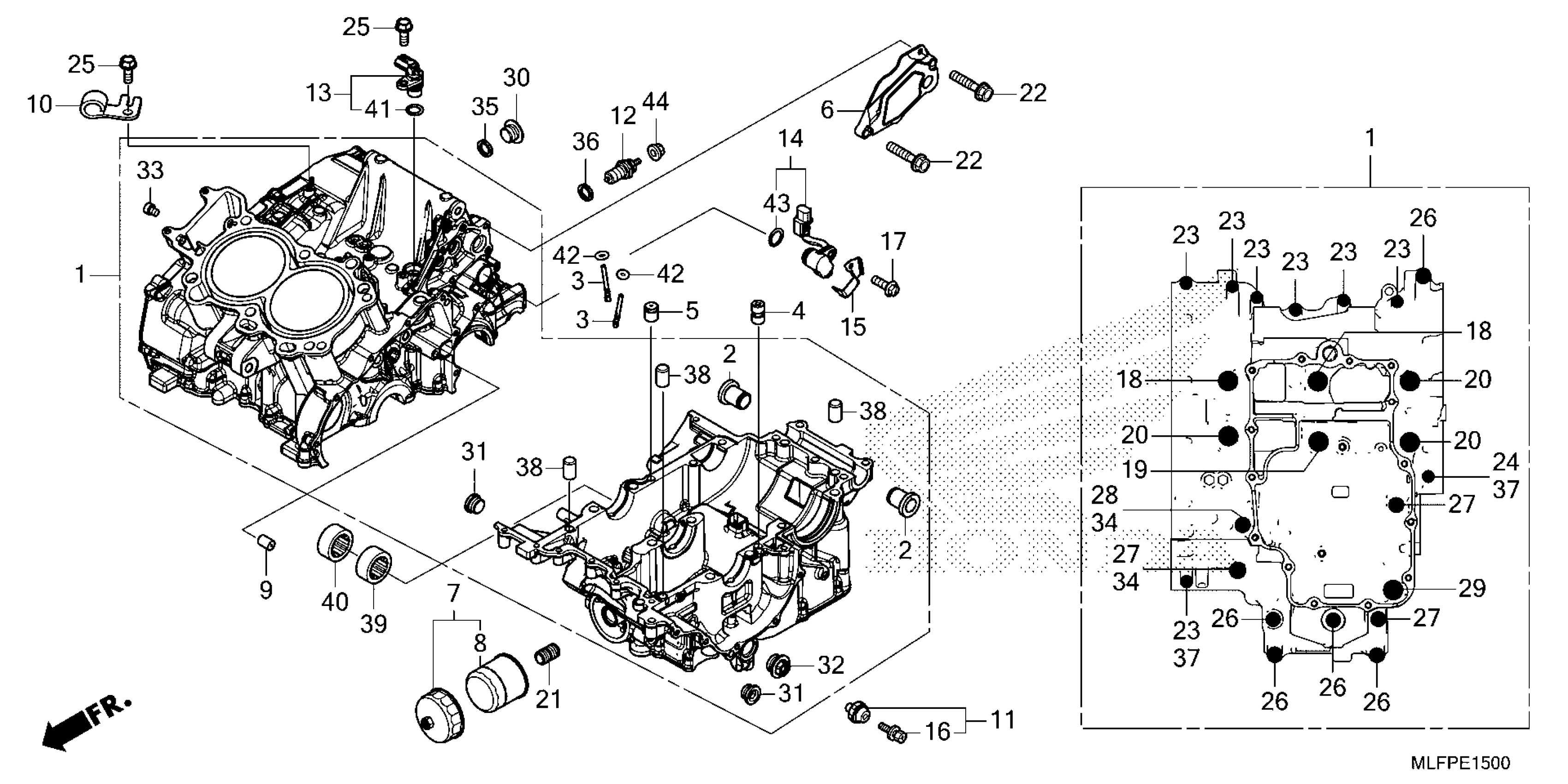

Honda NT1100PYB (25) MOTORCYCLE, JPN, VIN# JH2SC908-SK000001 TO JH2SC908-SK099999 CRANKCASE Diagram
