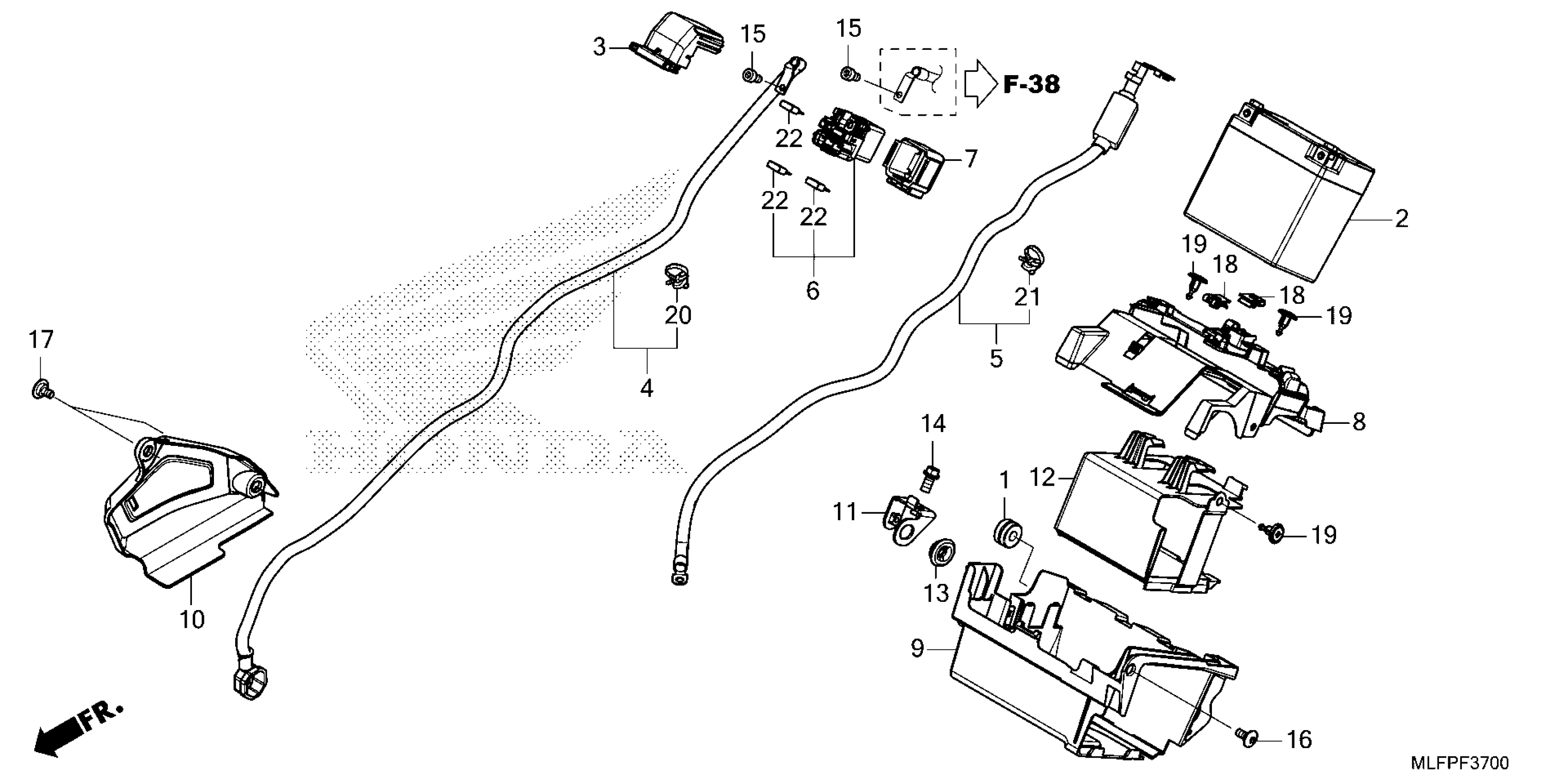

Honda NT1100PYB (25) MOTORCYCLE, JPN, VIN# JH2SC908-SK000001 TO JH2SC908-SK099999 BATTERY Diagram

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.89

BATTERY (HJ13L) | Use up to Frame SN SK000093.

31500-MLN-E02

$365.91

BATTERY (HJ13L) | Use from Frame SN SK000094.

31500-MLN-E03

$365.91

COVER, STARTER MAGNETIC SWITCH

32406-MKK-D01

$7.21

CABLE, STARTER MOTOR

32410-MLF-Y10

$22.49

CABLE

32601-MLF-Y10

$26.05

SWITCH ASSY., STARTER MAGNETIC

35850-MFL-D01

$86.62

RUBBER, SHOCK

35856-MKF-D41

$14.31

TRAY, ECU

80121-MKS-E00

$20.69

BOX, BATTERY (LOWER)

80122-MKS-E00

$38.70

COVER, R. CANISTER (NOT AVAILABLE)

80123-MLF-E00

$5.94

STAY A, R. BATTERY BOX

80124-MKS-E00

$9.30

TRAY, BATTERY

80129-MKS-E00

$20.48

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

BOLT, FLANGE (6X12)

90021-GHB-620

$2.23

BOLT, SOCKET (5X9)

90111-MR5-000

$2.61

SCREW, SPECIAL (6X14)

90118-MJK-N20

$2.70

SCREW, SPECIAL (5X11)

90122-MJK-N20

$2.48

NUT, CLIP (5MM)

90677-KAN-961

$4.07

CLIP, BODY

90683-MBW-003

$2.16

CLIP, HARNESS BAND (96.9MM) (NATURAL)

91540-S0A-003

$6.33

CLIP, HARNESS BAND (NOT AVAILABLE)

91541-KPY-HE1

$1.54

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.67
