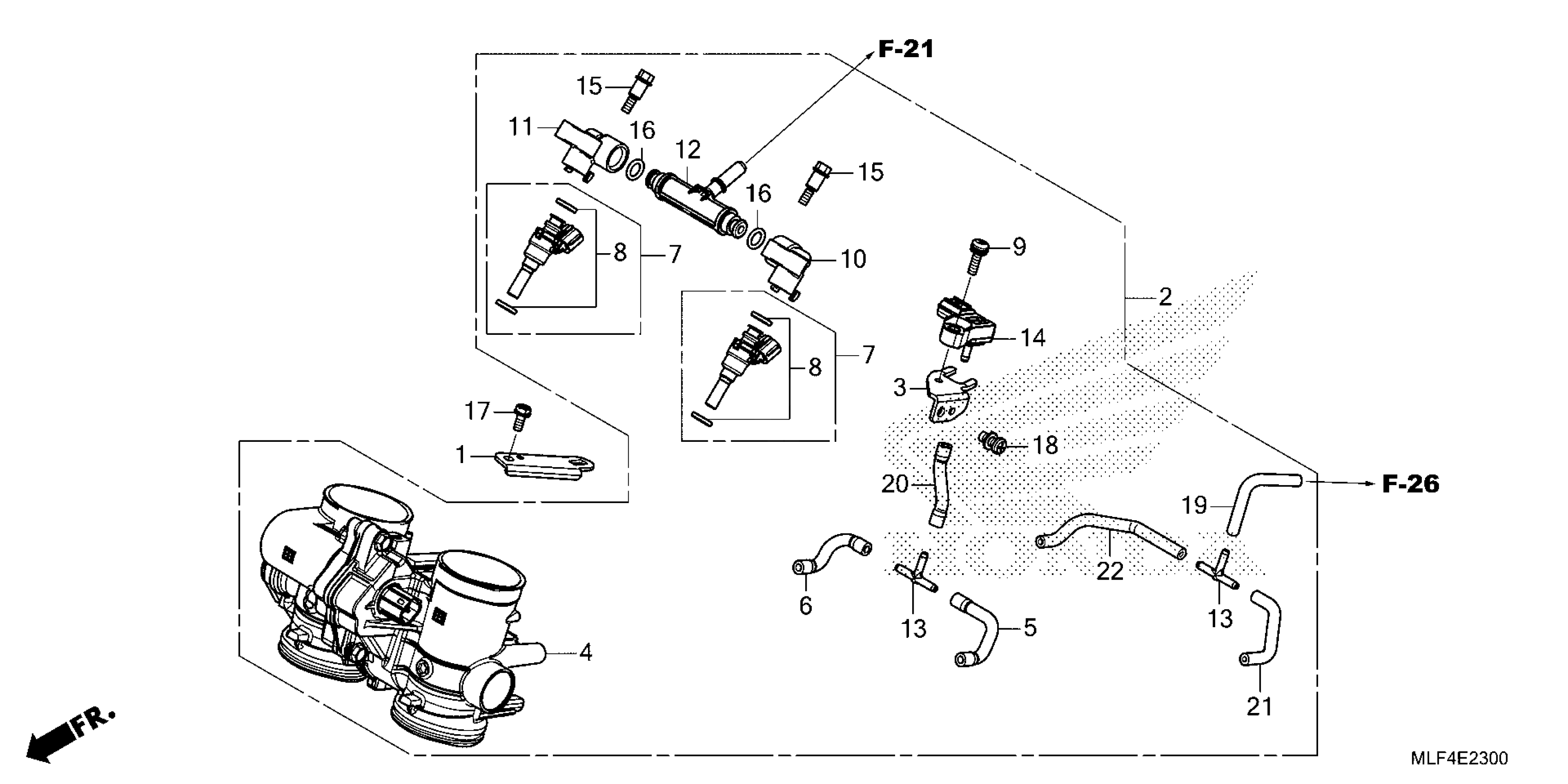

Honda NT1100DAC (25) MOTORCYCLE, JPN, VIN# JH2SC904-SK000001 TO JH2SC904-SK099999 THROTTLE BODY Diagram

#

Description
Price

1

STAY, CONNECTOR

16200-MKS-E00

$7.34

2

BODY ASSY. (GNJ5A A)

16400-MLF-E81

$952.49

3

STAY, PB SENSOR

16406-MLF-E81

$7.09

4

BODY SET

16410-MLF-E81

$596.33

5

TUBE, PB (#1)

16411-MKS-E00

$1.49

6

TUBE, PB (#2)

16412-MKS-E00

$1.49

7

INJECTOR ASSY., FUEL

16450-MLA-BA1

$96.79

8

SEAL SET, INJECTOR

16470-MLA-BA1

$32.44

9

BOLT-WASHER (6X18)

16542-MEL-003

$3.31

10

PIPE, FUEL

16610-MLA-BA1

$22.34

11

PIPE, FUEL

16620-MLA-BA1

$22.34

12

T-JOINT, FUEL

16630-MKS-E01

$29.57

13

JOINT, VACUUM TUBE (A)

17201-MG9-000

$15.94

14

SENSOR ASSY., MAP

37830-MKZ-J31

$98.98

15

BOLT, SHOULDER

90021-MGZ-D02

$2.90

16

O-RING (7.47X3.6)

91301-PLC-000

$3.11

17

BOLT-WASHER (5X12)

93401-05012-07

$1.49

18

SCREW-WASHER (6X14)

93892-06014-18

$1.49

19

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

20

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

21

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

22

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67
