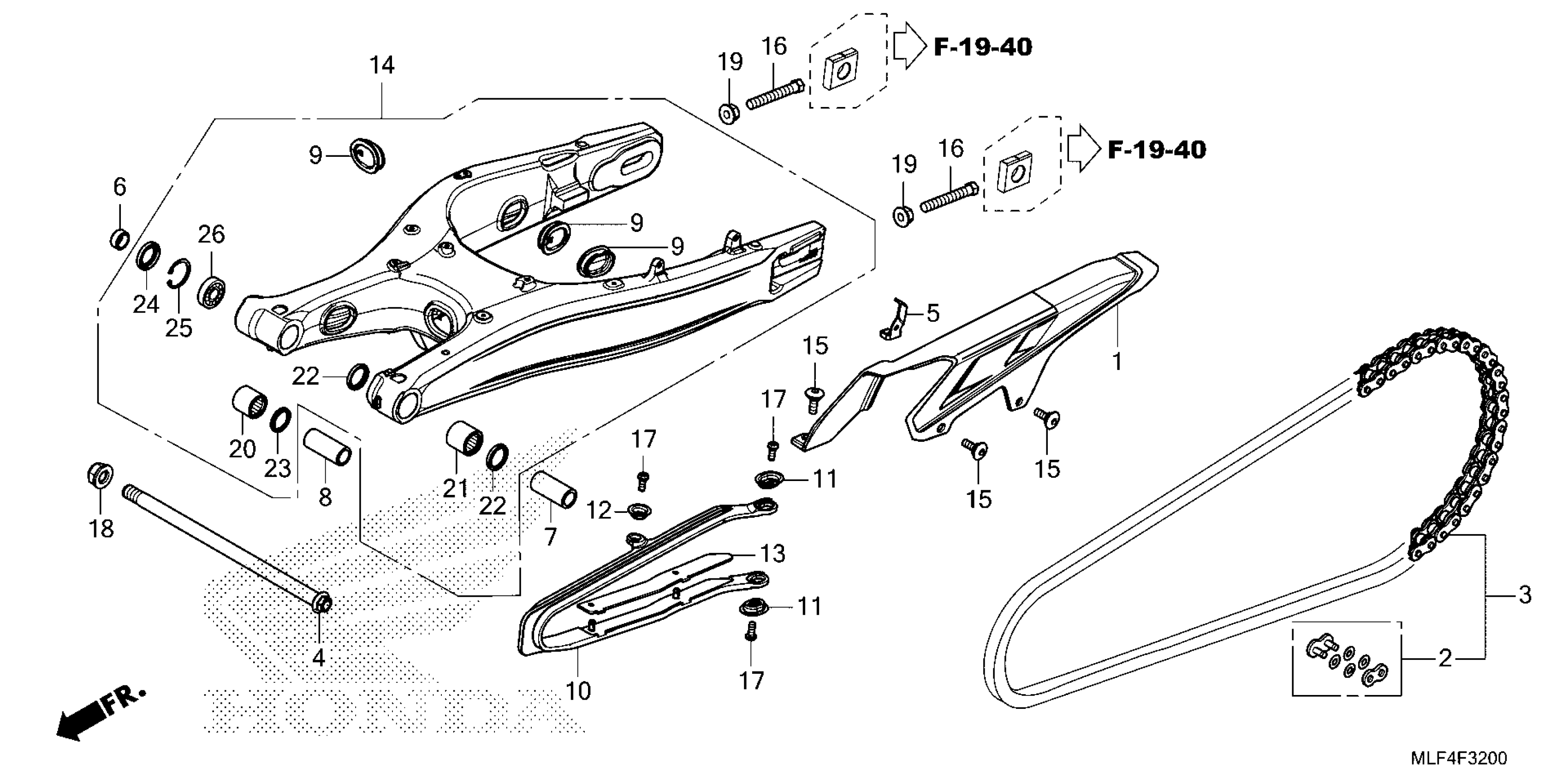

Honda NT1100DAC (25) MOTORCYCLE, JPN, VIN# JH2SC904-SK000001 TO JH2SC904-SK099999 SWINGARM Diagram

#

Description
Price

1

CASE, DRIVE CHAIN (NOT AVAILABLE)

40510-MLF-E00

$38.25

2

MASTER LINK

40531-MKS-E02

Unavailable

3

CHAIN, DRIVE

40540-MKS-E02

$162.03

4

BOLT, SWINGARM PIVOT

52101-MKS-E00

$50.01

5

STAY, CHAIN CASE

52121-MJL-D70

$7.24

6

COLLAR A, PIVOT

52141-MKS-E00

$4.79

7

COLLAR, L. PIVOT DISTANCE

52142-MKS-E00

$15.84

8

COLLAR, R. PIVOT DISTANCE

52143-MKS-E00

$15.41

9

CAP, RR. SWINGARM

52161-KZZ-900

$2.46

10

SLIDER, CHAIN

52170-MKK-D00

$53.07

11

WASHER, CHAIN SLIDER

52171-KR6-000

$2.38

12

WASHER, CHAIN SLIDER

52171-MAN-620

$2.97

13

RUBBER, CHAIN SLIDER

52171-MKK-D00

$9.93

14

SWINGARM SUB-ASSY., RR. (NOT AVAILABLE)

52200-MLF-E00

$926.03

15

BOLT, SOCKET (6X18)

90103-K53-D00

$3.22

16

BOLT, HEX. (8X50)

90106-MLF-E80

$2.01

17

SCREW, PAN (5X12)

90107-MJP-G50

$1.74

18

NUT, SPECIAL U (16MM) This part replaces 90305-MBZ-C50.

90305-MCB-610

$7.55

18

NUT, SPECIAL U (16MM)

90305-MCB-610

$7.55

19

NUT, HEX. (10MM)

90309-357-000

$3.25

20

BEARING, NEEDLE (24X31X28) (NOT AVAILABLE)

91063-MZ1-003

$15.85

21

BEARING, NEEDLE (NTN)

91071-MT7-003

$22.38

22

DUST SEAL (25X33X4)

91202-MAL-601

$6.65

23

OIL SEAL (24X31X3.5) (NOT AVAILABLE)

91203-GC8-003

$8.76

24

DUST SEAL (23X35X5)

91214-MAL-601

$7.59

25

CIRCLIP (INNER) (35MM)

94520-35000

$2.32

26

BEARING, RADIAL BALL (6003)

96100-60030-10

$12.99
