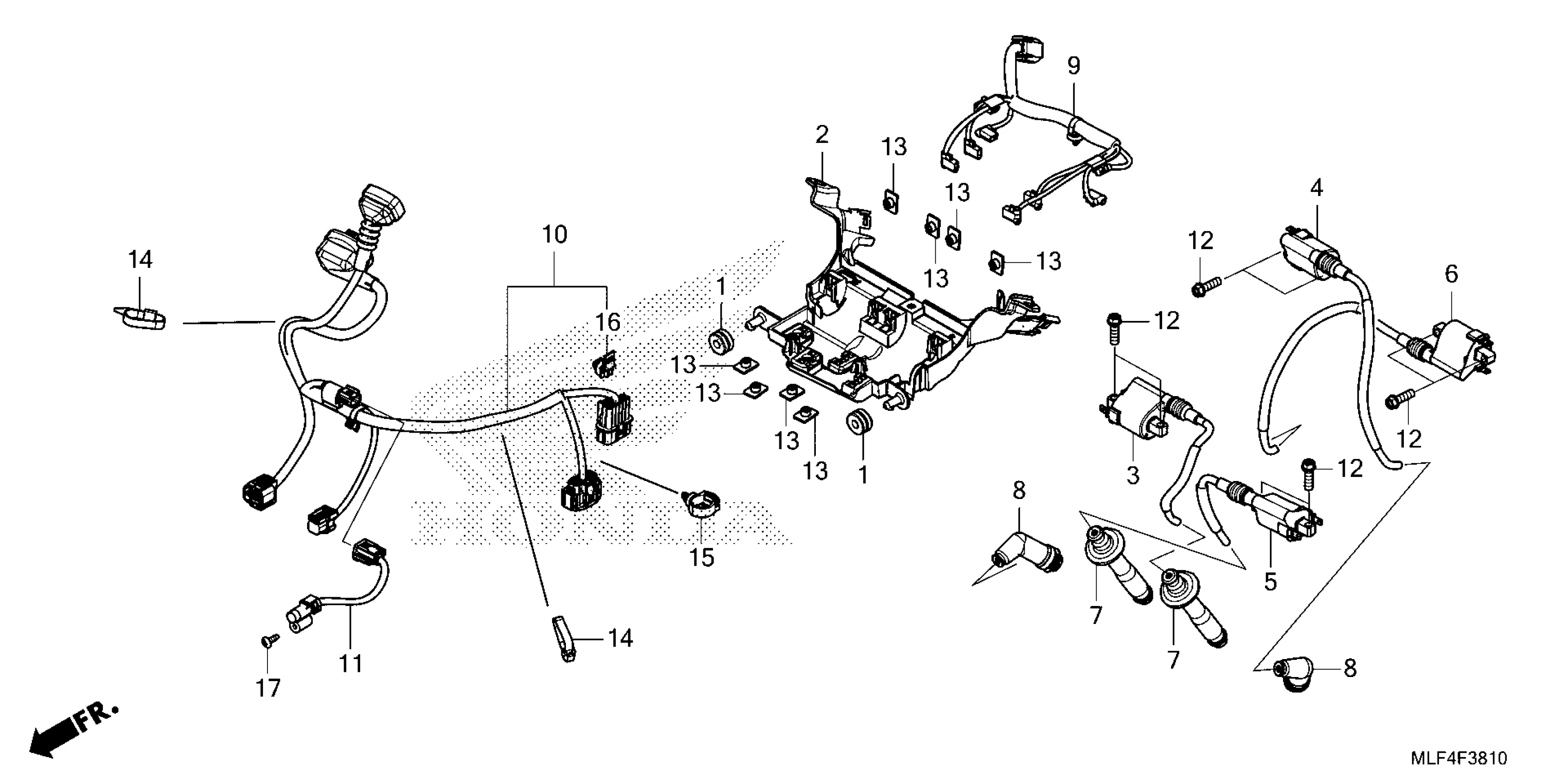

Honda NT1100DAC (25) MOTORCYCLE, JPN, VIN# JH2SC904-SK000001 TO JH2SC904-SK099999 SUB HARNESS@IGNITION COIL Diagram

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.77

TRAY, IGNITION COIL

19125-MKS-E00

$42.41

COIL, IGNITION (TOP-1) (NOT AVAILABLE)

30510-MLF-E01

$44.52

COIL, IGNITION (SIDE-1) (NOT AVAILABLE)

30520-MLF-E01

$44.52

COIL, IGNITION (TOP-2) (NOT AVAILABLE)

30530-MLF-E01

$44.52

COIL, IGNITION (SIDE-2) (NOT AVAILABLE)

30540-MLF-E01

$45.41

CAP ASSY.

30700-MLG-E01

$44.21

CAP ASSY., NOISE SUPPRESSOR

30701-MJP-G51

$26.26

SUB-HARNESS, IGNITION

32102-MKS-E00

$26.84

SUB-HARNESS, FR.

32103-MLF-CD0

$67.59

SENSOR, OPEN AIR TEMPERATURE

37880-MKS-E21

$51.52

BOLT, FLANGE (6X20)

90020-GHB-660

$2.12

NUT, SPECIAL (6X7)

90303-HA0-680

$3.57

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$2.90

CLIP, WIRE HARNESS *NH1L* (BLACK)

91558-SD5-003

$7.04

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.42

SCREW, TAPPING (4X12)

93913-24220

$0.83
