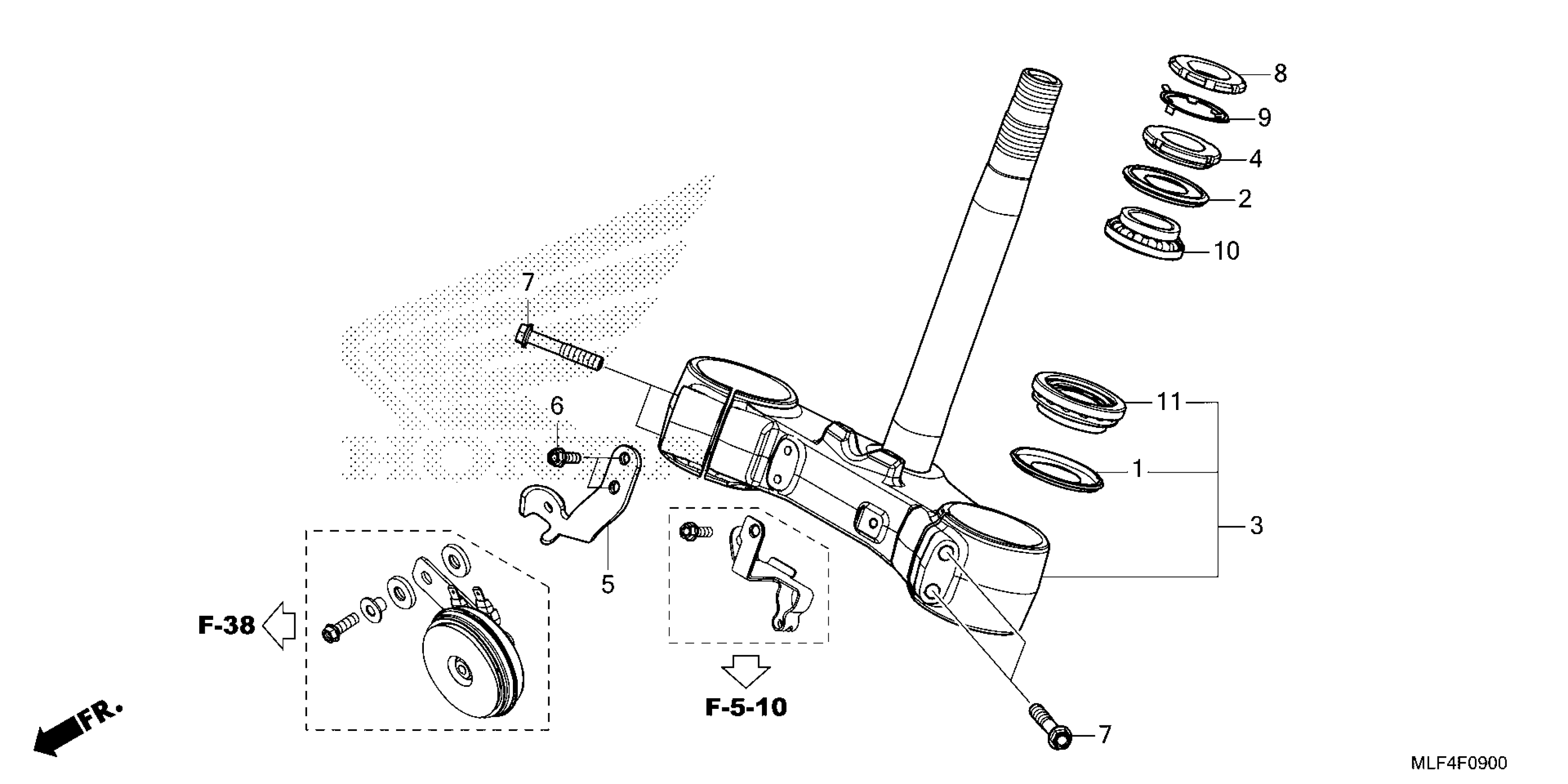

Honda NT1100DAC (25) MOTORCYCLE, JPN, VIN# JH2SC904-SK000001 TO JH2SC904-SK099999 STEERING STEM Diagram

#

Description

Price

1

DUST SEAL, STEERING HEAD

53214-371-010

$13.33

2

DUST SEAL, STEERING HEAD (ARAI)

53214-MM9-003

$7.97

3

STEM SUB-ASSY., STEERING (NOT AVAILABLE)

53219-MLF-E00

$435.86

4

THREAD, STRG TOP

53221-GN5-850

$7.56

5

STAY, HORN (NOT AVAILABLE)

61406-MLF-E00

$10.37

6

BOLT, FLANGE (6X16) (NOT AVAILABLE)

90021-GHB-640

$1.50

7

BOLT (8X45)

90134-MEL-000

$2.92

8

THREAD, STEERING HEAD TOP (B)

90302-425-830

$21.73

9

WASHER, LOCK

90506-425-830

$7.05

10

BEARING, HEAD PIPE (UPPER) (KOYO)

91015-KT8-005

$36.57

11

BEARING, HEAD PIPE (LOWER) (KOYO)

91016-KT8-005

$36.57
