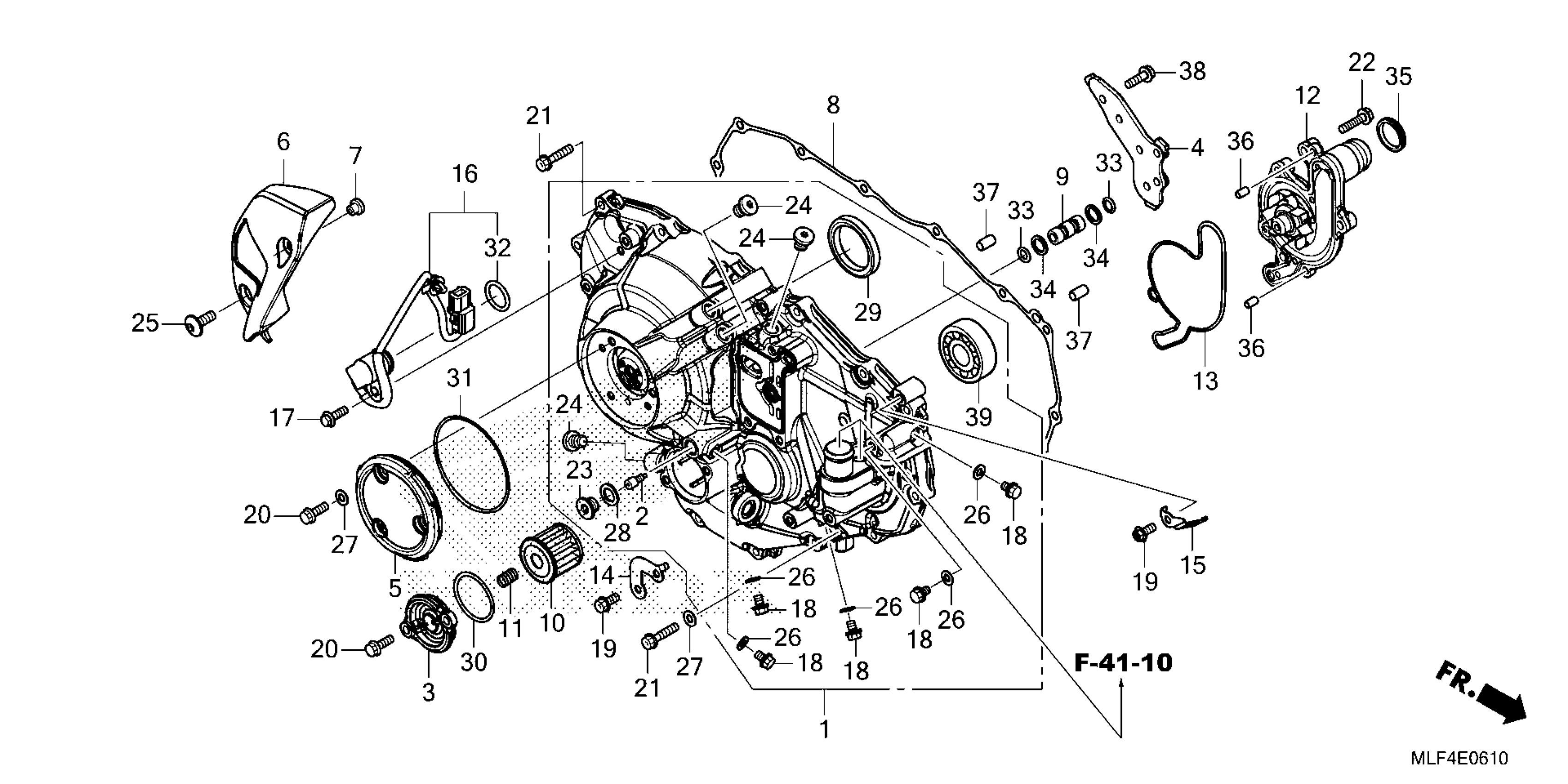

Honda NT1100DAC (25) MOTORCYCLE, JPN, VIN# JH2SC904-SK000001 TO JH2SC904-SK099999 RIGHT CRANKCASE COVER (2) Diagram

COVER, R. CRANKCASE

11330-MLA-A50

$420.52

ORIFICE

11335-MJP-G80

$16.35

COVER, OIL FILTER

11337-MLF-E70

$24.10

COVER (INNER)

11361-MJP-G80

$41.45

CAP, R. COVER (NOT AVAILABLE)

11375-MLF-E70

$56.71

COVER, R. RR. ENGINE

11381-MJP-G80

Unavailable

COLLAR

11385-MJF-A00

$2.80

GASKET, R. CRANKCASE COVER

11394-MJP-G51

$43.41

PIPE, OIL PASSAGE

15104-MGS-D20

$8.90

ELEMENT, OIL FILTER

15412-MGS-D21

$7.60

SPRING, OIL FILTER

15414-MEB-670

$2.39

WATER PUMP

19200-MJP-G50

$179.00

GASKET, WATER PUMP BODY

19226-MJP-G50

$9.59

STAY, HARNESS CLIP

32157-MJP-G80

$4.32

STAY, HARNESS CLIP

32158-MJP-G80

$3.55

SENSOR ASSY., ANGLE (40DEGREE)

38810-MJP-G81

Unavailable

BOLT, KNOCK (6MM)

90011-MGE-D00

$2.62

BOLT, FLANGE (6X8)

90026-GHB-600

$2.03

BOLT, FLANGE (6X14)

90026-GHB-630

$2.03

BOLT, FLANGE (6X18)

90026-GHB-650

$2.03

BOLT, FLANGE (6X28)

90026-GHB-690

$1.99

BOLT, FLANGE (6X25)

90030-GHB-680

$2.01

BOLT, SEALING (12X8)

90031-MJP-G80

$3.01

BOLT, SPECIAL (10MM)

90042-MJP-G80

$3.87

BOLT, SOCKET SPECIAL (6X17)

90085-MLA-A00

$2.20

WASHER, SEALING (6MM)

90404-HW1-670

$1.70

WASHER, SEALING (6MM)

90488-425-000

$2.07

WASHER (12MM)

90545-KF0-000

$2.90

BEARING, RADIAL BALL (40X52X7)

91004-MJP-G81

$27.62

O-RING (39.8X2.2) (ARAI)

91302-PA9-003

$3.91

O-RING (81X2.2)

91307-MGE-D01

$3.57

O-RING (16.5X2.5)

91310-MGE-D01

$4.38

O-RING (7.7X1.9)

91311-RFH-003

$2.38

RING, BACK-UP (8X11)

91315-MGS-D20

$3.04

SEAL, WATER PIPE

91315-MJP-G51

$2.19

PIN A, DOWEL (6X10) (YAMADA)

94301-06100

$2.04

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.04

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.61

BEARING, RADIAL BALL (6304)

96100-63040-00

$12.93
