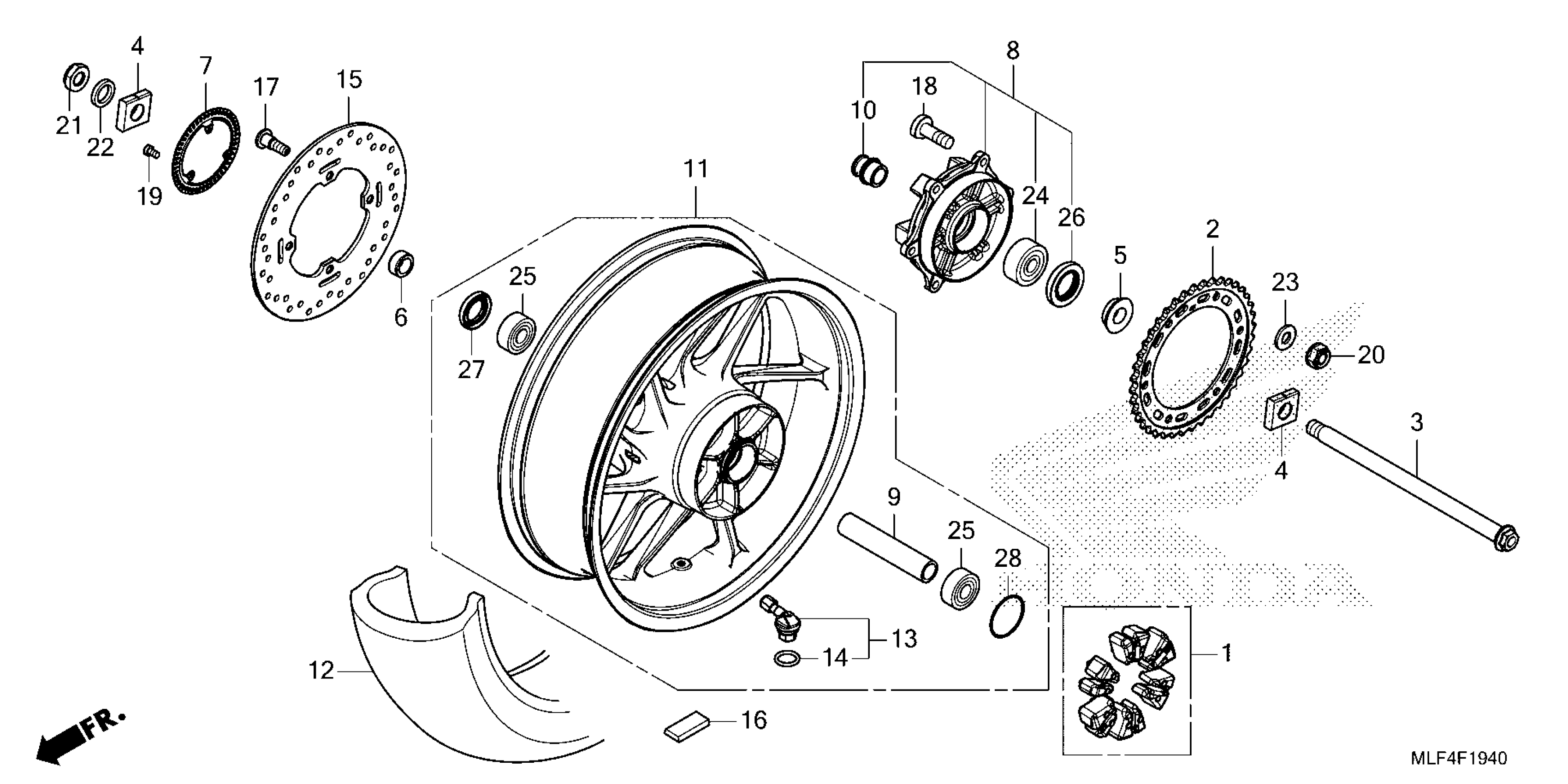

Honda NT1100DAC (25) MOTORCYCLE, JPN, VIN# JH2SC904-SK000001 TO JH2SC904-SK099999 REAR WHEEL Diagram

#

Description
Price

1

DAMPER SET, WHEEL (NOT AVAILABLE)

06410-MLF-E00

$42.12

2

SPROCKET (40T)

41201-MKR-D10

$71.38

3

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-MLF-E00

$34.10

4

COLLAR, RR. AXLE

42305-MJP-G50

$26.25

5

COLLAR, L. RR. WHEEL SIDE (NOT AVAILABLE)

42311-MLF-E00

$13.49

6

COLLAR, RR. BRAKE SIDE

42312-MGS-D10

$14.03

7

RING, RR. PULSER

42515-MKS-E20

$40.35

8

FLANGE SUB-ASSY., RR. DRIVEN (NOT AVAILABLE)

42615-MLF-E00

$135.04

9

COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE)

42620-MLF-E00

$21.19

10

COLLAR B, RR. WHEEL DISTANCE (NOT AVAILABLE)

42625-MLF-E00

$16.25

11

WHEEL SUB-ASSY., RR. (TYPE1) (NA USE ALT:42650-MLF-E01ZB)

42650-MLF-E01ZC

Unavailable

12

TIRE, RR. (180/55ZR17) (M/C 73W) (DUNLOP) (NOT AVAILABLE)

42711-MLF-E02

$257.12

12

TIRE, RR. (180/55ZR17) (M/C 73W) (METZELER) (NOT AVAILABLE)

42711-MLF-E03

$257.12

13

VALVE ASSY., CLAMP IN

42755-MKA-D81

$14.89

14

O-RING

42758-MKA-D81

$1.39

15

DISK, RR. BRAKE (NHK PRECISION)

43251-MLA-A01

$270.77

16

WEIGHT, BALANCE (10G)

44721-MLN-EQ1

Unavailable

16

WEIGHT, BALANCE (15G)

44722-MLN-EQ1

Unavailable

16

WEIGHT, BALANCE (20G)

44723-MLN-EQ1

$3.70

17

BOLT (8X24)

90108-MLB-D00

$3.21

18

BOLT (10X30)

90121-MCF-D30

$2.67

19

BOLT, TORX (5X8)

90131-MGE-000

$2.80

20

NUT, U (10MM)

90304-KAE-871

$4.03

21

NUT, U (18MM)

90306-MCS-G01

$6.35

22

WASHER (18X32X2)

90401-KZ4-890

$4.16

23

WASHER (10MM)

90502-MCF-000

$2.55

24

BEARING, ANGULAR BALL (28X56X15)

91051-MFL-003

$32.93

25

BEARING, RADIAL BALL (6204UU) (NSK)

91053-MKY-D51

$13.62

26

DUST SEAL (35X56X7.5)

91251-MFL-003

$6.80

27

DUST SEAL (30X47X7.5)

91253-MAE-003

$14.33

28

O-RING (51X2)

91352-MCF-003

$3.52
