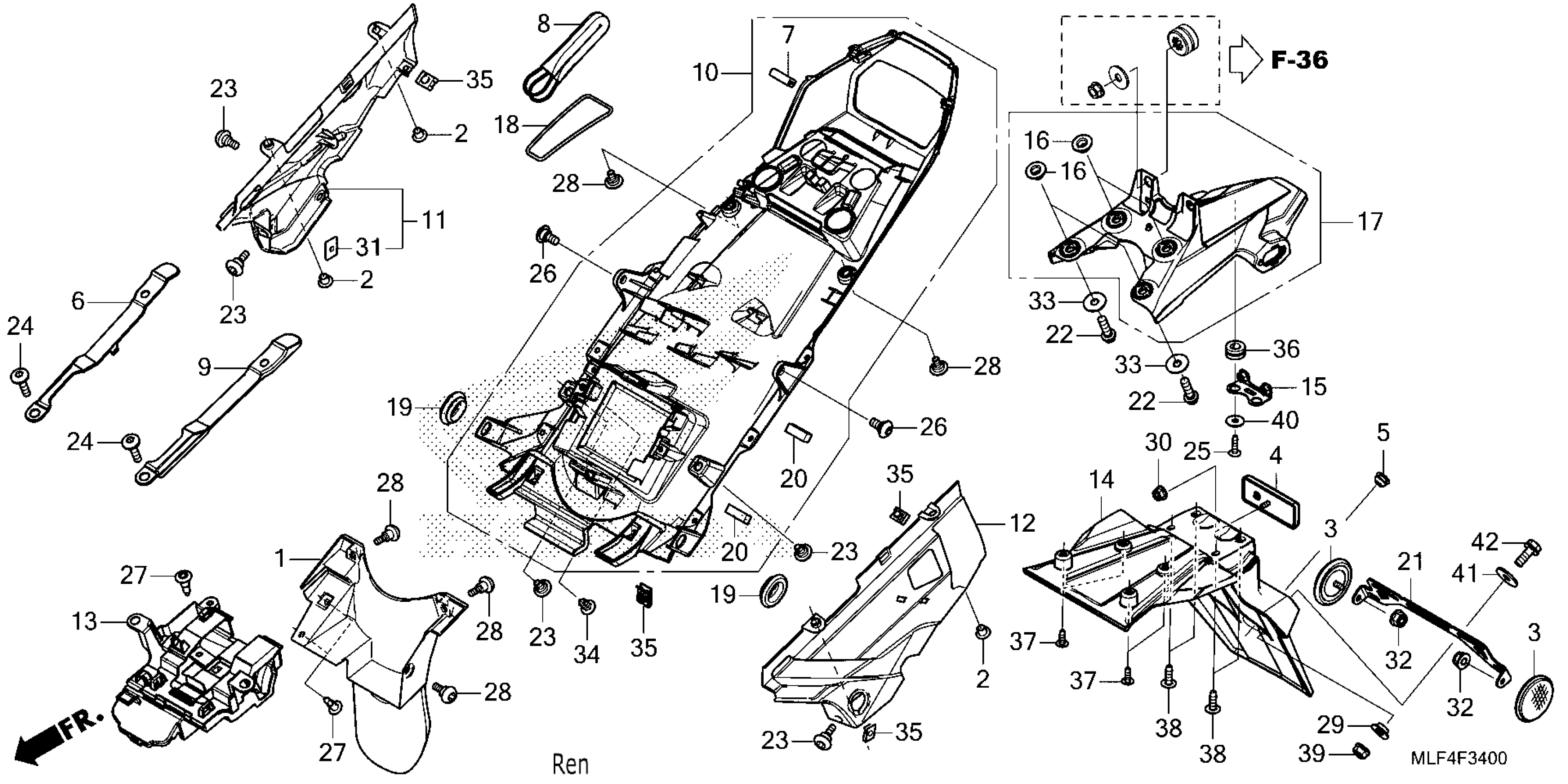

Honda NT1100DAC (25) MOTORCYCLE, JPN, VIN# JH2SC904-SK000001 TO JH2SC904-SK099999 REAR FENDER Diagram

SPLASH GUARD

17218-MKS-E00

$51.88

COLLAR, TAILLIGHT

33712-GC6-000

$2.80

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$11.90

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.60

PLUG, HANDLE COVER (LOWER)

53125-174-670

$1.77

COVER, R. ST (LOWER)

77160-MLF-E80

$5.49

PROTECTOR, RUBBER

77212-MFJ-D00

$1.58

WIRE, HELMET SET

77236-KAZ-780

$7.89

COVER, L. ST (LOWER)

77260-MLF-E80

$5.49

FENDER B, RR.

80105-MLF-E80

$62.06

COVER, R. FENDER B

80106-MKS-E20

$22.33

COVER, L. FENDER B

80107-MKS-E20

$22.01

TRAY, BODY CONTROL UNIT

80109-MKS-E00

$24.35

FENDER A, RR.

80110-MLF-A80

$69.55

BRACKET, LICENSE LIGHT

80116-MKS-E00

$6.59

COLLAR, FENDER

80118-MFJ-D00

$3.86

STAY SET, FENDER A (TYPE1) (WL) (NOT AVAILABLE)

80120-MLF-E00ZA

$55.64

BAND, TOOL

80123-GN5-900

$2.43

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

MAT, RR. FENDER (NOT AVAILABLE)

83705-MLF-E00

Unavailable

STAY, REFLECTOR

84700-MKJ-A00

$41.70

BOLT, FLANGE (6X20)

90020-GHB-660

$2.12

SCREW, SPECIAL (5X14)

90102-MKA-D80

$2.64

SCREW, PAN (5X20)

90103-MGH-H20

$2.12

SCREW, TAPPING (4X16)

90112-MKA-D80

$2.12

SCREW, SPECIAL (6X14)

90115-MGZ-J00

Unavailable

CLIP, BUMPER SEAL

90116-SP0-003

$4.40

SCREW, SPECIAL (5X11)

90122-MJK-N20

$2.26

COLLAR (6X4)

90127-KF0-770

$3.18

NUT, FLANGE (5MM) (FUSE RASHI)

90301-MG8-000

$4.25

NUT, SPECIAL (6X7)

90303-HA0-680

$3.57

NUT U, FLANGE (6MM)

90305-MKC-A01

$2.41

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.67

CLIP, BRUSH

90656-MGH-641

$2.03

NUT, CLIP (5MM)

90677-KAN-961

$3.79

RUBBER, TAILLIGHT MOUNTING

90851-961-000

$3.51

SCREW, TAPPING (4X12)

93903-24380

Unavailable

SCREW, TAPPING (5X16)

93903-25380

$0.83

NUT, FLANGE (6MM)

94050-06000

$0.59

WASHER, PLAIN (4MM)

94103-04700

$0.86

WASHER, PLAIN (6MM)

94103-06800

$0.71

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.48
