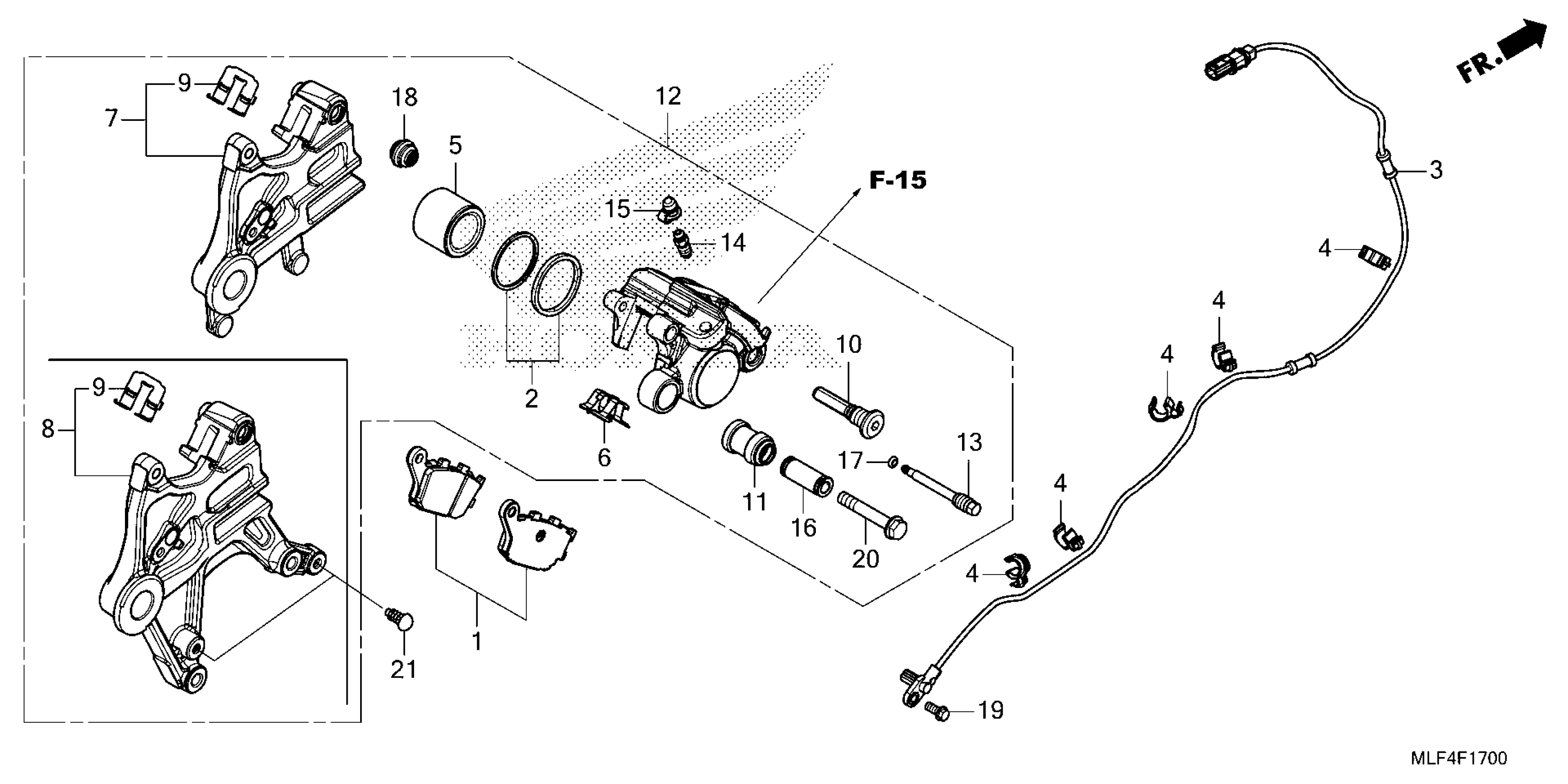

Honda NT1100DAC (25) MOTORCYCLE, JPN, VIN# JH2SC904-SK000001 TO JH2SC904-SK099999 REAR BRAKE CALIPER Diagram

Description

Price

PAD SET, RR.

06435-MEJ-026

$60.08

SEAL SET, PISTON

06451-443-405

$13.23

SENSOR, RR. WHEEL SPEED (NOT AVAILABLE)

38510-MLF-E01

$58.22

CLAMP, ABS WIRE (D12)

38517-MGE-003

$2.72

PISTON

43107-KT7-761

$37.87

SPRING, PAD

43108-MBB-006

$6.19

BRACKET, RR.

43110-MJP-G81

$200.79

RETAINER

43112-MV9-016

$10.65

BOLT, PIN

43131-KW3-006

$10.29

BOOT, SLEEVE

43132-KT7-761

$8.52

CALIPER SUB-ASSY., RR. (NISSIN) (MSDS)

43150-MJP-G81

$343.69

PIN, HANGER

43215-KZ4-J41

$5.25

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

SLEEVE

45111-MA3-006

$13.38

RING, STOPPER

45111-MAJ-G41

$3.80

BOOT B

45133-MA3-006

$5.46

BOLT, FLANGE (6X14)

90117-MKS-E00

$2.31

BOLT, FLANGE (8X49)

90180-MN8-006

$6.07

PLUG, HOLE

90656-MGE-003

$1.49
