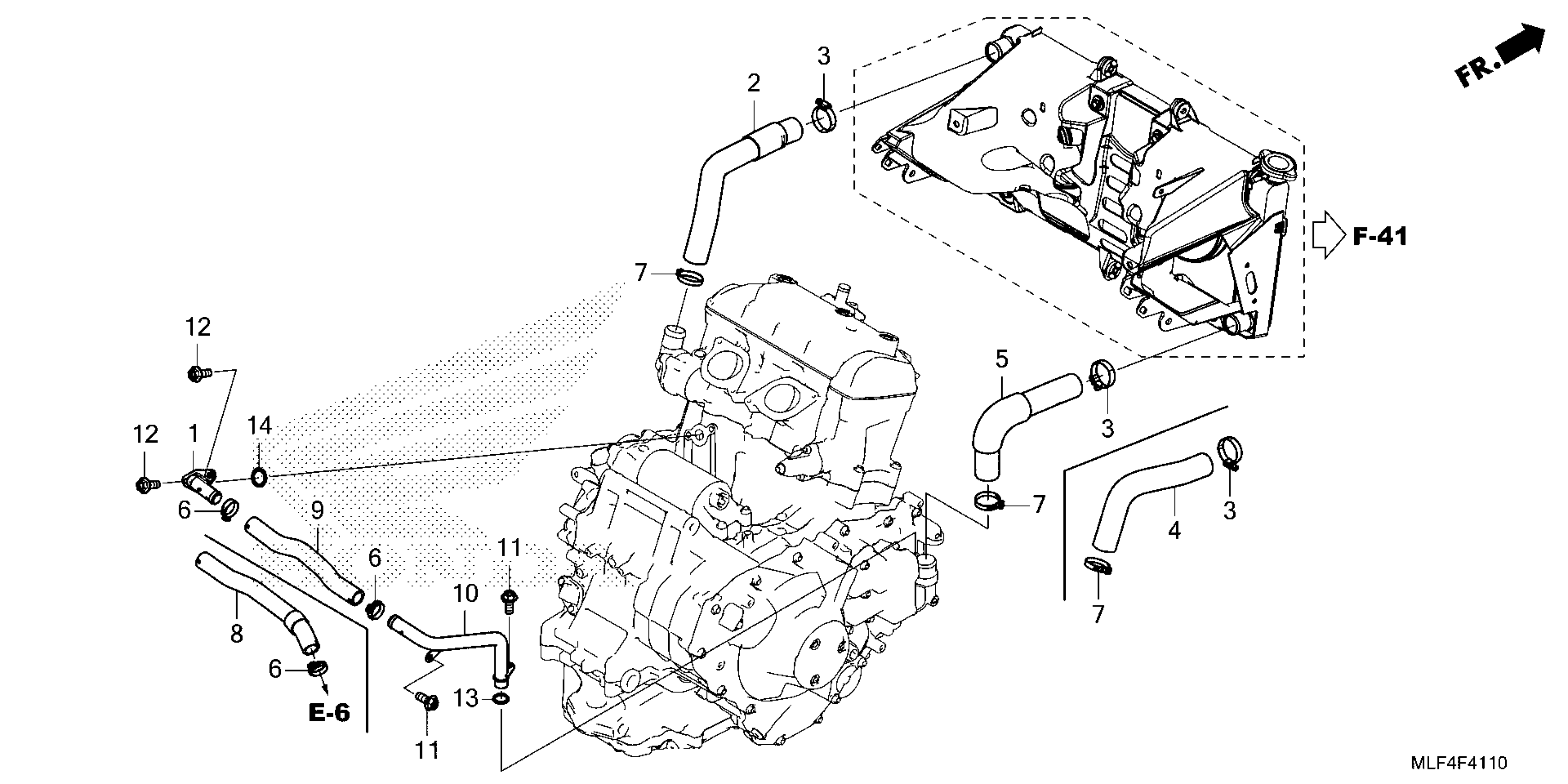

Honda NT1100DAC (25) MOTORCYCLE, JPN, VIN# JH2SC904-SK000001 TO JH2SC904-SK099999 RADIATOR HOSE@WATER PIPE Diagram

JOINT, WATER (LOWER)

19061-MJP-G50

$19.52

HOSE, RADIATOR (UPPER) (NOT AVAILABLE)

19501-MLF-E00

$23.72

CLAMP, WATER HOSE

19505-ML3-770

$7.08

HOSE, RADIATOR (LOWER) (NOT AVAILABLE)

19511-MLF-E70

$12.47

CLAMP, HOSE (D21)

19512-MKF-D41

$8.72

CLAMP, HOSE (D29.8)

19514-MKF-D41

$10.24

HOSE, WATER (LOWER)

19521-MKK-D50

$12.72

PIPE, WATER

19530-MJP-G80

$65.43

BOLT, FLANGE (6X14)

90026-GHB-630

$2.23

BOLT, FLANGE (6X16)

90026-GHB-640

$2.15

O-RING (15X2.5)

91301-MY9-003

$2.28

O-RING (17.4X2.9)

91304-HN8-003

$2.15
