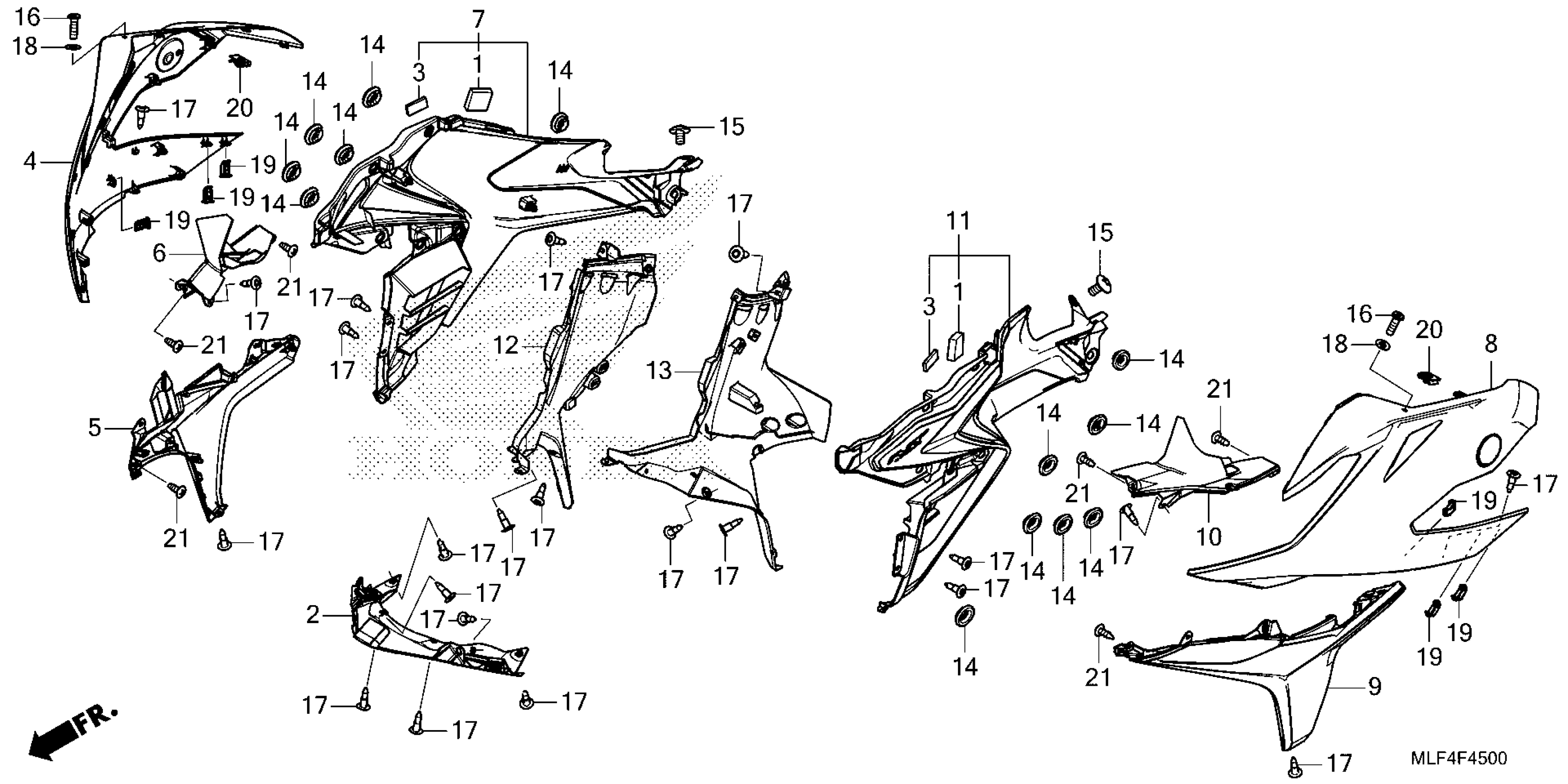

Honda NT1100DAC (25) MOTORCYCLE, JPN, VIN# JH2SC904-SK000001 TO JH2SC904-SK099999 MIDDLE COWL Diagram

FASTENER B, DUAL LOCK (20X20)

64165-MJF-A30

$3.52

COVER, FR. (LOWER)

64231-MLF-E80

$18.64

FASTENER B, DUAL LOCK (20X10)

64243-MJG-670

$2.00

COWL, R. *PB409PC*

64310-MLF-E80ZB

$312.06

COVER, R. LAYER

64321-MLF-A80

$31.77

COVER, R. LAYER

64331-MLF-E80

$13.17

COVER, R. SIDE

64341-MLF-E80

$42.94

COWL, L. *PB409PC*

64410-MLF-E80ZB

$312.06

COVER, L. LAYER

64421-MLF-A80

$31.77

COVER, L. LAYER

64431-MLF-E80

$13.17

COVER, L. SIDE

64441-MLF-E80

$42.94

COVER, R. (INNER) (NOT AVAILABLE)

64521-MLF-E00

$16.55

COVER, L. (INNER) (NOT AVAILABLE)

64571-MLF-E00

$15.38

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

SCREW, PAN (6X8)

90105-GAG-000

$0.65

BOLT, SPECIAL (5X16)

90116-MKF-D40

$2.32

CLIP, BUMPER SEAL

90116-SP0-003

$4.40

WASHER, THRUST (5MM)

90504-964-000

$1.72

CLIP, SLIDE

90651-K14-A31

Unavailable

NUT, CLIP (5MM)

90677-KAN-961

$3.79

SCREW, TAPPING (4X12)

93903-24380

Unavailable
