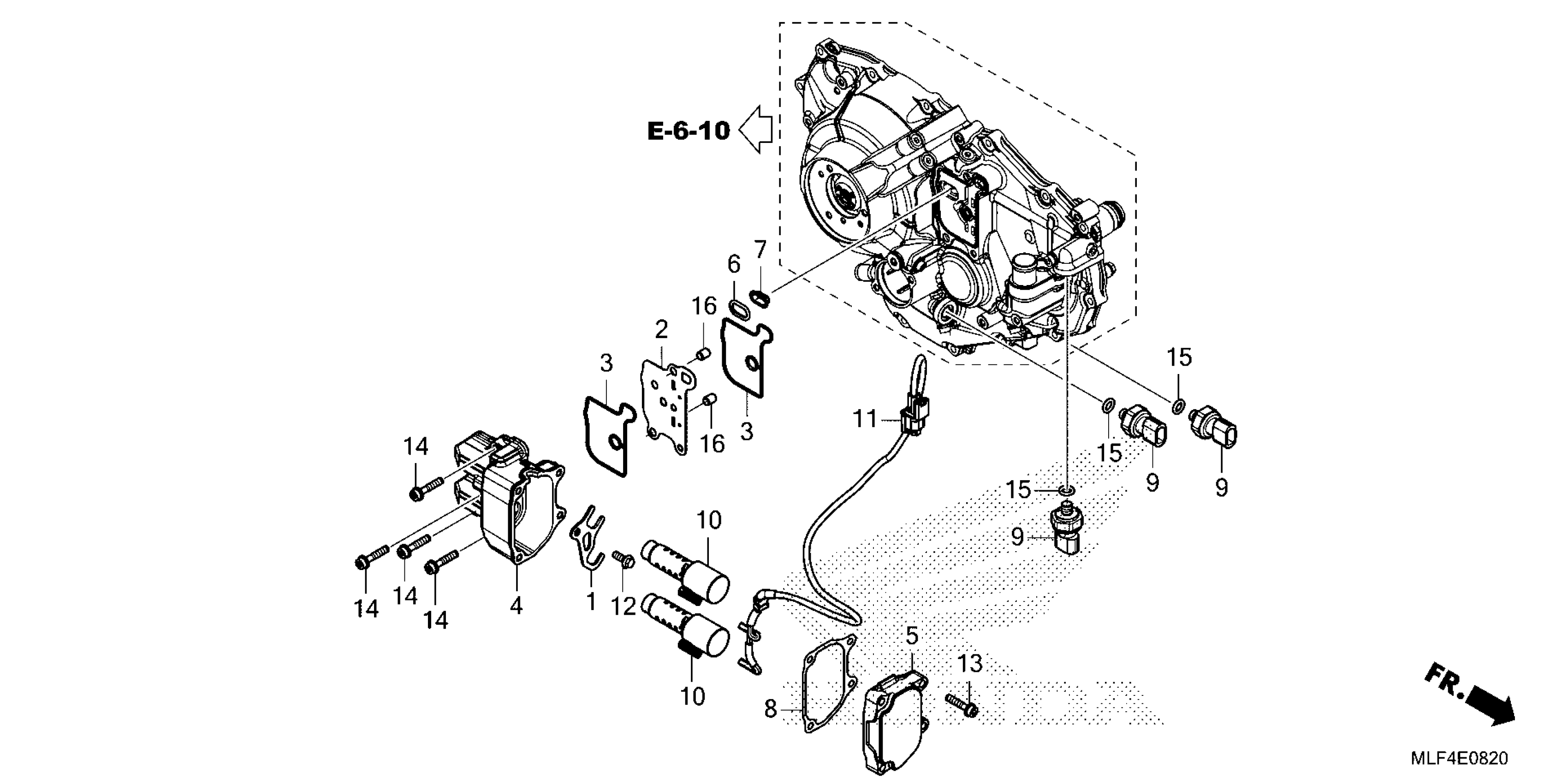

Honda NT1100DAC (25) MOTORCYCLE, JPN, VIN# JH2SC904-SK000001 TO JH2SC904-SK099999 LINEAR SOLENOID Diagram

Description

Price

PLATE, SOLENOID STOPPER

11338-MJP-G80

$11.74

PLATE, SEPARATOR

11362-MJP-G80

$6.75

GASKET, SOLENOID BODY

11364-MJP-G80

$3.92

BODY

11365-MLF-E70

$119.30

CVR, LINEAR SOLENOID

11366-MLF-E70

$49.87

GASKET, BASE

11371-MGS-D20

$4.15

FILTER, SPOOL VALVE

11372-MGS-D20

$15.84

GASKET, SOLENOID COVER

11398-MJP-G81

$10.15

SENSOR (2MPA)

37270-MLN-E61

$56.52

VALVE

38610-MLN-E61

$91.26

HARNESS

38611-MLN-E60

$43.64

BOLT, FLANGE (6X16)

90025-GHB-640

$2.33

BOLT, FLANGE (6X28)

90026-GHB-690

$2.18

BOLT, FLANGE (6X30)

90026-GHB-700

$2.18

O-RING (13X1.5)

91301-MEH-003

$1.62

PIN A, DOWEL (8X10)

94301-08100

$2.25
