Description

Price

1

SEAL, IGNITION SWITCH

30433-MBW-602

$2.84

2

LOCK SET

35010-MKS-A02

$461.52

3

SWITCH ASSY., COMBINATION

35100-MKS-A01

$163.00

4

BASE, CONTACT

35101-MKS-E01

$76.56

5

COVER, COMBINATION SWITCH

35106-MAT-A00

$10.52

6

EMBLEM, KEY | (Optional).

35113-MJK-N20

$3.46

7

KEY, BLANK | (Optional).

35121-MGP-A93

$23.42

8

HANDLEBAR (NOT AVAILABLE)

53100-MLF-E00

$241.33

9

WEIGHT B, HANDLEBAR

53105-MGZ-J80

$6.99

10

WEIGHT, HANDLEBAR

53105-MN4-010

$21.73

11

RUBBER A, HANDLE WEIGHT

53106-KR3-770

$3.92

12

RING, HANDLE WEIGHT SNAP

53108-KR3-940

$5.62

13

CLAMP, CABLE

53111-MLF-E80

$13.02

14

HOLDER, HANDLE (UPPER) (NOT AVAILABLE)

53131-MLF-E00

$29.37

15

HOLDER, HANDLE (LOWER) (NOT AVAILABLE)

53132-MLF-E00

$57.60

16

WASHER, HANDLE HOLDER

53135-MJP-G50

$1.85

17

RUBBER, HANDLE HOLDER

53136-MJP-G50

$2.23

18

BRIDGE, FORK TOP (NOT AVAILABLE)

53300-MLF-E00

$169.88

19

EMBLEM, PRODUCT (UEHARA)

86150-KPG-902

$4.02

20

SCREW-WASHER (5X22)

90020-MBW-610

$2.56

21

BOLT, SOCKET (8X28)

90105-MA6-750

$5.43

22

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.92

23

BOLT, SOCKET (8X28) (NOT AVAILABLE)

90113-GHB-680

$1.79

24

SCREW, OVAL (6X65)

90191-KBG-000

$4.94

25

NUT, U (10MM) NUT, SELF-LOCK (10MM)

90304-GE8-003

$3.67

26

NUT, STEERING STEM

90304-KGA-900

$3.13

27

WASHER, PLAIN (10MM)

90501-MJP-G50

$2.61

28

WASHER, STEERING STEM

90503-KGA-900

$1.54

29

SCREW, TAPPING (3X16)

91059-KY2-711

$2.97

30

CLIP, CONNECTOR (BLACK)

91533-S82-003

$5.10

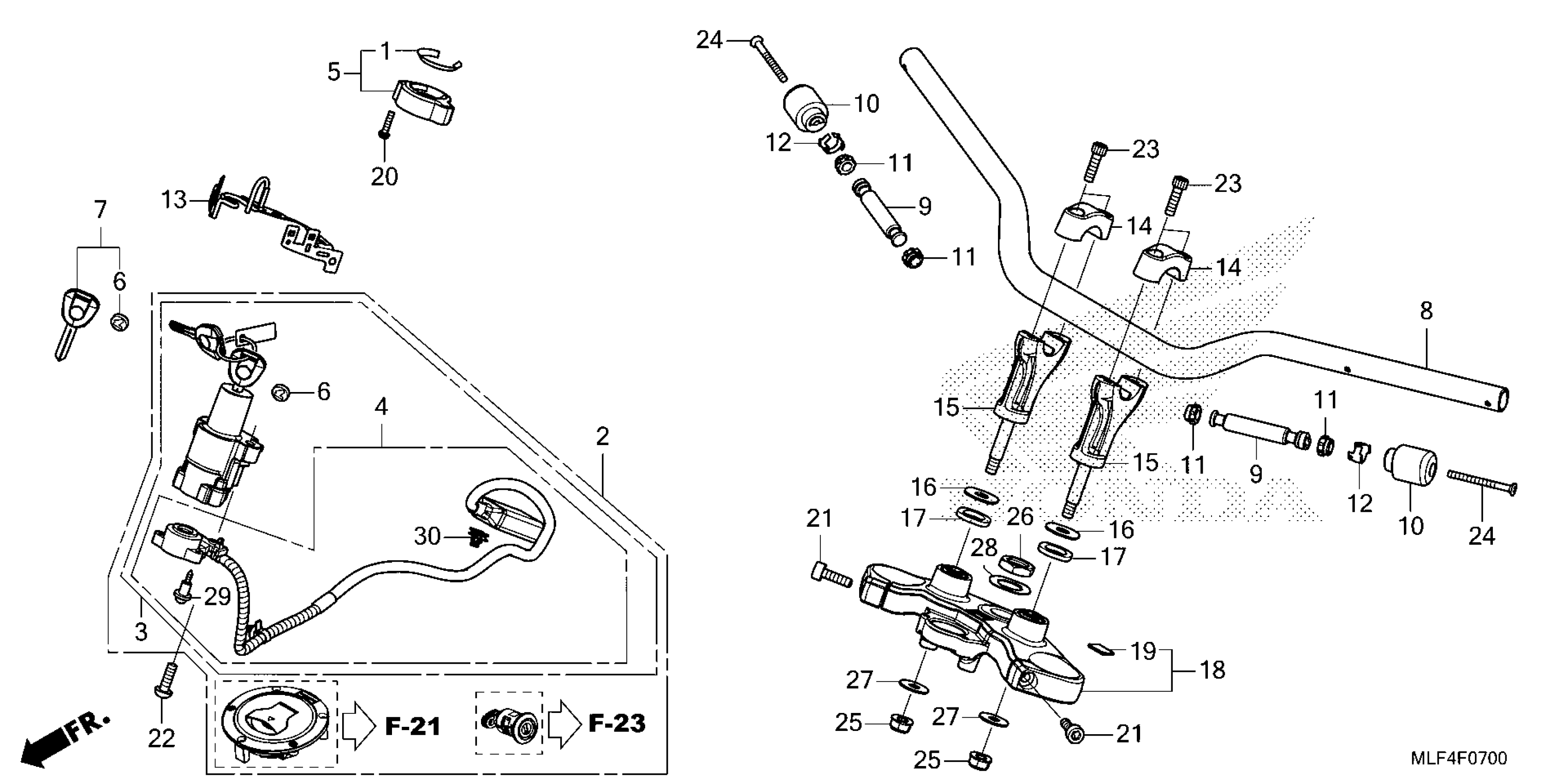

Honda NT1100DAC (25) MOTORCYCLE, JPN, VIN# JH2SC904-SK000001 TO JH2SC904-SK099999 HANDLEBAR@TOP BRIDGE Diagram
