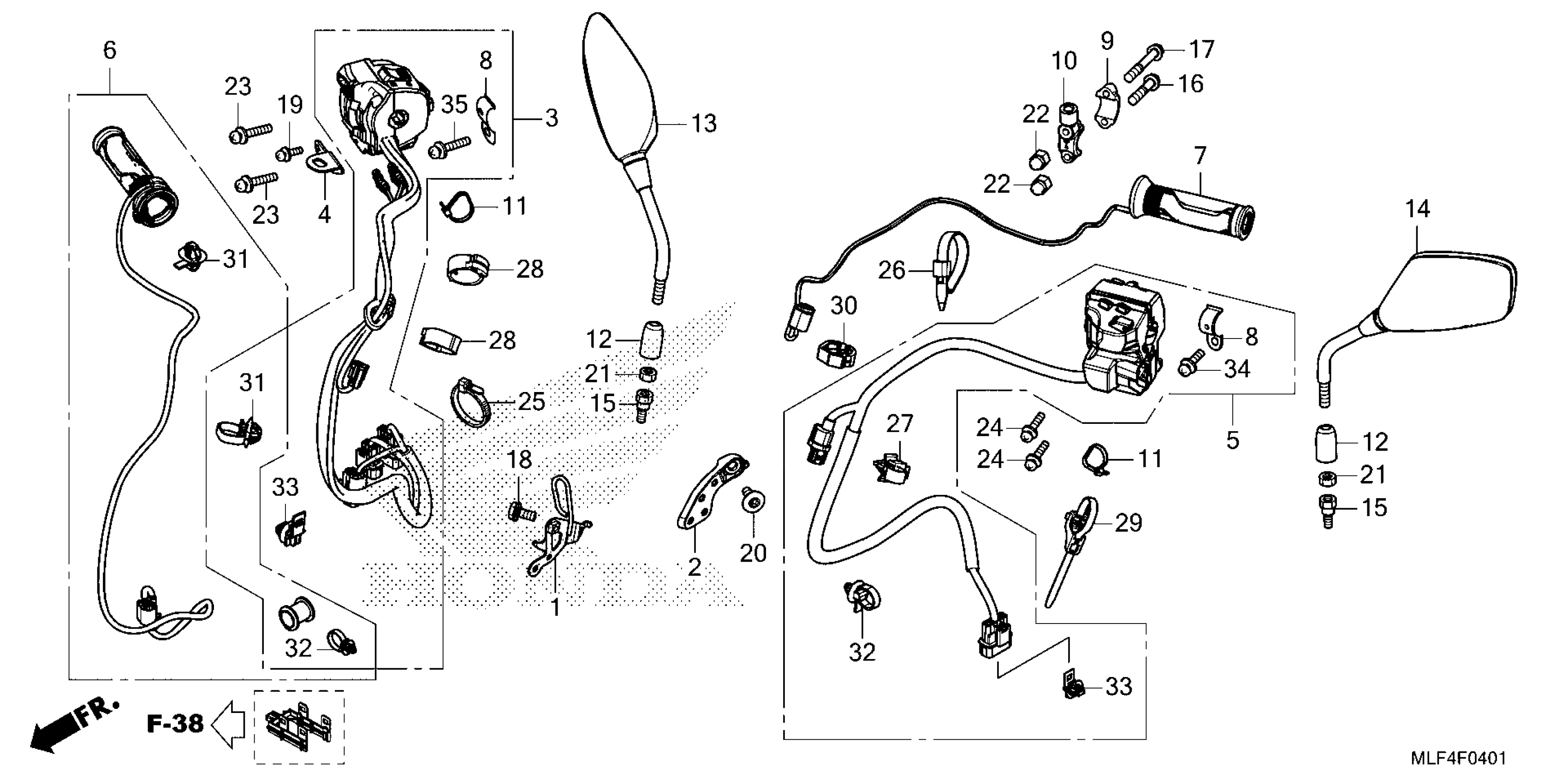

Honda NT1100DAC (25) MOTORCYCLE, JPN, VIN# JH2SC904-SK000001 TO JH2SC904-SK099999 HANDLE SWITCH@MIRROR (2) Diagram

#

Description
Price

1

GUIDE, CABLE

17925-MKS-E00

$11.47

2

STAY, CLIP

32151-MKK-D00

$7.90

3

SWITCH UNIT

35135-MLF-ED1

$252.87

4

STAY, GRIP HEATER WIRE

35138-MKS-E20

$3.50

5

SWITCH ASSY.

35200-MLF-AD1

$201.76

6

HEATER UNIT, R. HANDLE

35511-MKS-E21

$93.00

7

HEATER ASSY., L. (NOT AVAILABLE)

35520-MLF-305

$91.99

8

PLATE A, SETTING

37971-MKS-E01

$3.87

9

HOLDER, MASTER CYLINDER

45517-MFL-006

$11.63

10

HOLDER, MASTER CYLINDER

45518-MFN-D01

$11.39

11

BAND, NYLON

83645-GG0-000

$1.79

12

COVER, LOCK NUT

88130-MFG-D00

$1.59

13

MIRROR, R.

88210-MLN-E60

$66.54

14

MIRROR COMP L

88220-MLC-D00

$65.07

15

BOLT, ADAPTER (10MM)

90003-MW3-620

$7.45

16

BOLT, FLANGE (6X32)

90021-GHB-710

$2.29

17

BOLT, FLANGE (6X45)

90021-GHB-750

$2.71

18

BOLT, FLANGE (6X12)

90030-GHB-620

$1.97

19

SCREW-WASHER (4X8)

90110-MKS-E20

$1.34

20

BOLT, SPECIAL (6X15)

90114-MGE-D00

$1.90

21

NUT, HEX. (10MM) (LEFT HAND THREAD)

90201-MW3-620

$4.20

22

NUT, HEX. CAP (6MM) (NOT AVAILABLE)

90301-MLF-E70

$1.28

23

SCREW-WASHER (5X25)

90508-MGE-D00

$1.19

24

SCREW-WASHER (5X16)

90508-MGS-D30

$1.72

25

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$2.97

26

BAND, WIRE (BLACK)

90652-KT1-771

$4.28

27

STRAP, CABLE (118MM) (BLACK) (Honda Code 1170653)

90672-SA0-003

Unavailable

28

CLIP, WIRE HARNESS

90683-KJ2-003

$3.62

29

CLIP, HARNESS BAND (25MM)

90690-GHB-611

$2.01

30

CLAMP, HARNESS

90690-MEF-800

$1.21

31

CLIP, HARNESS BAND (157.7MM) (BLACK)

91540-S7S-003

$5.37

32

CLIP, HARNESS BAND (145MM) (BLACK)

91541-S0A-003

Unavailable

33

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.52

34

SCREW-WASHER (5X10)

93892-05010-08

$1.13

35

SCREW-WASHER (5X25)

93892-05025-08

$1.32
