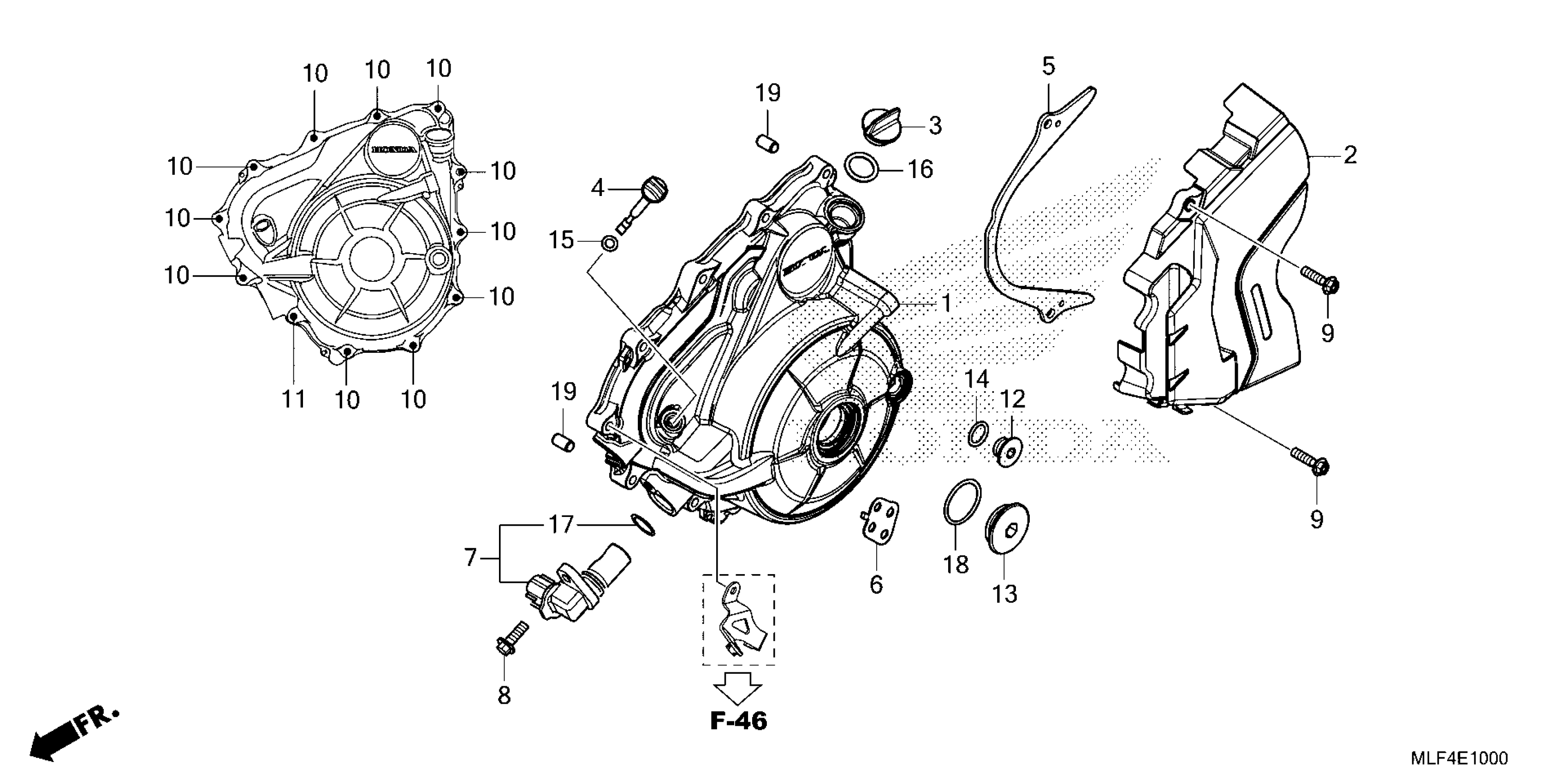

Honda NT1100DAC (25) MOTORCYCLE, JPN, VIN# JH2SC904-SK000001 TO JH2SC904-SK099999 GENERATOR COVER Diagram

Description

Price

COVER, ALTERNATOR

11320-MLA-A00

$268.89

COVER, L. RR.

11350-MJP-G50

$56.77

CAP, OIL FILLER

15611-KA4-710

$14.40

DIPSTICK, OIL

15650-MJP-G81

$16.10

GUIDE, DRIVE CHAIN

23812-MJP-G50

$12.30

STAY, HARNESS CLIP

32158-MJM-D00

$5.15

SENSOR ASSY., CRANK

37500-MKT-D02

$55.52

BOLT, FLANGE (6X18)

90026-GHB-650

$2.23

BOLT, FLANGE (6X25)

90026-GHB-680

$2.18

BOLT, FLANGE (6X28)

90026-GHB-690

$2.18

BOLT, FLANGE (6X40)

90026-GHB-740

$2.39

CAP (14MM)

90084-MN8-010

$12.82

CAP (30MM)

90087-MJP-G50

$16.80

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (6.5X2.2) (ARAI)

91303-MJ0-003

$4.06

O-RING (18X3)

91307-035-000

$2.92

O-RING

91333-PNC-006

$3.30

O-RING (29.7X2.4) (NOK)

91356-425-005

$2.92

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25
