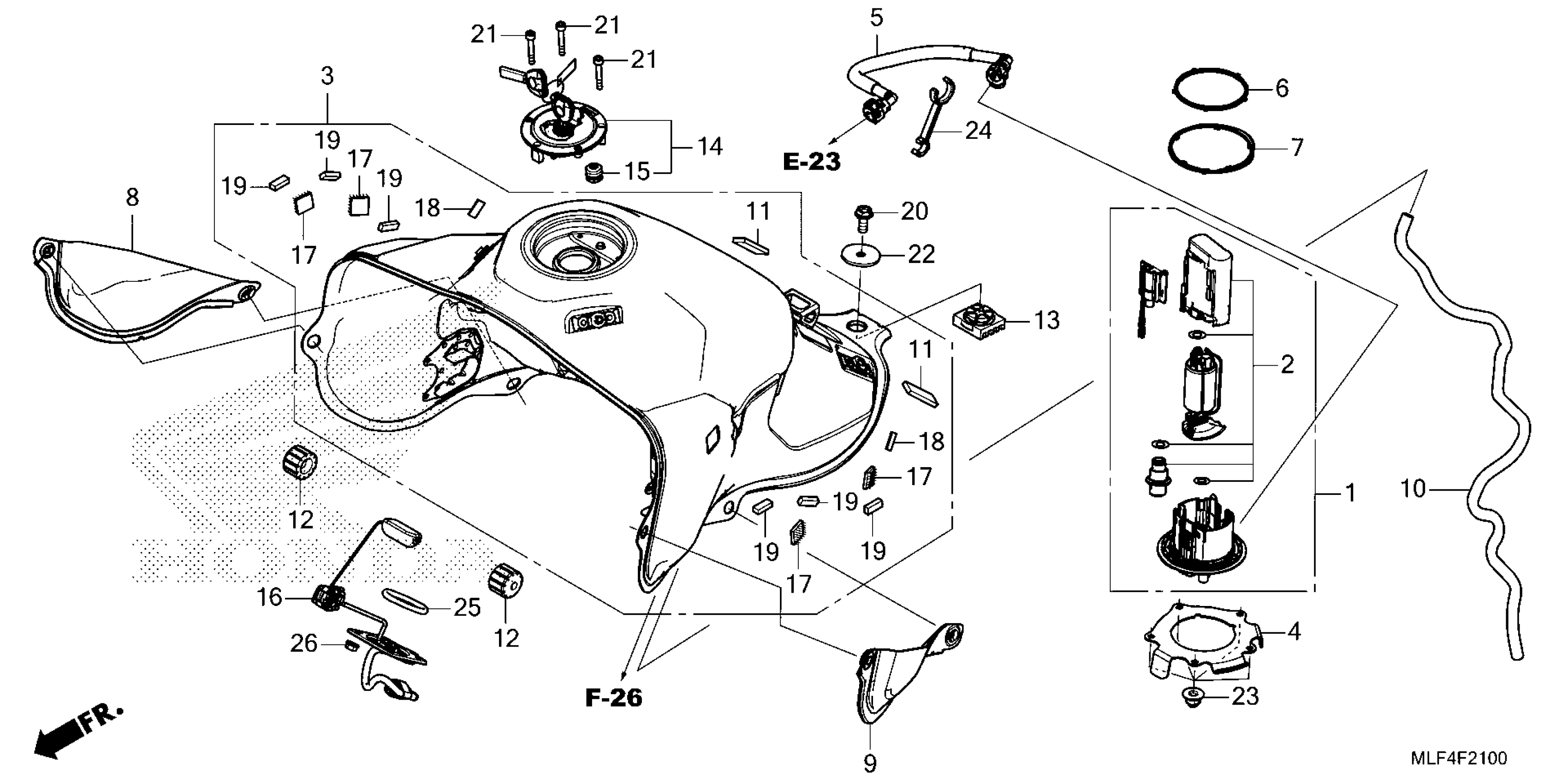

Honda NT1100DAC (25) MOTORCYCLE, JPN, VIN# JH2SC904-SK000001 TO JH2SC904-SK099999 FUEL TANK@FUEL PUMP Diagram

PUMP UNIT, FUEL (NOT AVAILABLE) (MSDS)

16700-MLF-E01

$369.72

FILTER ASSY., FUEL (NOT AVAILABLE)

16730-MLL-D01

$66.84

TANK, FUEL (TYPE3)

17500-MLF-E80ZA

$880.73

PLATE, FUEL PUMP SETTING

17506-MKT-D00

$18.61

HOSE, FUEL FEED (NOT AVAILABLE)

17526-MLF-E01

$50.69

GASKET, FUEL PUMP

17572-MKT-D00

$20.49

DUST SEAL

17573-MKT-D00

$6.80

RUBBER, R. COVER

17580-MLF-E80

$20.67

RUBBER, L. COVER

17585-MLF-E80

$20.67

TUBE, DRAIN

17590-MKS-E00

$30.28

RUBBER, TANK GUARD

17595-MKS-E00

$5.16

CUSHION, FR. FUEL TANK

17611-MKS-E00

$8.25

CUSHION, RR. FUEL TANK

17613-KFB-010

$7.15

CAP COMP

17620-MJE-D04

$209.19

SEAL, BREATHER

17621-MGP-D62

$5.14

FUEL UNIT

37800-MKS-E01

$113.44

FASTENER B, DUAL LOCK (20X20)

64243-MEW-920

$2.97

RUBBER, RR. FENDER

80102-MJS-J70

$1.57

RUBBER, TAILLIGHT

80103-MFE-670

$1.49

BOLT, FLANGE (6X14)

90030-GHB-630

$2.23

BOLT, SOCKET (4X24) (SUS)

90110-MGP-D60

$3.26

WASHER, TANK SETTING

90136-428-870

$1.56

NUT, OPEN STAY (6MM)

90301-693-000

$6.36

CLAMP

90650-MJP-G50

$4.70

O-RING (39.5X5)

91305-KEH-601

$8.05

NUT, FLANGE (6MM)

94050-06000

$1.49
