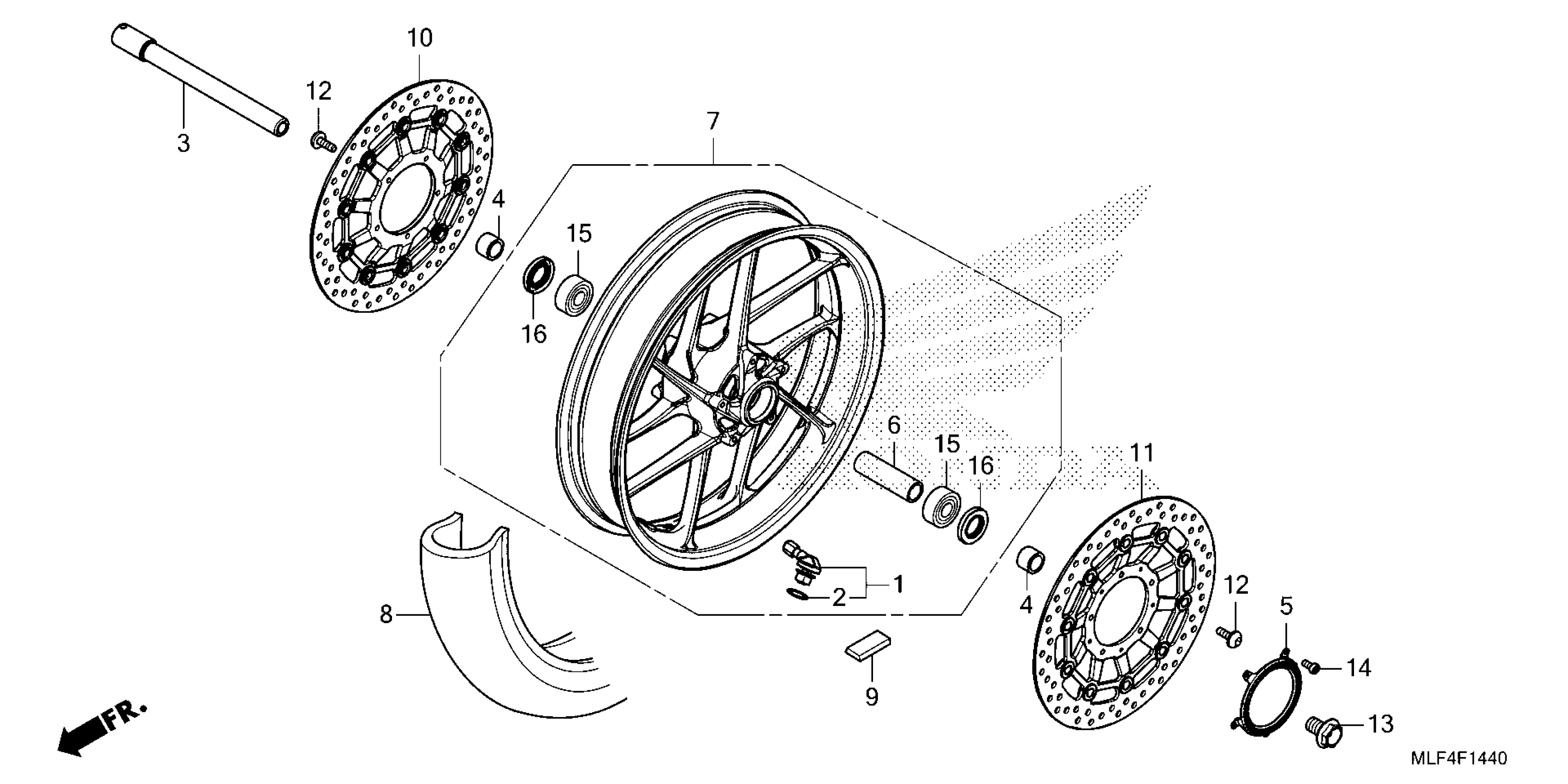

Honda NT1100DAC (25) MOTORCYCLE, JPN, VIN# JH2SC904-SK000001 TO JH2SC904-SK099999 FRONT WHEEL Diagram

VALVE ASSY., CLAMP IN

42755-MKA-D81

$14.89

O-RING

42758-MKA-D81

$1.39

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-MLF-E00

$34.03

COLLAR, L. FR. WHEEL SIDE (BOTH SIDES)

44312-MCE-950

$9.77

RING, FR. PULSER (TYPE2)

44515-MKF-D40ZB

$27.75

COLLAR, FR. AXLE DISTANCE

44620-MGC-N20

$13.58

WHEEL SUB-ASSY., FR. (TYPE1) (NOT AVAILABLE)

44650-MLF-E01ZB

$542.83

TIRE, FR. (120/70ZR17) (M/C 58W) (DUNLOP) (NOT AVAILABLE)

44711-MLF-E02

$160.87

TIRE, FR. (120/70ZR17) (M/C 58W) (METZELER) (NOT AVAILABLE)

44711-MLF-E03

$160.87

WEIGHT, BALANCE (10G)

44721-MLN-EQ1

Unavailable

WEIGHT, BALANCE (15G)

44722-MLN-EQ1

Unavailable

WEIGHT, BALANCE (20G)

44723-MLN-EQ1

$3.70

DISK, R. FR. BRAKE (YUTAKA) (NOT AVAILABLE)

45120-MLF-E01

$367.06

DISK, L. FR. BRAKE (YUTAKA) (NOT AVAILABLE)

45220-MLF-E01

$367.06

BOLT (6X17)

90103-MLC-D00

$1.91

BOLT, FR. AXLE

90112-MKN-D50

$2.42

BOLT, TORX (5X10)

90131-KFK-630

$2.77

BEARING, RADIAL BALL (6204UU) (NSK)

91053-MKY-D51

$13.62

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.49
