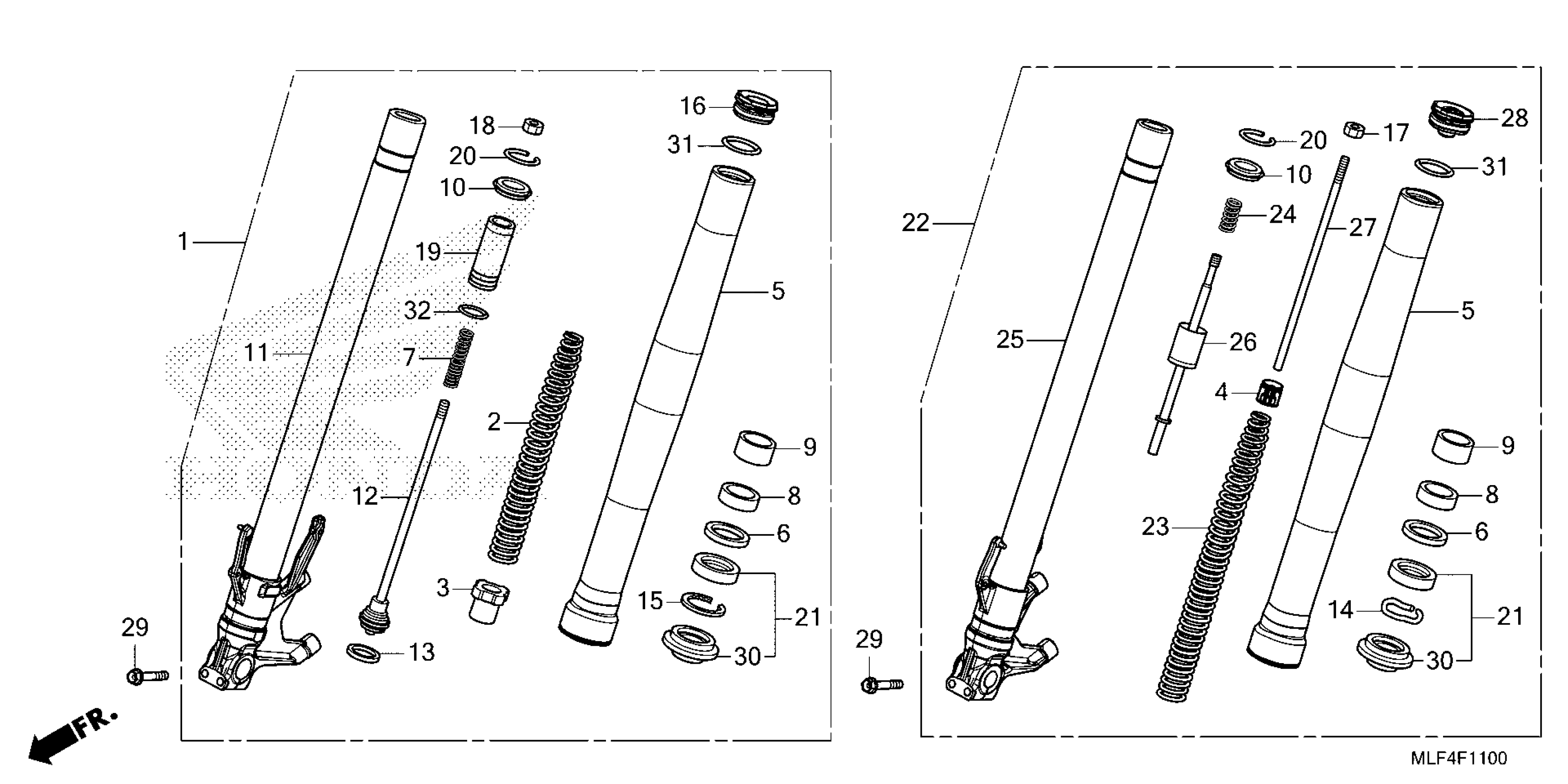

Honda NT1100DAC (25) MOTORCYCLE, JPN, VIN# JH2SC904-SK000001 TO JH2SC904-SK099999 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR.

51400-MLF-E81

$782.41

2

SPRING, R. FR. FORK (NOT AVAILABLE)

51401-MLF-E71

$64.26

3

COLLAR, R. SPRING (NOT AVAILABLE)

51402-MLF-E71

$5.16

4

COLLAR, SPRING

51404-MKJ-D01

$17.21

5

TUBE (OUTER) (NOT AVAILABLE)

51410-MLF-E71

$355.19

6

RING, BACK-UP

51412-KA4-711

$8.88

7

SPRING, R. REBOUND (NOT AVAILABLE)

51412-MLF-E71

$6.62

8

BUSH, GUIDE

51414-MFN-D01

$6.75

9

BUSH, SLIDER

51415-MFN-D01

$28.09

10

SEAT, STOPPER (NOT AVAILABLE)

51419-MLF-E71

$5.26

11

PIPE, R. SLIDE (NOT AVAILABLE)

51425-MLF-E71

$267.63

12

ROD, PISTON

51426-MLF-E81

$78.74

13

RING, PISTON (NOT AVAILABLE)

51437-MLF-E71

$4.01

14

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.31

15

CIRCLIP (INNER)

51447-MB4-003

$4.45

16

BOLT, FR. FORK (NOT AVAILABLE)

51450-MLF-E71

$58.66

17

NUT, HEX.

51451-MGP-D01

$1.76

18

NUT, HEX.

51451-MKY-D51

$12.65

19

CASE, ROD GUIDE

51455-MLF-E81

$47.44

20

RING, STOPPER

51456-KZZ-901

$9.71

21

SEAL SET, FR. FORK

51490-MFL-003

$18.22

22

FORK ASSY., L. FR. (SHOWA) (NOT AVAILABLE)

51500-MLF-E71

$761.25

23

SPRING, L. FR. FORK (NOT AVAILABLE)

51501-MLF-E71

$68.56

24

SPRING, L. REBOUND (NOT AVAILABLE)

51512-MLF-E71

$6.62

25

PIPE, L. SLIDE (NOT AVAILABLE)

51525-MLF-E71

$267.63

26

ROD (NOT AVAILABLE)

51526-MLF-E71

$79.69

27

ROD C, PUSH (NOT AVAILABLE)

51527-MLF-E71

$19.93

28

BOLT, FR. FORK

51550-MKJ-D01

$85.75

29

BOLT, FLANGE (8X45)

90109-MR7-000

Unavailable

30

DUST SEAL

91254-MEJ-013

$11.51

31

O-RING (42.2X2.4)

91258-GF4-003

$5.64

32

O-RING (35.2X2.4)

91356-KA4-711

$3.59
