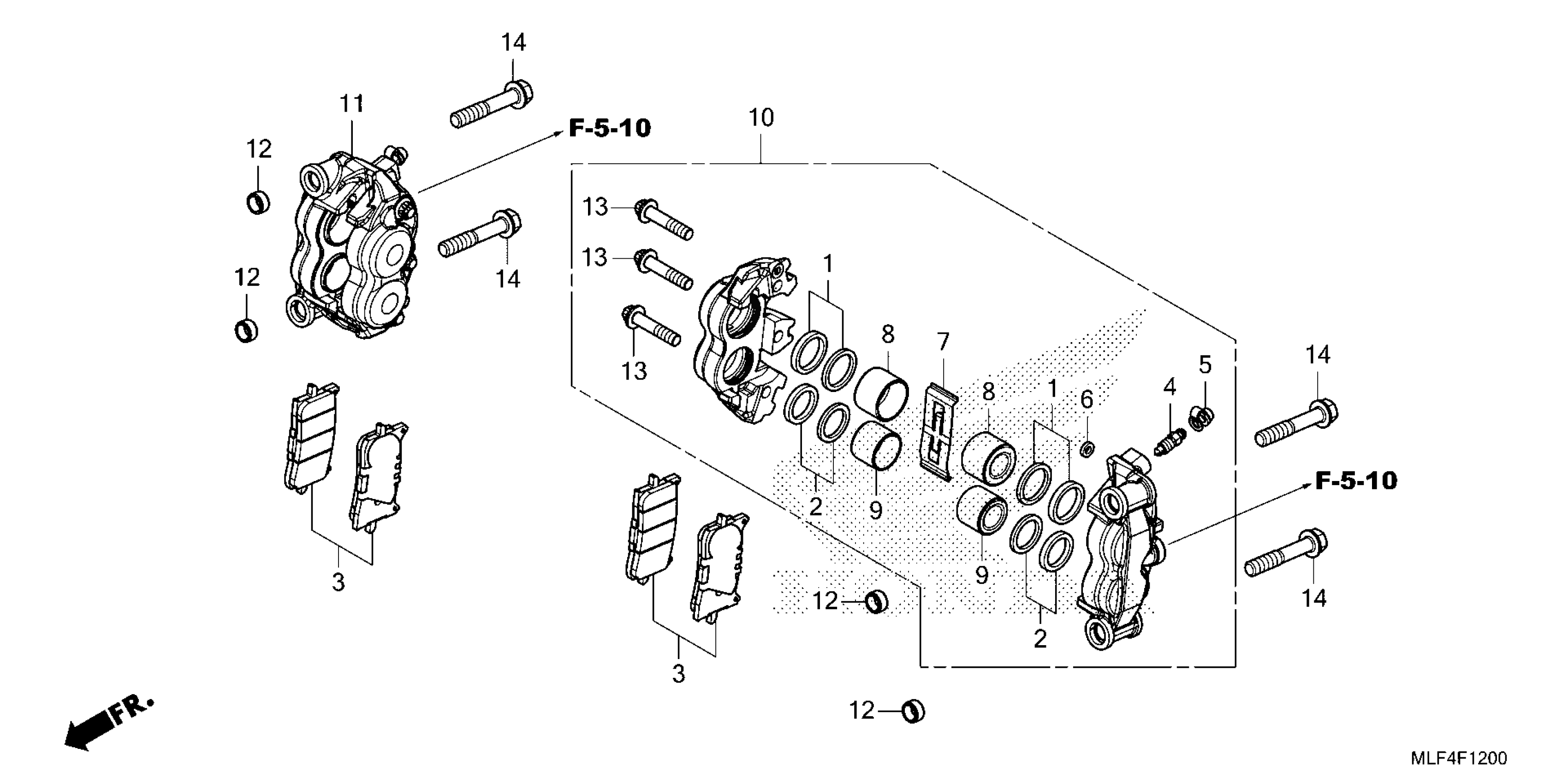

Honda NT1100DAC (25) MOTORCYCLE, JPN, VIN# JH2SC904-SK000001 TO JH2SC904-SK099999 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON

06451-MCZ-006

$5.81

SEAL SET, PISTON

06452-MCZ-006

$5.81

PAD SET, FR.

06455-MKK-D01

$55.57

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

SEAL, JOINT (NISSIN)

45103-MR7-006

$3.72

SPRING, PAD

45106-MJP-G51

$8.74

PISTON A

45107-MJP-G52

$48.20

PISTON B

45117-MJP-G52

$45.26

CALIPER SUB-ASSY., L. FR. (NISSIN)

45150-MJP-G52

$448.49

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-MJP-G52

$448.49

SPACER, FR. FORK

51497-MKS-E00

$5.57

BOLT, TORX (8X38)

90104-MJP-G51

$5.08

BOLT, FLANGE (10X57) (NOT AVAILABLE)

90131-MLF-E00

$3.63
