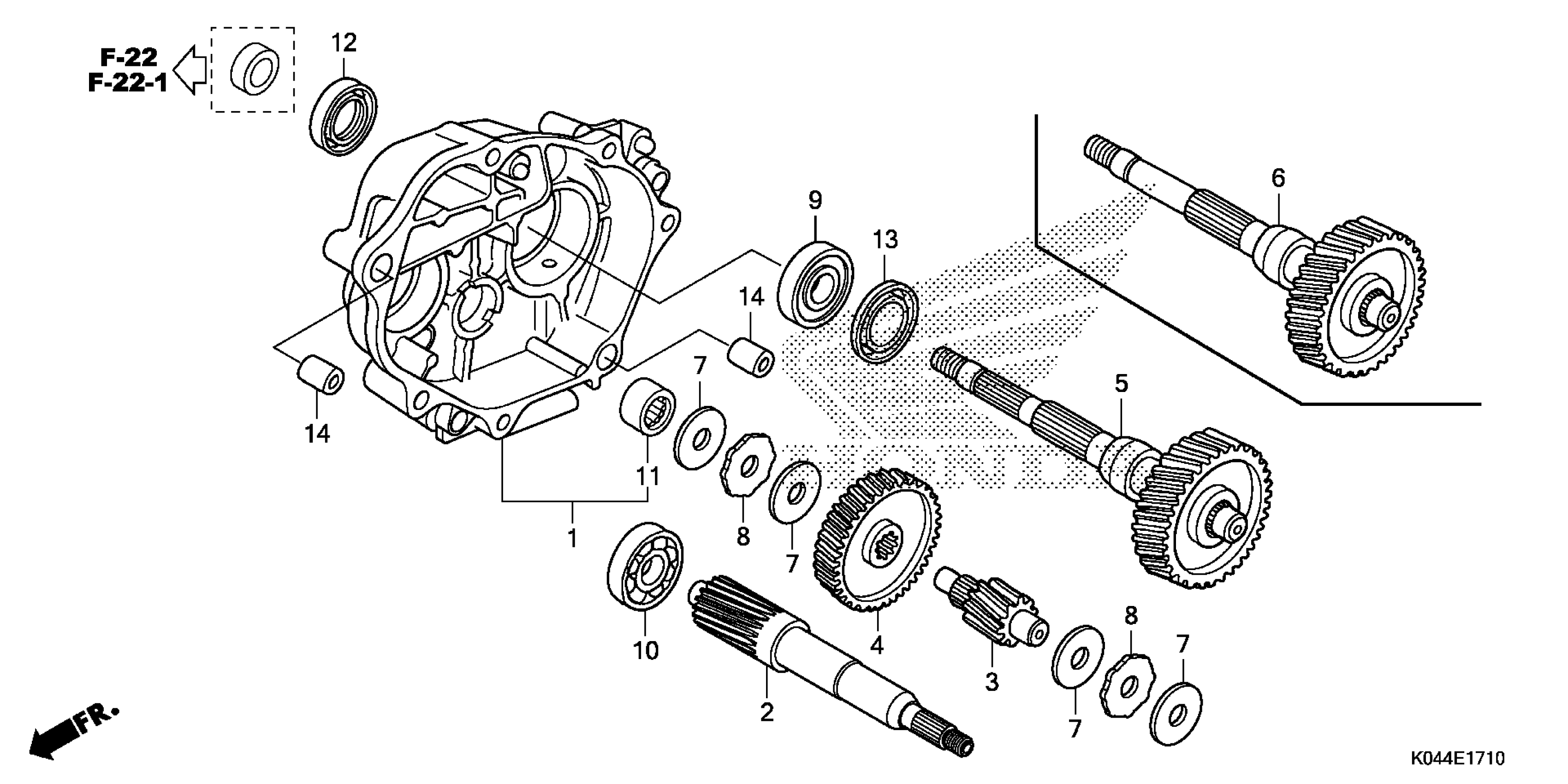

Honda NSS300AC (16) MOTOR SCOOTER, THA, VIN# MLHNF040-G5200001 TRANSMISSION Diagram

CASE, TRANSMISSION

21300-K04-930

$207.20

SHAFT, DRIVE (18T)

23411-K04-930

$42.51

COUNTERSHAFT (12T)

23421-K04-930

$37.19

GEAR, COUNTER (44T)

23422-K04-930

$34.84

GEAR, FINAL (37T)

23430-K04-900

$95.80

WASHER (14X42X1)

90411-KTW-B00

$4.90

WASHER, SIDE (14MM)

90412-K04-930

$1.55

BEARING, RADIAL BALL (6205-2NSG) (FUJIKOSHI)

91006-KAB-004

$37.20

BEARING, RADIAL BALL (6302)

91007-K04-931

$32.25

BEARING, NEEDLE (14X22X16)

91106-KM1-013

$17.42

DUST SEAL (34X46X8)

91251-KSV-J11

$16.19

OIL SEAL (34X52X5) (NOK)

91253-KM1-003

$8.36

PIN A, DOWEL (12X16)

94301-12160

Unavailable
