Description

Price

1

HINGE A, SEAT

77110-K04-930

$70.41

2

RUBBER A, SEAL

77115-K04-930

$26.94

3

HINGE B, SEAT

77121-K04-930

$14.10

4

HINGE, SEAT

77122-K04-930

$26.99

5

COVER, SEAT HINGE (LOWER)

77160-K04-930

$3.14

6

RUBBER B, SEAL

77175-K04-930

$7.77

7

RUBBER C, SEAL

77176-K04-930

$3.94

8

SEAT ASSY., DOUBLE (TYPE1)

77200-K04-930ZA

$411.49

9

COVER, SEAT HINGE

77202-K04-930

$5.70

10

CAP, HINGE NUT

77203-K04-930

$6.36

11

CUSHION, SEAT

77205-K04-930

$1.14

12

BACKREST (TYPE1)

77210-K04-930ZA

$106.07

13

COLLAR, RR. COWL SETTING

77223-K04-930

$2.75

14

GROMMET, SEAT HINGE (LOWER)

77225-K04-930

$1.14

15

CATCH, SEAT

77230-K04-930

$13.01

16

SPRING, SEAT LOCK

77234-GN2-000

$3.66

17

CABLE, SEAT LOCK

77240-K04-931

$25.49

18

DAMPER, OPENER

83590-K04-932

$112.29

19

STUD, BALL

90108-KWR-003

$5.29

20

BOLT-WASHER (8X16)

93404-08016-08

$1.70

21

SCREW-WASHER (5X16)

93891-05016-08

$1.04

21

SCREW-WASHER (5X16) This part replaces 93891-05016-18.

93891-05016-08

$1.04

22

SCREW, TAPPING (5X16)

93903-25380

$0.83

23

SCREW, TAPPING (4X12)

93903-34380

$1.93

24

NUT, FLANGE (6MM)

94050-06000

$0.59

25

NUT, FLANGE (8MM)

94050-08080

$0.86

26

WASHER, PLAIN (6MM)

94103-06000

$0.90

27

BOLT, FLANGE (8X20)

95701-08020-08

$1.43

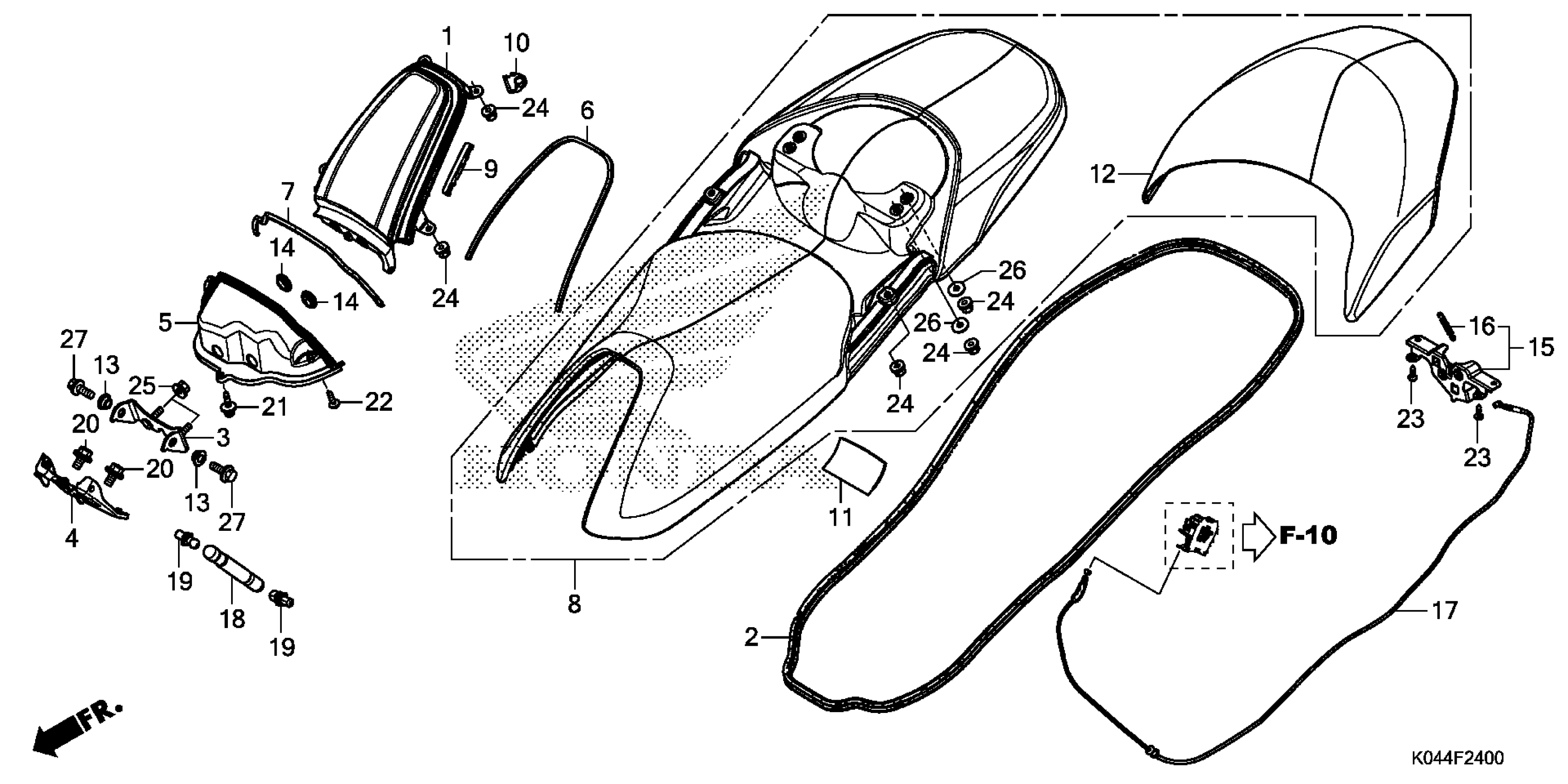

Honda NSS300AC (16) MOTOR SCOOTER, THA, VIN# MLHNF040-G5200001 SEAT Diagram
